The ARCoptix ARCLIGHT-NIR & ARCLIGHT-MIRIR are versatile broadband lamps optimized for the VIS-NIR (400 – 4,000nm) or MIR (1-25μm) spectral ranges. The light sources used in the ArcLight lamps are the brightest available, ensuring that you will achieve the best signal-to-noise ratio in your application. The lamps feature a high-end stabilized electronic power supply and a variable mechanical attenuator. They are supplied with a removable fiber coupler enabling free-space of fiber-coupled operation.
Key Features
- Broadband
- Highest intensity and color temperature
- VIS-NIR and IR versions available
- Removable fiber coupler
- Mechanical attenuator
| Product code | ARCLIGHT-NIR |
| Spectral range | 400-4,000 nm |
| Spectral range | 25,000-2,500 cm^-1 |
| Temperature | ~2850 K |
| Rated lifetime | 4,000 h |
| Lamp power | 20 W |
| Lamp type | QTH (halogen) |
| Removable fiber coupler | SMA-905 NA = 0.25 CaF2 lens |
| Output beam diameter | 12.7 mm |
| Operational temperature range | 5-40 °C |
| Attenuator | Manual iris diaphragm |
| Cooling | Forced air |
| Power requirement | 12V (100-240V AC to 12V DC converter included) |
| Dimensions | 92mm x 92mm x 43mm (without fiber coupler) 140mm x 92mm x 43mm (without fiber coupler) |
| Weight | 390 g |
| Thumb | File information |
 |
ArcLight Datasheet.pdf File Size 181.92KB |

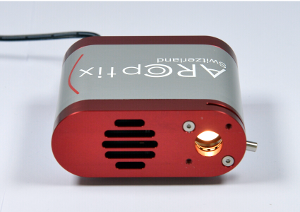

ARCoptix ArcLight NIR Light Source, 0.4-4um, Power 20W with Removeable SMA Fiber Coupler
- Brand: ARCoptix
- Product Code: ARCLIGHT-NIR
- Availability: In Stock
-
$1,995.00
