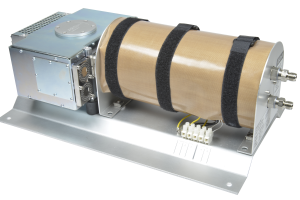

The ARCoptix GASEX OEM module represents a highly efficient, rugged and fully integrated solution for gas spectroscopy.  The OEM010 module is coupled to a low volume (0.2L) heated (up to 200°C) gas cell, in which light experiences multiple reflections, resulting in an integrated optical path of 5m with more than 50% transmission. The cell's internal optics is rhodium and gold coated, making it extremely resistant against most chemicals including acid gases such as HF, HCl, HBr.

Working principle:  The Gasex System consist of an interferometer module including also the MCT detector and an IR light source and a Multi-reflection gas cell. The light is produced by a black body radiation module and modulated by a dual corner cube interferometer. The light is then coupled into the Gas cell (where the gas to be analyzed is injected) where it is reflected back and forth 32 times. Finally the light focused on the MCT detector.

The following parts are the accessories for the GASEX modular and can be ordered separately.

Typical Applications

• Ambient air (environmental and pollution) monitoring;

• Continuous emissions monitoring (CEM);
• Exhaust emissions;
• Combustion monitoring;
• Food processing;
• Security and defense;
• Fire fighting;
• Cement kilns;
• Toxic gas detection;
• Petrol-chemistry;
• Process monitoring and control in chemical industry;
• Mining;
• Aeration control;
• Laboratory practice;
• Agriculture;
• Aerospace;
• Medical devices;
• Forensic science;
• Work safety and security;
• Bio sciences and medicine;
