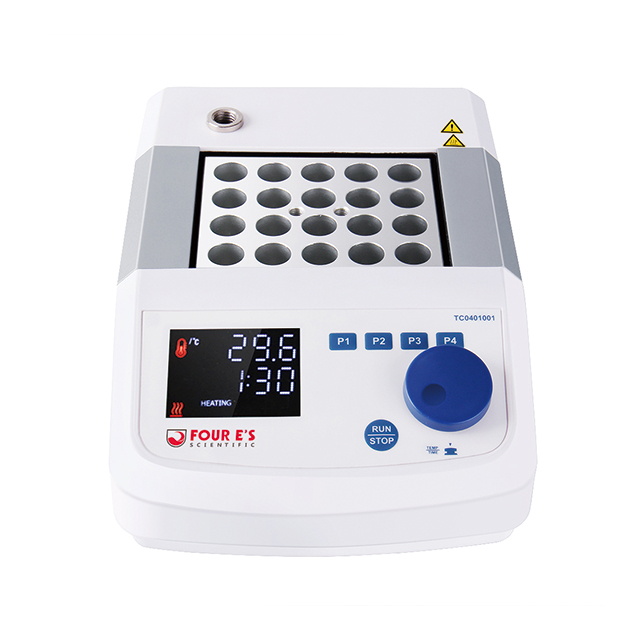

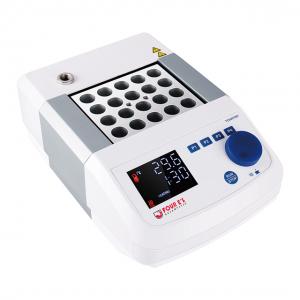

4E's Scientific Dry Bath Incubator Single Block

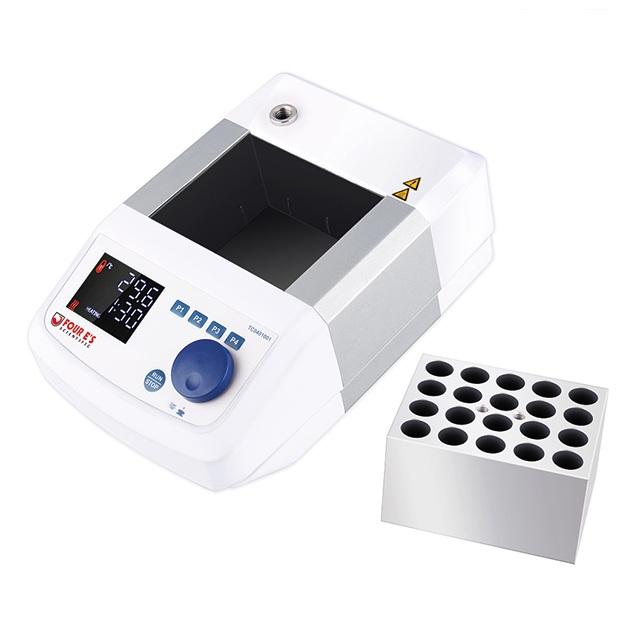

This Bath Incubator is designed for outstanding temperature control and accuracy. Digital wheel enables accurate setting of temperature and heating time. The equipment comes with a built-in temperature sensor and also an additional external temperature sensor PT1000. When PT1000 is connected, the internal temperature sensor will disconnect automatically, enabling the temperature control and display to rely on the external temperature sensor. Interchangeable aluminum alloy blocks provide versatility in applications.

Key Features

LED display for easy reading
3D digital wheel adjustment of time and temperature
Adjustable temperature is up to 150°C
High temperature stability is up to ±0.2°C
Machined aluminum heating unit allows for highly precise control of temperature

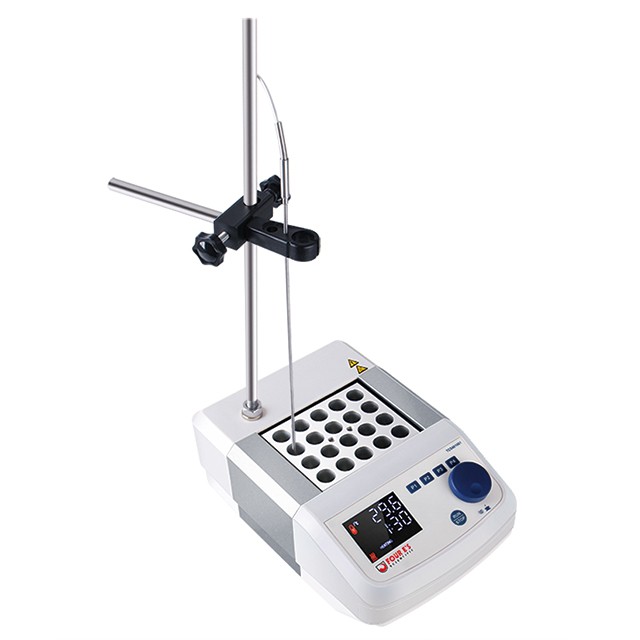

Included PT1000 temperature sensor allows temperature control directly in the sample vessel.
Adjustable timing range of 1min to 99h59min
Fixed safety circuit
Error code display
Various applications with different blocks
Automatic calibration with external PT1000 temperature sensor

Typical Applications

Widely used in sample preparation, enzyme preservation, enzyme-substrate reactions, DNA amplification, electrophoresis gel degeneration and serum coagulation

These items are included in the box:

Main unit (1)
Power cable (1)
Thread handle (1)
External temperature sensor PT1000 (1)
User manual (1)

Model	DBI200101
Number of blocks	1
Heat output [W]	165
Heating temperature range [°C]	room temp. +5° - 150
Temperature display	LED
Adjustment and display resolution [K]	0.1
Connection for ext. temperature sensor	DIN 12 878
PT 1000 variation; DIN EN 60751 Kl. A [K]	<= ± (0,15 +0,002 x ITI)
Temperature stability within the blocks<60°C * [±°C]	0.2
Temperature stability within the blocks> 60°C * [±°C]	0.2
Temperature Uniformity < 60°C * [K]	0.2
Temperature Uniformity > 60°C * [K]	0.2
Heating rate / Heat up time with external sensor * [K/min]	5
Set-up plate material	Aluminum alloy
Set-up plate dimensions [mm]	96 x 76
Fixed safety circuit [°C]	180
Timer	Yes
Time setting range	1 min - 99h 59 min
Dimensions (W x H x D) [mm]	152 x 86 x 190
Weight [kg]	1.5 Kg
Permissible ambient temperature [°C]	5 - 40
Permissible relative humidity [%]	80
Protection class according to DIN EN 60529	IP 21
Voltage [V]	200 - 240 / 115
Frequency [Hz]	50/60
Power Input [W]	165
