ASP-SY-01 is a compact OEM pump module designed to handle precision liquid handling application. The applicable syringes are special designed glass syringes from 25 uL to 5mL. The new syringe pump communicates through RS- 232, RS-485 or CAN interfaces, with multi-pump arrangements of up to 15 pumps in one group, supports group control and individually addressed.  The  pump is ideal for auto pipetting, sample dilution or mixing and/or sample dispensing in analytical instruments.


Key Features

  • Fully automated sampling, mixing, and dispensing
  • High flow rate accuracy: 1% (rated stroke)
  • Simple OEM integration with functional instruments
  • Chemical resistant  wetting materials
  • Output pressure and clog sensing function
  • Holds syringes with volumes ranging from 0.025 mL to 5 mL
  • Linear speed: 0.017 mm/s to 5 mm/s (ID water as media tested)
  • Max resistance:  0.68 MPa
  • Rotary vale and accessories are included (multiple valve options)
  • RoHS an CE compliance document
  • Pump speed ranges from 6- 1800 seconds (30 mins) per stroke
  • 12000 full steps per full stroke of 30 mm
  • RS232/RS485/CAN communication available
  • Voltage/current: 24VDC/3A

Typical Applications

  • Precision liquid handling or delivery
  • Integration with analytical instruments for sample preparation
  • Auto sampling for in vitro diagnostics (IVD)
  • Other precision metering applications (mass spectrometer, flow cytometer)





Pump Model                        ASP-SY-01-30
Main Specification
Accuracy≤ 1.0% (syringe ≥ 1mL)
PrecisionCV≤ 0.05% at full stroke (with syringe ≥ 1mL)
Wetted MaterialBorosilicate glass, PTFE, PFA, CTFE, ETFE, UHMW-PE

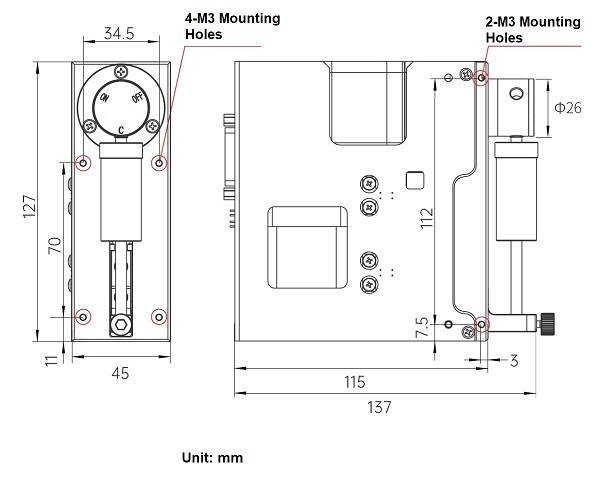

Dimension (L x W X H)138 mm x 45 mm x 127 mm
Weight1.5 Kg
Power SupplyDC 24V, 3.0 A(Peak)
Syringe and Drive
Syringe Fitting1/4''-28 UNF thread
Syringe 25 uL, 50 uL, 100 uL, 250 uL, 500 uL, 1mL, 1.25 mL, 2.5 mL, 3 mL, 5 mL
Syringe MaterialBorosilicate glass, PTFE, PFA, CTFE, ETFE, PCTFE/Sapphire
Resolution (Standard mode)12000 steps in 30 mm
Travel30 mm
Time for Full Stroke6 s-1760 s
Drive SystemBall screw drive with optical encoder
Valve & Valve Drive
Turn Time≤250 ms between adjacent ports
Valve OptionsStandard 3-port valve, Optional 4-port, 7-port, 10-port
Max. Pressure0.68 MPa
Fitting1/4''-28 thread
Communication
InterfaceRS485, RS232, CAN bus, External control input and output
ProtocolData terminal, OEM protocol (serial) or CAN
Baud RateRS485 or RS232: 9600 bps, 19200 bps, 38400 bps, 57600 bps
FormatData bit: 8; Primary: none; stop bit: 1
Firmware
Topology GroupUp to 15 pumps in one group
Upgrade Firmware One Click by customer through PC utility
Homing AlgorithmPlunger home position is identified by motor stall
Microstep ModeSet microstep model for smoother motion with 48000 microsteps per stroke
Programmable ParameterProgrammable ramps, cutt-off velocity, plunger speed, backlash compensation
Environmental
Operating TemperatureRecommended: 5- 55 deg C
Operating Humidity< 80% RH, no condensation
Storage Temperature-20 deg C to 65 deg C
Storage Humidity< 80% RH, no condensation
