• Industrial Syringe Pump Integrated with Glass Syringe, Single Channel and 30mm Stroke
    Industrial Syringe Pump Integrated with Glass Syringe, Single Channel and 30mm Stroke Industrial Syringe Pump Integrated with Glass Syringe, Single Channel and 30mm Stroke Industrial Syringe Pump Integrated with Glass Syringe, Single Channel and 30mm Stroke Industrial Syringe Pump Integrated with Glass Syringe, Single Channel and 30mm Stroke

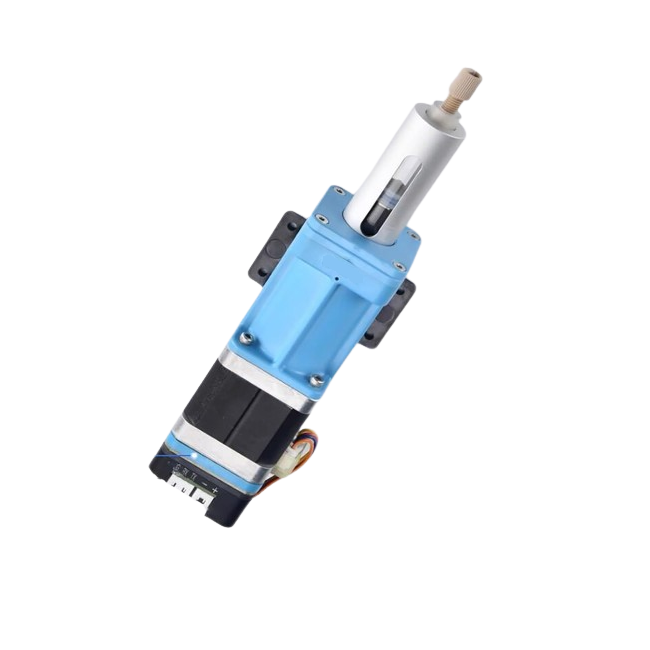

The ASP-SY0825 is a compact OEM industrial syringe pump module designed for precision liquid handling applications. This new syringe pump can communicate through RS-232, RS-485, or CAN interfaces, allowing for multi-pump arrangements of up to 15 pumps in one group. It supports group control and individual addressing, making it versatile for various automation needs.

This pump is ideal for tasks such as auto pipetting, sample dilution or mixing, and sample dispensing in analytical instruments. It is available in three volume options: 5 mL, 12.5 mL, and 25 mL. If you have any questions or require more details, please don't hesitate to reach out to our product specialist.


Key Features

  • High flow rate accuracy: ≤ 1% (rated stroke)
  • Chemical resistant  wetting materials (borosilicate glass, PTFE, PCTFE)

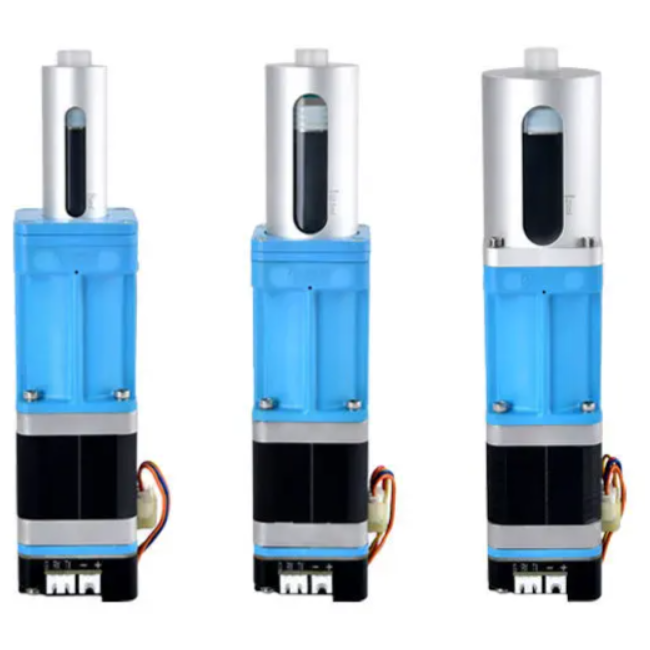

  • Three volume options:
    • 5 mL:  ID 14.55 mm
    • 12.5 mL: ID 23.03 mm
    • 25 mL: ID 32.57mm
  • Max motor speed: 600 RPM
  • Max pressure:  0.80 MPa (116PSIG)
  • Max piston drive: 100 N
  • Stepper motor: 0.9 deg/step
  • Thread pitch distance: 1mm
  • 12000 full steps (30mm)
  • Pump resolution:
    • 5 mL: 2.5µm/0.416µL
    • 12.5 mL: 2.5µm/1.042 µL
    • 25 mL: 2.5µm/2.083µL
  • RS232/RS485/CAN communication available
  • Voltage/current: 24VDC/3A
  • RoHS an CE compliance document

Typical Applications

  • Precision liquid handling or delivery
  • Pharmaceutical industry
  • Microfluidics system
  • Integration with analytical instruments for sample preparation
  • Auto sampling for in vitro diagnostics (IVD)
  • Flow injection systems and ammonia nitrogen analyzer
  • Other precision metering applications (mass spectrometer, flow cytometer)




Pump Model                        ASP-SY0825
Main Specification
Accuracy≤ 1.0% (rated stroke)
PrecisionCV ≤ 0.5% (rated stroke)
Wetted MaterialBorosilicate glass, PTFE piston, PCTFE port
Dimension (L x W X H)45 x 45 x 200 mm
Weight0.66 Kg
Power SupplyDC 24V, 3.0 A(Peak); 15 W
Syringe and Drive
Syringe Fitting1/4''-28 UNF thread
Syringe Volume5mL, 12.5 mL and 25 mL available
Syringe MaterialBorosilicate glass, PTFE piston and PCTFE threaded port
Resolution (Standard mode)12000 steps in 30 mm
Travel30 mm
Time for Full Stroke3.6- 1800 secs
Drive SystemBall screw drive with optical encoder
Max. Piston Drive100 N
Max. Pressure0.80 MPa (116 PSIG)
Lead Screw Thread1 mm
Communication
InterfaceRS485, RS232, CAN bus, External control input and output
ProtocolData terminal, OEM protocol (serial) or CAN
Baud RateRS485 or RS232: 9600, 19200, 38400, 57600, 115200 bps
FormatData bit: 8; Primary: none; stop bit: 1
Environmental
Operating TemperatureRecommended: 5- 55 deg C
Operating Humidity 80% RH, no condensation
Storage Temperature-20 deg C to 65 deg C
Storage Humidity≤80% RH, no condensation
