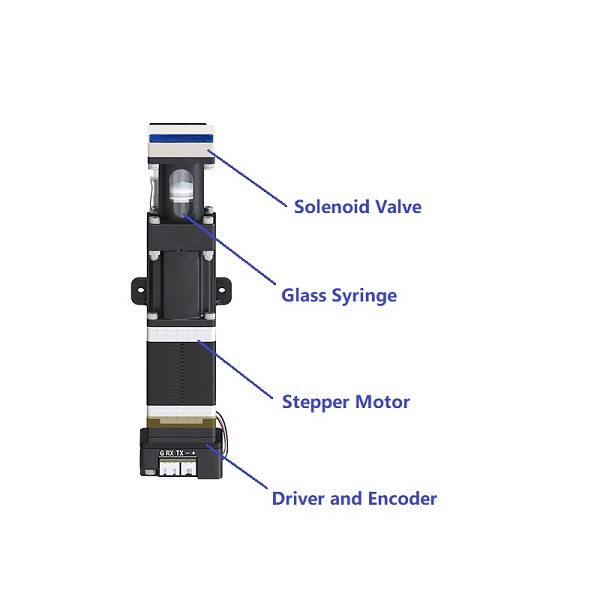

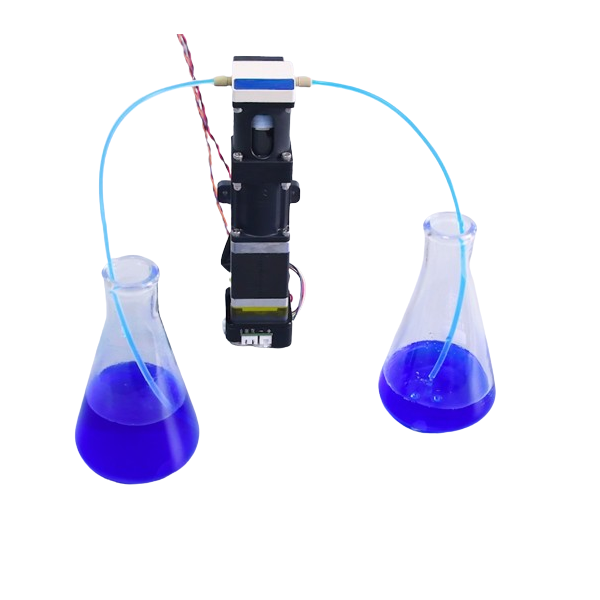

This compact OEM industrial syringe pump module is designed for precise liquid handling applications. It is compatible with specially designed glass syringes in 3.0mL and 8.0 mL sizes, with the glass syringe as an integrated, non-interchangeable part of the pump. Equipped with a drive and encoder, the pump supports RS-232, RS-485, or CAN communication interfaces. It allows for multi-pump configurations of up to 16 pumps per group, supporting both group control and individual addressing. The syringe pump comes with a 2-way solenoid valve to enable auto-pipetting, sample dilution and dispensing, reagent metering, and mixing in analytical instruments. Feel free to contact us to discuss custom solutions tailored to your needs.
Key Features
- High flow rate accuracy: ≤ 1% (rated stroke)
- Reproducibility: ≤ 0.5% (rated stroke)
- Chemical resistant wetting materials (borosilicate glass, PTFE, PCTFE)
- Three volume options:
- 3.0 mL: ID 14.55 mm
- 8.0 mL: ID 23.03 mm
- Max motor speed: 600 RPM
- Max pressure:
- 3.0 mL: 175PSIG
- 8.0 mL: 75 PSIG
- Max piston drive: 100 N
- Stepper motor: 0.9 deg/step
- 3600 full steps (18mm)
- Pump resolution:
- 3.0 mL: 5.0 µm/0.833µL/step
- 8.0 mL: 5.0 µm/2.083µL/step
- RS232/RS485/CAN communication available
- Voltage/current: 24VDC/3A ; 15W
- RoHS an CE compliance document
Typical Applications
- Precision liquid handling or delivery
- Pharmaceutical industry
- Microfluidics system
- Integration with analytical instruments for sample preparation
- Auto sampling for in vitro diagnostics (IVD)
- Flow injection systems and ammonia nitrogen analyzer
- Other precision metering applications (mass spectrometer, flow cytometer)
| Pump Model | ASP-SY200K0808 |
| Main Specification | |
| Accuracy | ≤ 1.0% (rated stroke) |
| Precision | CV ≤ 0.5% (rated stroke) |
| Wetted Material | Borosilicate glass, PTFE piston, PCTFE port |
| Dimension (L x W X H) | 50 x 50 x 175 mm |
| Weight | 0.60 Kg |
| Power Supply | DC 24V, 3.0 A(Peak); 15 W |
| Syringe and Drive | |
| Syringe Fitting | 1/4''-28 UNF thread |
| Syringe Volume | 3.0 mL and 8.0 mL available |
| Syringe Material | Borosilicate glass, PTFE piston and PCTFE threaded port |
| Resolution (Standard mode) | 3600 steps/3.0 mL; 3840 steps/8.0 mL; |
| Travel | 18.0 mm (3.0 mL); 19.2 mm (8.0 mL) |
| Time for Full Stroke | 1.8 -1080 secs |
| Drive System | Ball screw drive with optical encoder |
| Max. Piston Drive | 100 N |
| Max. Pressure | 75 PSIG |
| Lead Screw Thread | 1 mm |
| Communication | |
| Interface | RS485, RS232, CAN bus, External control input and output |
| Protocol | Data terminal, OEM protocol (serial) or CAN |
| Baud Rate | RS485 or RS232: 9600, 19200, 38400, 57600, 115200 bps |
| Format | Data bit: 8; Primary: none; stop bit: 1 |
| Environmental | |
| Operating Temperature | Recommended: 5- 55°C |
| Operating Humidity | ≤ 80% RH, no condensation |
| Storage Temperature | -20 °C to 65 °C |
| Storage Humidity | ≤80% RH, no condensation |
Industrial Syringe Pump with Integrated 8 mL Fixed-Volume Glass Syringe and Solenoid Valve
- Brand: Aurora Pro Scientific
- Product Code: ASP-SY200K0808
- Availability: Pre-Order
