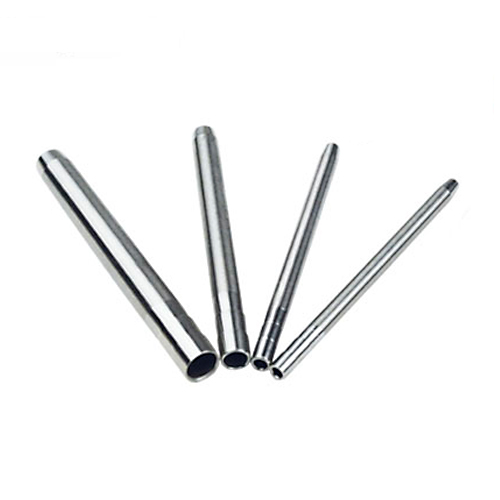

• Peristaltic Pump Filling Nozzle Set (SS304), 9 Pieces
    Peristaltic Pump Filling Nozzle Set (SS304), 9 Pieces Peristaltic Pump Filling Nozzle Set (SS304), 9 Pieces Peristaltic Pump Filling Nozzle Set (SS304), 9 Pieces

The filling nozzle set including 9 pieces of stainless steel SS304 nozzles and can be used with pump tubing in peristaltic pumps or filling/dispensing systems when dispensing certain volumes of liquid.  With outlet end is closed (with openings), the nozzle can efficiently prevent liquid splash or dripping, thus improving dispensing accuracy.   There are two options of these nozzles: uniform diameter or reduced diameter.


Key Features

  • 13# Filling Nozzles (SS304)  for silicone tubing with ID of 0.8 mm
  • 14# Filling Nozzles (SS304) for silicone tubing with ID of 1.6 mm
  • 19# Filling Nozzles (SS304) for silicone tubing with ID of 2.4 mm
  • 16# Filling Nozzles (SS304) for silicone tubing with ID of 3.2 mm
  • 25# or 15# Filling Nozzles (SS304) for silicone tubing with ID of 4.6 mm
  • 17# or 24# Filling Nozzles (SS304) for silicone tubing with ID of 6.4 mm
  • 18# or 35# Filling Nozzles (SS304) for silicone tubing with ID of 7.9 mm
  • 36# or 73# Filling Nozzles (SS304) for silicone tubing with ID of 9.6 mm
  • 82# Filling Nozzles (SS304) for silicone tubing with ID of 12.7 mm

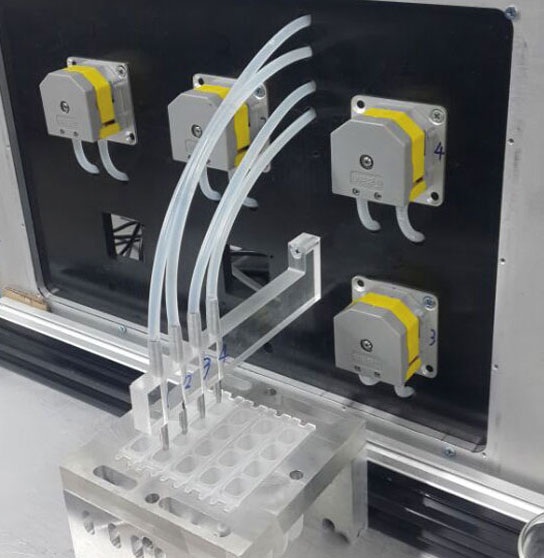

Typical Applications

  • Filling and dispensing systems
  • Peristaltic pumps


Nozzle TypeUniform diameter
Length100 mm
MaterialSS304
InletBarb fitting
OutletOpenings
Tubing Size13#, 14#, 19#, 16#, 15(25)#, 17(24)#, 18(35)#, 26(73)#, 82#
