These Disposable Ultrafiltration Units offer maximum sample recovery using a low absorption polysulfone membrane.

MWC: 10kDa, 50kDa, 200kDa
Easy to use: simple operation requires only syringe pressurization
Concentrate samples <2mL with built-in polysulfone membrane.
Clear housing enables visual confirmation of filtration process.

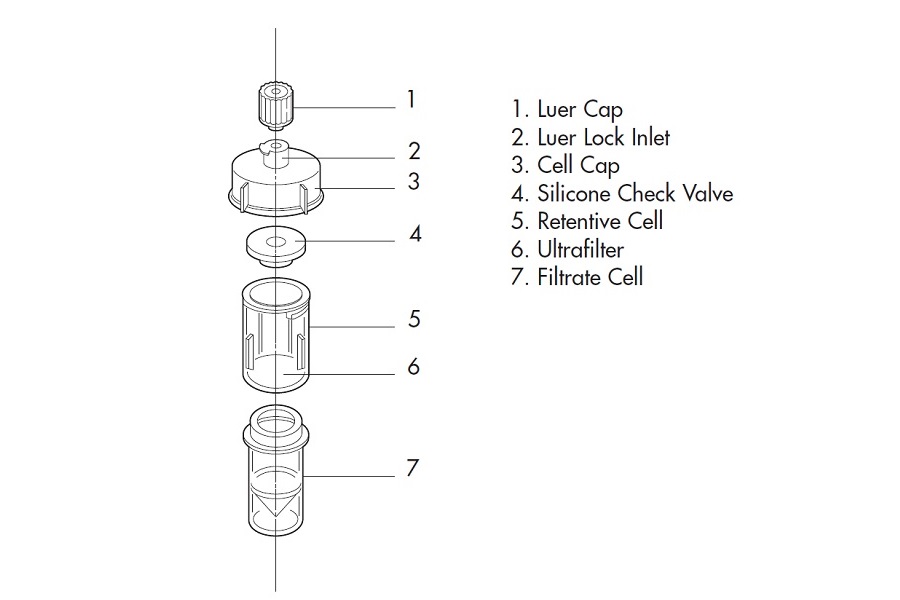

Operation: Dispense sample into retentive cell by pipet. Secure cap. Using a syringe, pressurize the unit with air. When filtration is complete, disassemble unit and concentrated sample/filtrate can be analyzed. See datasheet for more details.

Key Features

Concentrate samples with built-in polysulfone ultrafilter
Easy to use units require only syringe pressurization
Clear housings enable visual confirmation of the filtration process
Low adsorption for maximum sample recovery
Disposable units for simple operation and clean-up

Typical Applications

Biomolecules pre-concentration
Sample clean for Mass spectrometer

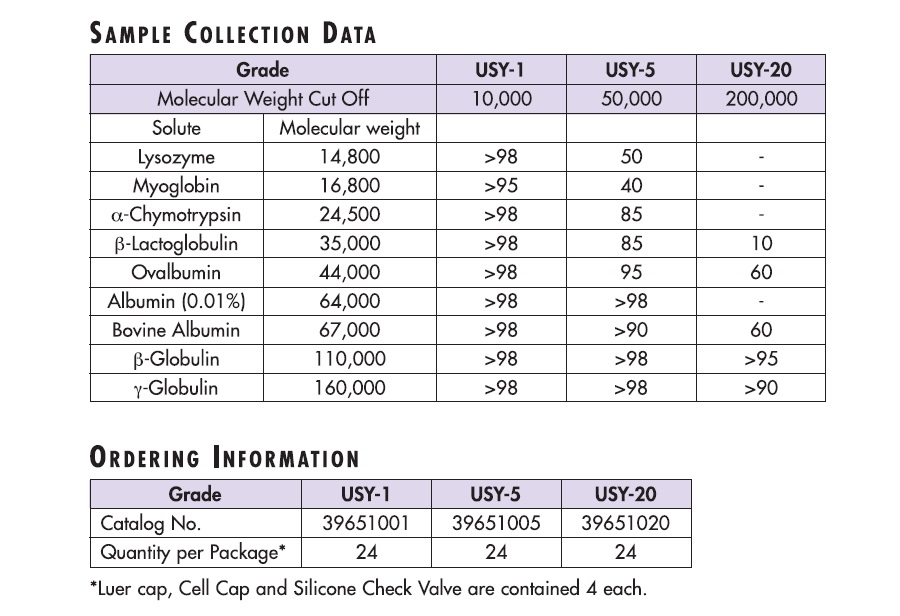

Molecular Weight Cutoff	10K (USY-1); 50K (USY-5); 200K (USY-20)
Filtration Diameter	16mm
Effective Filtration Area	2.0 cm^2
Cell Capacity	2.0 mL
Minimum Sample Volume	0.5mL
Maximum Temperature	50 degree C
Maximum Pressure	0.29MPa
Materials	Polysulfone (Filter); Acrylic (cells) and Polypropylene (Caps)
Sterilization	25% Ethanol or 5% Formalin

Thumb	File information
	Disposable Ultrafilter Unit Specification.pdf File Size 565.26KB

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Please complete the captcha validation below

Advantec Disposable Ultrafilter Units

Brand: Advantec
Product Code: ASP-USY-1520
Availability: In Stock

Available Options

Advantec Disposable Ultrafiltration

USY-1, 39651001, Quantity 24/Pk (+$112.55)

USY-5, 39651005Quantity 24/Pk (+$112.55)

USY-20, 39651020, Quantity 24/Pk (+$112.55)

Centrifugal Ultrafilter Unit (+$237.45)

CAPS FOR DISP. ULTRAFILTER UNIT, 4/PK (+$12.24)
