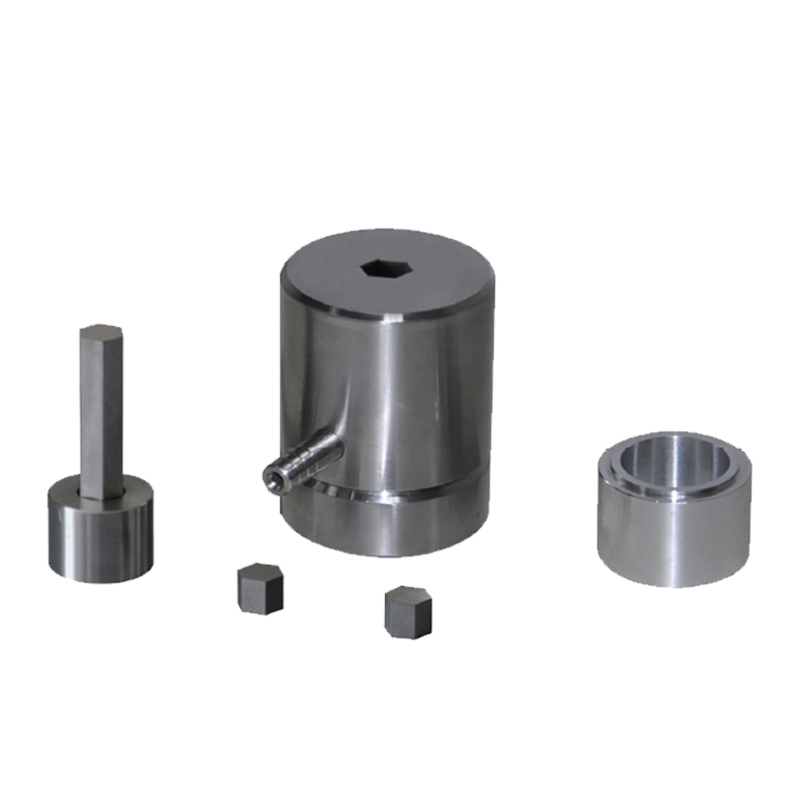

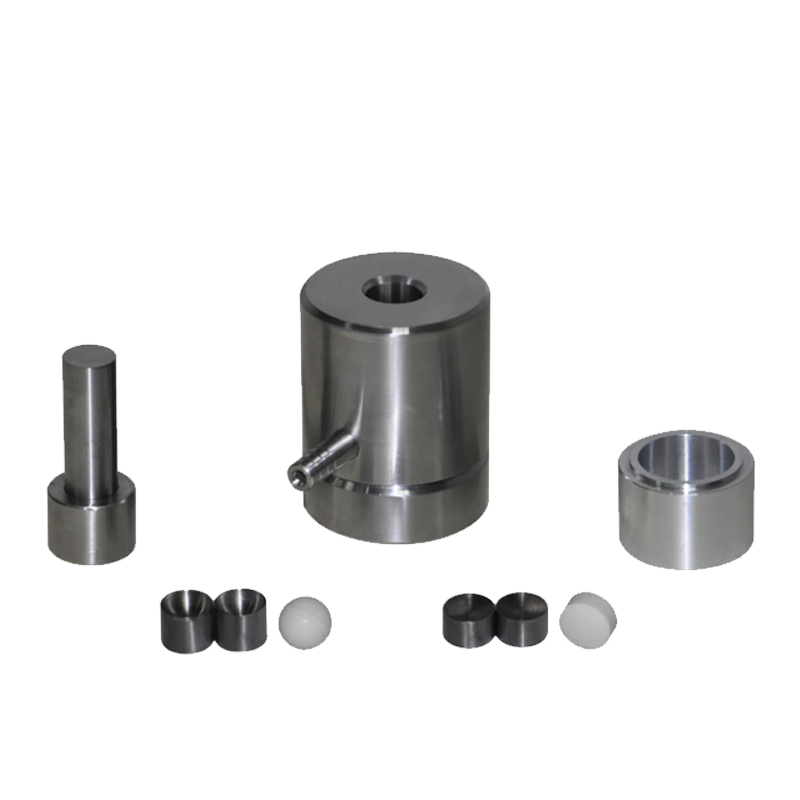

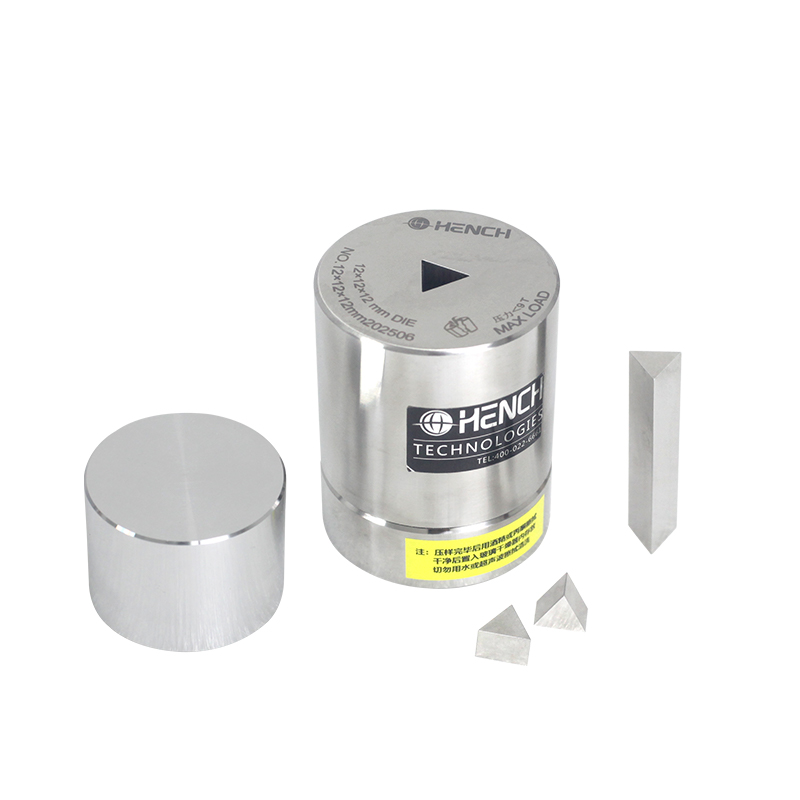

Dry Pellet Pressing Die Set is designed for compressing powders into high-density pellets for FTIR, XRF, and laboratory material analysis. Manufactured from high-hardness carbon tool steel, the die set provides reliable and repeatable pellet formation for ceramic powders, metal powders, catalysts, minerals, battery materials, pharmaceuticals, and advanced research materials. Available in diameters from 3 mm to 100 mm, with custom shapes and sizes available upon request.

Key Features

High hardness carbon steel
Diverse sizes from 3mm-100mm

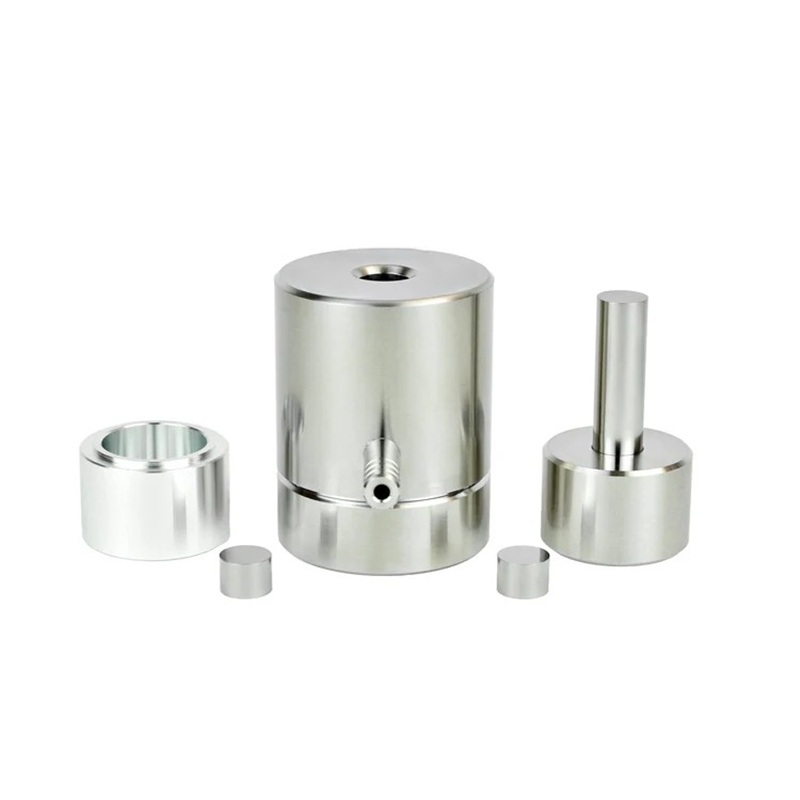

Set Includes: 1 Die Sleeve, 1 Plunger Rod, 1 Base Plate, 1 Release Ring, and 2 Spacers

Typical Applications

Powder sample preparation
Battery, superconductor, cement, ceramics, catalysis, silicate, powder metallurgy, sea mud analysis, biochemical analysis, and new materials research.
Calcium and iron analyzer, FTIR, XRF analysis

Model	PMAC-A	PMAC-B	PMAC-C	PMAC-D	PMAC-E
Material	ASSAB17	Cr12MoV	Cr12MoV	Cr12MoV	Cr12MoV
Indenter hardness	HRC68-HRC70	HRC60-HRC62	HRC60-HRC62	HRC60-HRC62	HRC60-HRC62

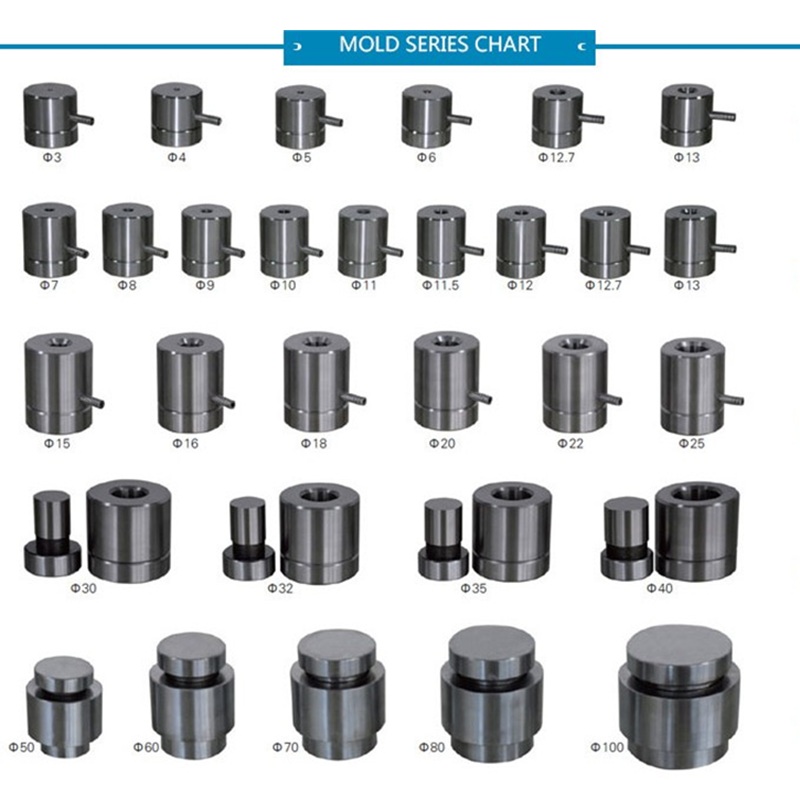

Sample size (mm)	φ3/φ4/φ5/ φ6/φ8/φ10	φ12/φ13/φ15/ φ18/φ20	φ30/φ40	φ50/φ60	φ70/φ80
Cavity depth	30 mm	40 mm	50 mm	55 mm	60 mm
External dimension	φ43×93 mm	φ53×120 mm	φ73×133/ φ95×133 mm	φ115×150/ φ127×150 mm	φ153×180mm/ φ180×180 mm
Weight (Kg)	0.75	1.2	3.8/6.3	14/20	30/40
