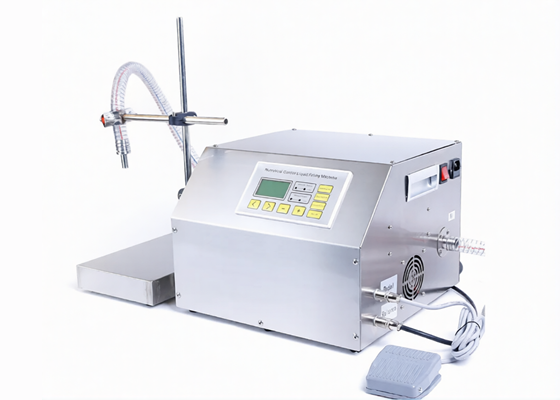

The single-channel dispensing and filling system ASP-DISP01D is a compact, automatic liquid filling system engineered for high precision and hygienic operation. Equipped with magnetic gear pump and nozzles (SS316), it ensures accurate dosing while maintaining complete fluid isolation to prevent contamination. Its space‑efficient desktop design supports continuous, stable production across pharmaceutical, cosmetic, essential oil, and daily chemical applications.  Please feel free to contact us at sales@auroraprosci.com for customizing your applications.

Key Features

• Two working modes: automatic and pedal switch (semi-automatic)
• Filling volumes:  150 mL-18 L for low viscosity liquid (such as juice, milk, ink, beverage, cosmetic etc.)
• Max. flow rate for each channel: 18 L/min
• Max. suction height:  13 ft
• Weight range: 150 g - 100 Kg
• Weight cell size:  250 x 180 x 40 mm
• Filling accuracy:  ≤±0.5% (water)
• Suitable liquid temperature ＜90℃
• Comes with a 12mm and 19mm OD filling nozzle, with options for different nozzle sizes available.
• Features a simple touchscreen control panel where filling volume is adjusted by changing filling time and speed.
• Power consumption: 550W

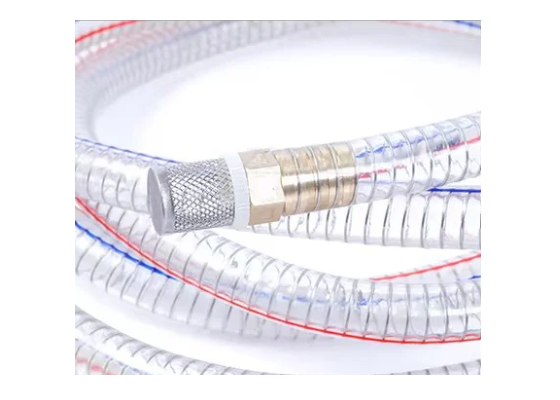

• Footswitch and inline filter are included.

Typical Applications

• Precision liquid handling or delivery
• Bio-lab applications
• Pharmaceutical filling machines
• Medicine, cosmetics industry
• Food and beverage dispensing
• Essential oil, daily chemicals
