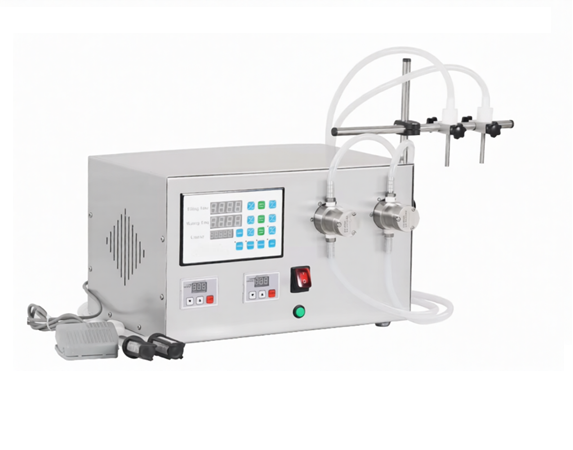

The dual-channel dispensing and filling system ASP-DISP02B is a compact, fully automatic liquid filling system engineered for high precision and hygienic operation. Equipped with magnetic gear pump and nozzles (SS316), it ensures accurate dosing while maintaining complete fluid isolation to prevent contamination. Its space‑efficient desktop design supports continuous, stable production across pharmaceutical, cosmetic, essential oil, and daily chemical applications. Please feel free to contact us at sales@auroraprosci.com for customizing your applications.

Key Features

Filling volumes: 10-500 mL for low viscosity liquid (such as juice, milk, ink, beverage, cosmetic etc.)
Max. flow rate for each channel: 6,000 mL/min
Dual-channel (individually controlled)
Filling accuracy: ≤±0.5% (water)
Comes with a 4mm OD filling nozzle, with options for different nozzle sizes available.
Features a simple touchscreen control panel where filling volume is adjusted by changing filling time and speed.
Power consumption: 60W
Footswitch and inline filter are included.

Typical Applications

Precision liquid handling or delivery
Bio-lab applications
Pharmaceutical filling machines
Medicine, cosmetics industry
Food and beverage dispensing
Essential oil, daily chemicals

Model	ASP-DISP02B
Filling Range	10-500
Maximum Flow	6,000 mL/min per nozzle (DI Water at RT)
Number of Filling Nozzles	2 (customizable)
Pump Used	Magnetic gear pump (SS316)
Filling Accuracy	≤ ±0.5% (water)
Nozzle Diameter	4 mm or 6 mm
Delay Range	0.01–999.9 s
Conveyor Size	1200 mm (length) x 100 mm (width) or 600 mm (length) x 100 mm (width)
Machine Size	Approx. 800 × 490 × 500 mm (including conveyor), 13Kg

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Please complete the captcha validation below

Magnetic Gear Pump, Liquid Dispensing & Filling System ASP-DISP02B, Two Pump Heads

Brand: Aurora Pro Scientific
Product Code: ASP-DISP02B
Availability: In Stock

$1,149.80

Qty

0 reviews / Write a review
