The sonic level sensor system employs a sound wave transmitter installed in the reservoir’s cap to accurately measure the level of the solvent in the reservoir or the waste container.  The sonic signals are converted into an electrical signal indicating the liquid level in the waste container or the solvent reservoir.

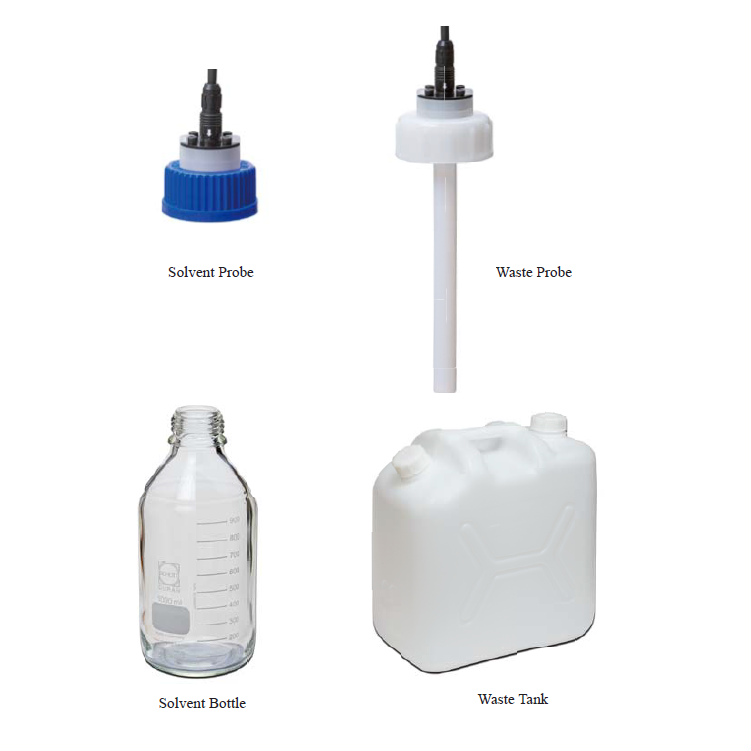

The Sonic reservoir liquid level sensor is applicable for most solvents used for LC separations and used for safe and continuous monitoring of reagent depletion and preventing waste container from overflowing.  This helps to prevent LC system failure when solvent level becomes critical.   The solvent probes and waste probe are optional and can be configured to meet your requirements.  Accessories can be ordered separately.

Key Features

• Useful to check liquid levels in both solvent bottles and waste tanks
• Liquid level displays
• Alarm sounds when volume falls to about 10%
• Remote control thru RS-232C interface (option)
• Simple, one-touch connections

Typical Applications

• Medical and laboratory equipment

• Hydraulic and lube reservoirs
• HPLC
