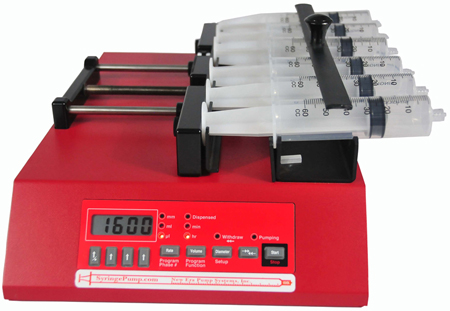

This versatile syringe pump is perfect for a wide range of laboratory applications, including precise fluid dispensing, microfluidics, and automated laboratory processes. Its compact design, advanced features, and exceptional precision make it a valuable addition to any laboratory or production bench.

It holds 2, 4, or 6 syringes of up to 140 mL each. It offers an advance per step of 3.96 nanometers, making it ideal for precise fluid handling. The pump holds two syringes up to 60 mL and features infusion rates ranging from 0.452 µL/hr (using a 1.0 mL syringe) to  1451 µL/min (using a 60 mL syringe).

Key Features:

• Precision Dispensing: +/- 1.0% accuracy and +/- 0.2% reproducibility.
• Infusion & Withdrawal: Supports both infusion and withdrawal operations.
• Max. Linear force: 160 lbs (72.6 kg) at min speed and 30 lbs (13.6kg) at maximum speed.
• Advanced Programming: Up to 41 pumping phases for changing rates, setting volumes, inserting pauses, and more.
• Smooth Linear/Gradient Pumping: Includes the X Upgrade feature for smooth linear/gradient increasing and decreasing pumping.
• Network Capability: Network, control, and monitor up to 100 pumps with a single computer via RS-232 bi-directional control.
• User-Friendly Interface: Easy-to-use keypad interface and one-click program upload.
• Space-Saving Design: Compact chassis footprint of only 5 3/4" x 8 3/4".
• Automation Ready: Fully programmable and compatible with optional foot switches or external sensors.
• Power Supply: Operates from the included 12VDC power supply.
• Unlimited Support & Warranty: Includes a two-year warranty and unlimited lifetime technical support.

Additional Features:

• Motor Stall Detection: Ensures uninterrupted operation.
• Calibration Function: Provides better precision with an error rate of less than 3%.
• Slow-Down & Anti-Drip Modes: Improve dispensing control.
• Global Compatibility: Worldwide power supplies available.
• No Contact with Liquid: Ensures the liquid does not contact the pump directly.
• Disposable, Glass, Stainless Steel Syringes: Compatible with various syringe types and plumbing supplies (sold separately).
• Flow Rates: Capable of continuous pumping up to 1000 mL/min with adjustable flow rates.
• Whether integrated into existing production lines or used as a standalone unit, this microfluidic syringe pump is designed to enhance efficiency and precision in any laboratory setting.

Typical Applications

• Precision liquid handling or delivery
• Liquid handling with high accuracy at a small flow rate
