Maximum engraving area: 18" x 12". The Legend Series of Epilog Legend Laser Engravers features Epilog's top-of-the-line CO2 laser systems that are utilized by customers to perform the highest-quality engraving and cutting of wood, acrylics, plastics, glass, stone, and much more.
Key Features
- Maximum engraving area: 18" x 12"
- Integrated cutting table: Providing excellent cutting quality with the vector cutting table
- AccupointTM motion control system: Enabling high-detail engraving, even at the highest speeds
- Integrated vacuum table: Holding down thin, warped materials at positions
- Robust level engraving table: Ensuring flat, even engraving across the work surface with the 1'' (25.4 mm) thick engraving table
- Radiance high resolution optics: No additional, expensive lens packages are needed for the high-resolution engraving
- CO2 waveguide laser tubes from Epilog
- Memory in the machine: Improving job management and data integrity with the 64-MB RAM in every system
- Auto focusing: Automatically setting up the correct table height for focusing the lens to achieve the optimal-detail engraving
|
|
Epilog Mini 18 |
Epilog Mini 24 |
Epilog Helix 24 |
|
Engraving Area |
18"
x 12" |
24"
x 12" |
24"
x 18" |
|
Maximum Material Thickness |
4" (102 mm) |
5.5" (140 mm) |
8.5" (216 mm) |
|
Maximum Material Thickness with Table Removed |
6"
(152 mm) with 17.5" x 10" |
8"
(203 mm) with 23.5" x 11.75" |
11"
(279 mm) with 23.5" x 17" |
|
Laser Wattage |
30 or 40 watts |
30, 40, 50 or 60 watts |
30, 40, 50, 60 or 75 watts |
|
Laser Source |
State-of-the-art, digitally controlled, air-cooled CO2 laser tubes are fully modular, permanently aligned and field replaceable. |
|||
Intelligent Memory Capacity |
Multiple file storage up to 64 MB. Rolling buffer allows files of any size to be engraved. |
|||
Air Assist |
Attach an air compressor to our included Air Assist to remove heat and combustible gases from the cutting surface by directing a constant stream of compressed air across the cutting surface. |
|||
Laser Dashboard |
The Laser Dashboard™ controls your Epilog Laser's settings from a wide range of software packages - from design programs to spreadsheet applications to CAD drawing packages. |
|||

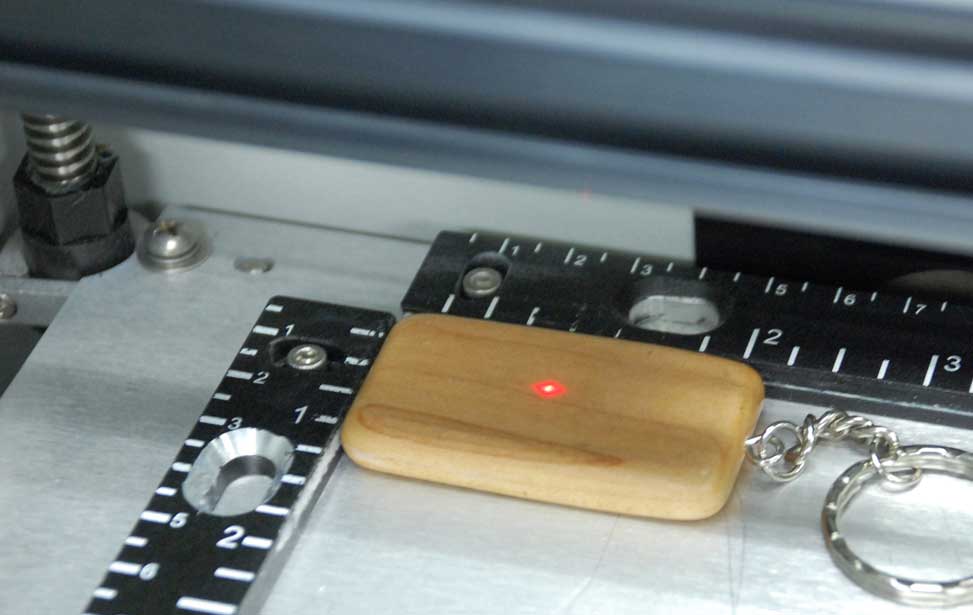

Red Dot Pointer |
Since the laser beam is invisible, the Red Dot Pointer on Epilog's Mini and Helix Lasers allows you to have a visual reference for locating where the laser will fire. |
|||
Relocatable Home |
When engraving items that are not easily placed at the top corner of the laser, you can set a new home position by hand with the convenient Movable Home Position feature on the Legend Series Lasers. |
|||
Operating Modes |
Optimized raster, vector or combined modes. |
|||
Motion Control System |
High-speed, continuous-loop, DC servo motors using linear and rotary encoder technology for precise positioning. |
|||
X-Axis Bearings |
Ground and polished stainless steel NeverWear Bearing System. |
|||
Belts |
Advanced B-style Kevlar Belts. |
|||
Resolution |
User controlled from 75 to 1200 dpi. |
|||
Speed and Power Control |
Computer or manually control speed and power in 1% increments to 100%. Vector color mapping links speed, power and focus to any RGB color. |
|||
Print Interface |
10 Base-T Ethernet or USB Connection. Compatible with Windows® XP/Vista/7/8/10. |
|||
Dimensions |
27.8"
x 26" x 13.5" |
34.5"
x 26" x 16" |
36.5"
x 32" x 39.8" |
|
Weight |
70
lbs (32 kg) |
90
lbs (41 kg) |
180 lbs (82 kg) |
|
Electrical Requirements |
Auto-switching power supply accommodates 110 to 240 volts, 50 or 60 Hz, single phase. |
|||
Maximum Table Weight |
The Mini has a static table weight of 50 lbs (22.7 kg) and a lifting table weight of 25 lbs (11.5 kg). |
The Helix 24 has a static table weight of 70 lbs (32 kg) and a lifting table weight of 30 lbs (14 kg). |
||
Normal Sound Level |
59 db |
59 db |
62 db |
|
Ventilation System |
350 - 400 CFM (595-680 m3/hr) external exhaust to the outside or internal filtration system is required. There is one output port, 4" in diameter. |
|||
