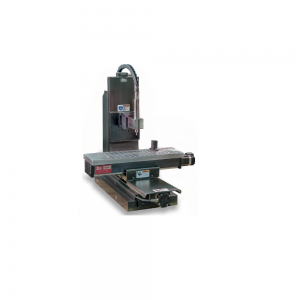

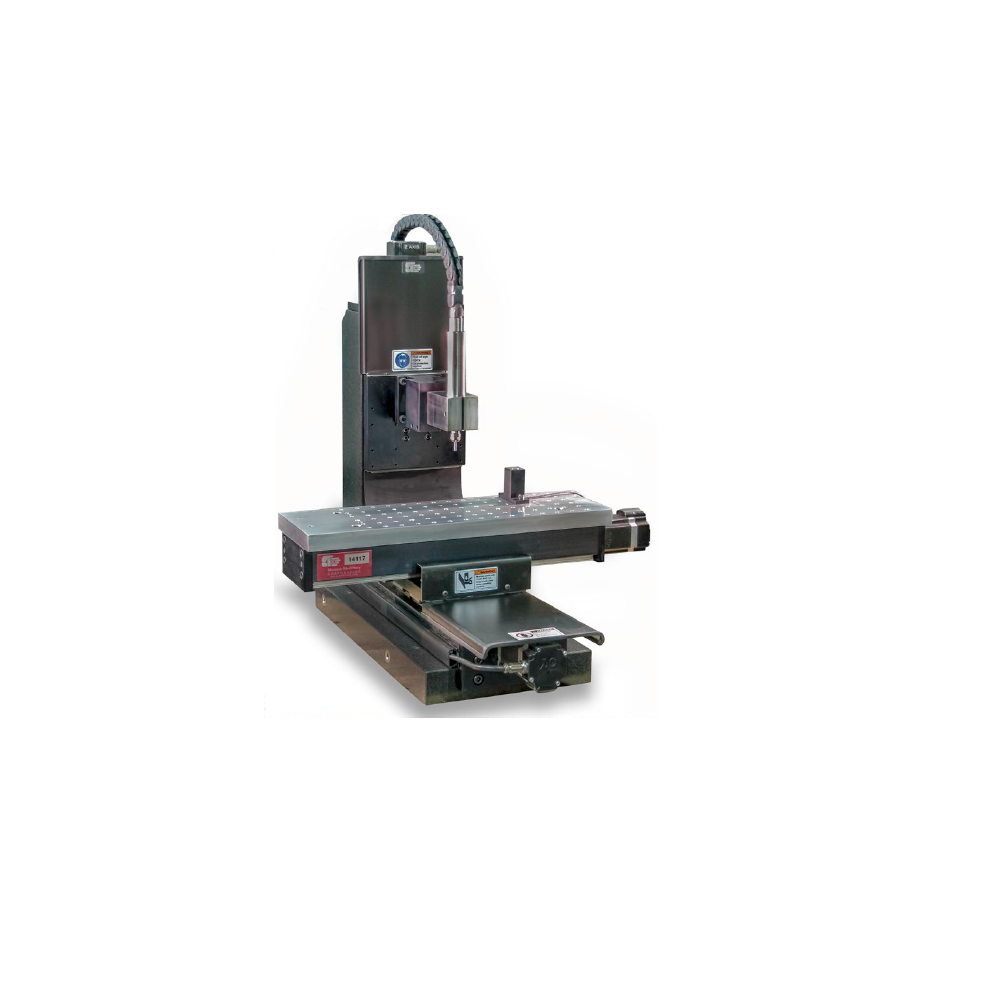

The Minitech CNC Mini-Mill/GX is an affordable precision-ground, granite frame, micro machining system.  The machine features LM Guides with caged ball technology and 60,000 RPM spindle. THK Caged Technology employs a synthetic resin cage with a patented curvature that cradles each ball and separates it from the next one. The spaces between the rolling elements retain grease and act as a lubrication system.  The natural granite construction offers excellent stability and strength along with a high degree of vibration dampening as well as thermal stability. The Mini-Mill/GX is available as a standard three axis machine with optional 4th Axis Rotary Stage, or 5 Axis Trunnion Table. ​Machines can be modified to meet your specific needs.

Key Features

• ​60,000 RPM spindle

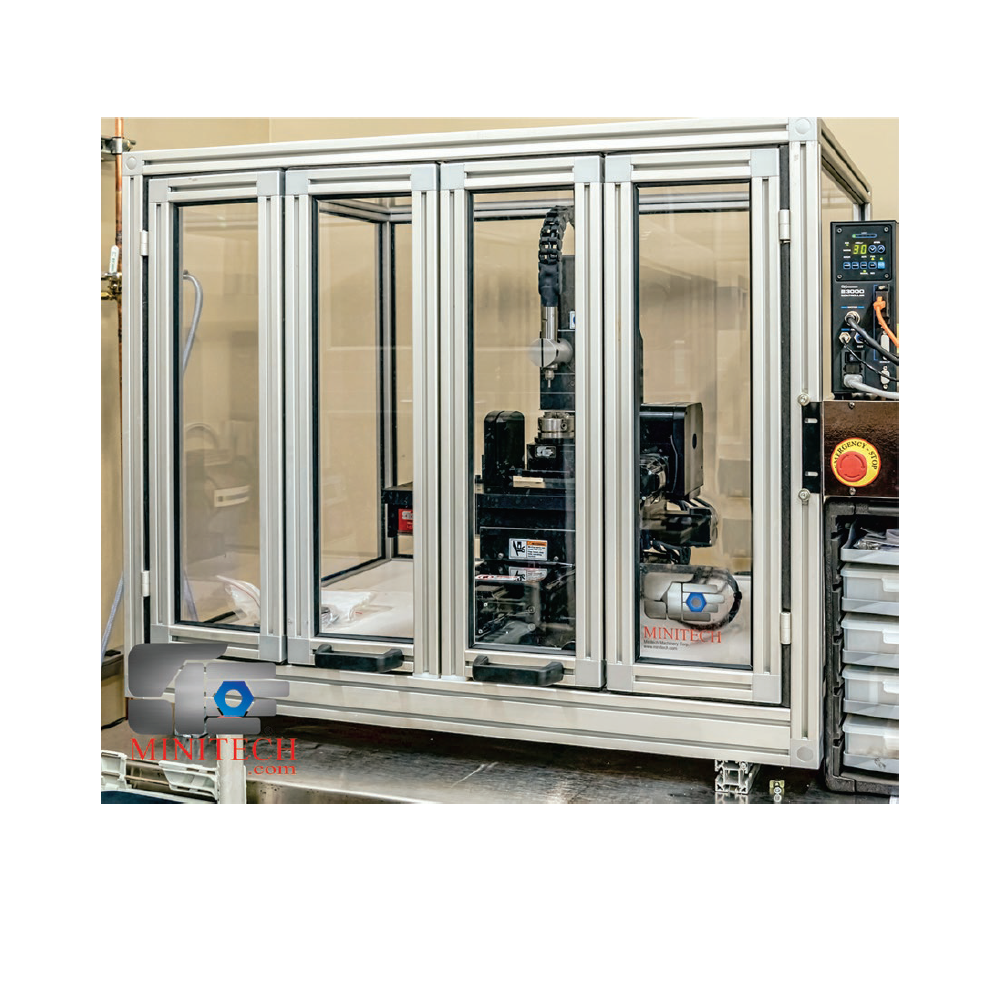

• Free-standing enclosure
• High resolution: 0.0001mm

• Linear bearings: dual linear ball bearing slides one each axis
• Drive mechanism: THK ball screw actuator-preloaded and sealed, 5 mm pitch
• No torque fluctuation and no backlash,
• Positioning repeatability of the ball screw is 0.0004 mm
• THK Caged Technology (eliminates the need for frequent lubrication)
• Long-term maintenance-free performance


Typical Applications

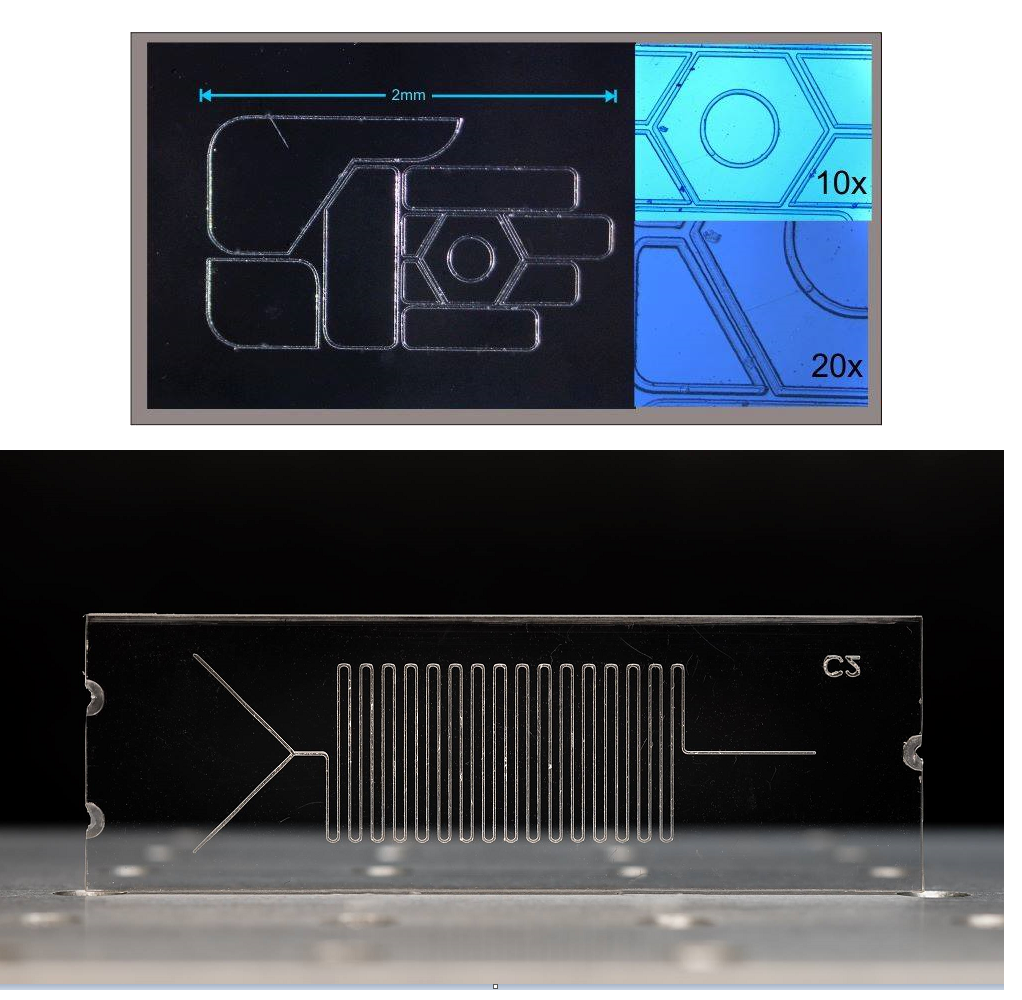

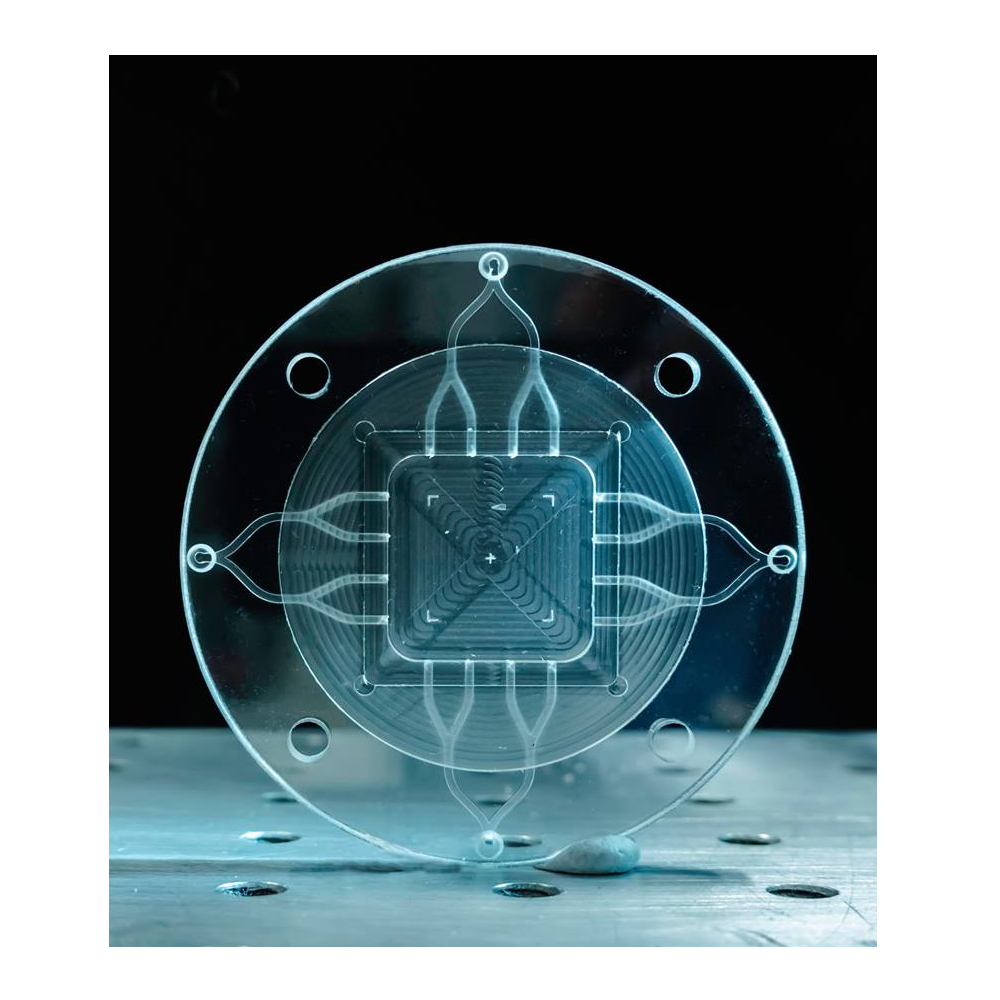

• Microfluidics
• Jewelry fabrication
• Micro-machining for biomedical devices

• Mold insert for injection molding
• Semiconductor equipment
• Metrology or measuring instruments
