• Dino-Lite Digital Microscope AF3113T
    Dino-Lite Digital Microscope AF3113T Dino-Lite Digital Microscope AF3113T Dino-Lite Digital Microscope AF3113T Dino-Lite Digital Microscope AF3113T

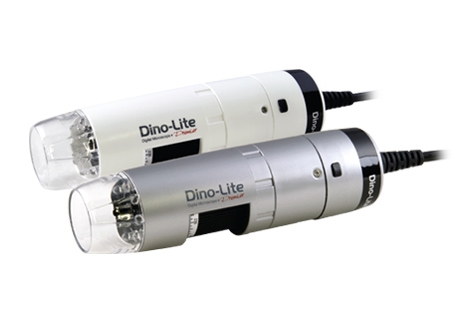

The Dino-Lite Premier 0.3MP AF3113T is designed to meet most applications within 10x - 50x, 230x magnifications with LED brightness control. The new modular wireless-ready design allows for USB connection or a quick swap to wireless with a WF-20 adapter (sold separately) making it a completely cordless and portable microscope.  Package Includes: Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate End Caps.  Gray: AF313T and White: AF3113T(W)

Key Features

  • Optical magnification power: 20x - 50x, 200x
  • The CMOS image sensor transmits 640x480 resolution with up to 60fps.
  • The LED intensity could be adjusted within 6 levels for providing further illumination flexibility.
  • The touch-sensitive button allows to capture image or to record video with a single tap.
  • USB 2.0 simple setup

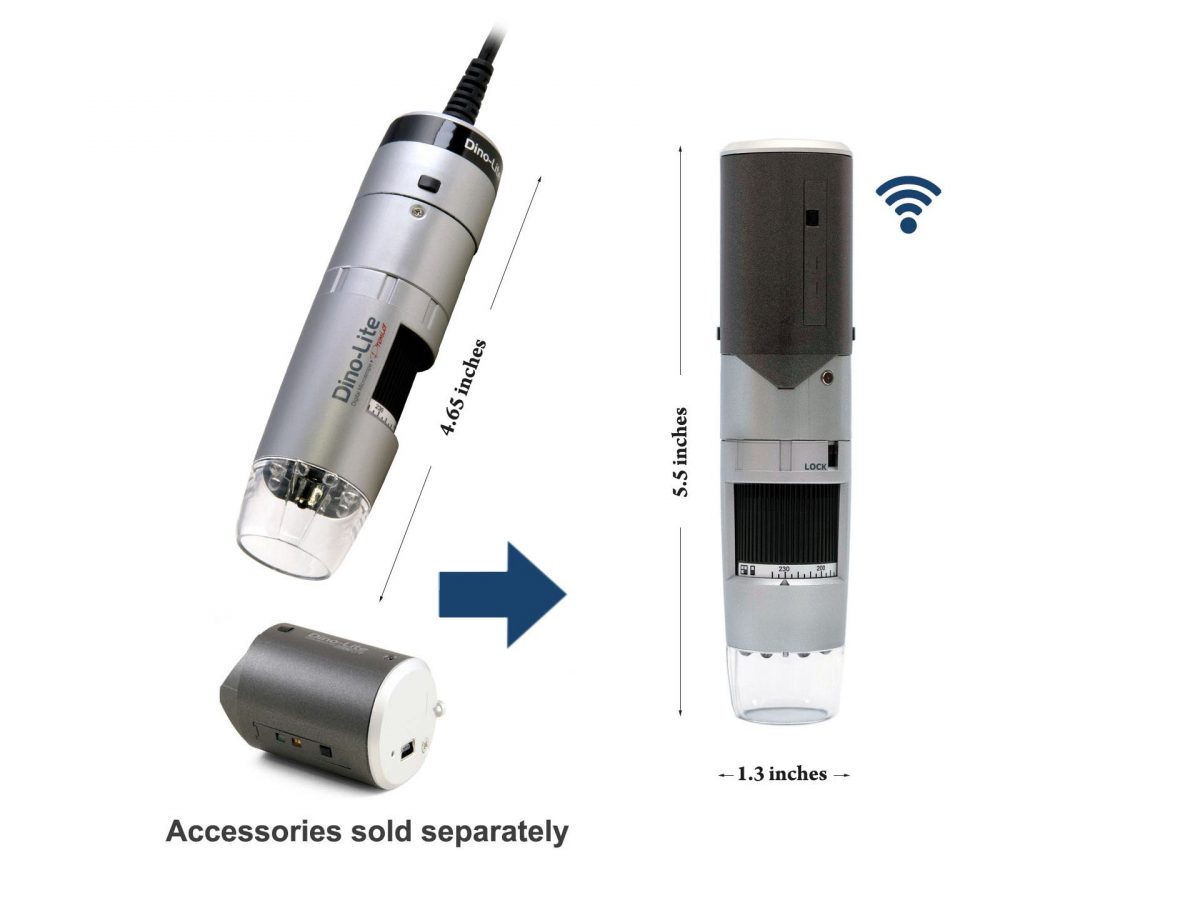

  • Wireless Ready: The USB can be swapped to use the WF-20 Wireless Adapter for wireless streaming
  • Compatible with Windows 7, 8, 10 & Mac OS 10.5+ including 32-bit and 64-bit systems
  • Annotation tool: Use simple tools to draw lines, shapes, and text annotations on the image
  • The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.
  • Two-year warranty & free tech support
  • 26 Language options: default English
  • Barcode reader


Typical Applications

  • Animal examination/ pathology
  • Archaeology microscopes
  • Automotive performance racing and quality inspection
  • Ballistics-forensics
  • BGA inspection assembly
  • Clinical history
  • Component inspection
  • Composite surface inspection
  • Contamination detection
  • Crime scene investigation
  • Dermatological pathology
  • Field and lab research
  • Jewelry inspection
  • Life science
  • Machine vision
  • Process observation







Magnification2030405055215220
Working Distance51.724.1113.80.60.61.7
Field of View21.0 x15.714 x10.510.5 x 7.98.4 x 6.37.4 x 5.21.9 x 1.31.8 x 1.3
Depth of Field8.02------


Digital Microscope
LEDs White (8)
Polarization No
Dimensions 11.4cm (H) x 3.3cm (D) (4.4" x 1.29")
Weight 111g (3.9 oz)
Cable Length 182cm (71.65 in)
Magnification Range 20x - 50x, 200x
Working Distance Standard
Lens Type Glass
Megapixels 0.3 MP
Sensor Type CMOS
Resolution 640 × 480 pixels
Frame Rate (max) 30 FPS
Image Save Formats (Windows) BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Image Save Formats (Mac OS) JPEG, PNG
Video Save Formats (Windows) WMV, FLV, SWF
Connection Type MOV
Included Software DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Image Standards UVC
Flexible LED Control No
Measurement Yes
Automatic Magnification Reading No
Extended Depth of Field No
Enhanced Dynamic Range No
Body Material ABS Plastic
Package Included Microscope, Carry Pouch, Software CD, Edge Calibration Target, Alternate end caps
Warranty Period 2 years
Manufactured in Taiwan
Service & Support U.S. (www.dinolite.us) English & Spanish
Regulatory Approval CE, FCC

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Dino-Lite Digital Microscope AF3113T

  • Brand: Dino-Lite
  • Product Code: AF3113T
  • Availability: In Stock
  • $299.00
