DT-1202 is an instrument designed for performing particle size distribution and zeta potential to characterize concentrated dispersions, emulsions and liquids. The measuring chamber of DT-1202 contains the both acoustic and
electro-acoustic sensors. As a result this instrument is capable of

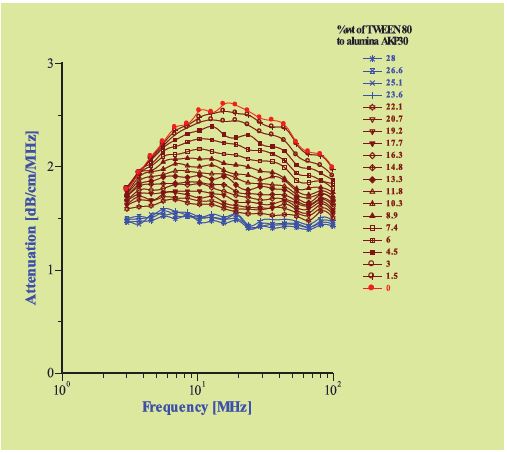

measuring an attenuation spectra for for particle size as well as Colloid Vibration Current for zeta potential. Also, this instrument can perform acoustic and electro-acoustic measurements separately and independently.
Key Features

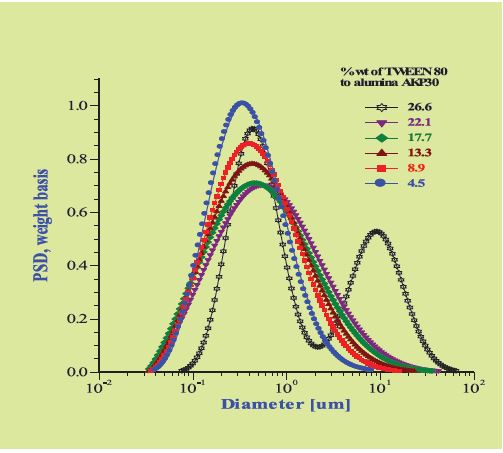

- Particle size distribution
- Zeta Potential and Iso-electric point
- Porosity and solids content
- Compressibility and bulk viscosity
- Non-aqueous conductivity and debye length
- Acoustic attenuation and sound speed
The DT-1202 can be supplemented with a set of Options which substantially extend this instrument's capabilities.
More information can be found in the Specification tab.
| Calculated Parameters | |
| Mean size [microns] | 0.005-1000 |
| Zeta Potential [mV] | +/- (0.5%+0.1) |
| Weight Fraction/Porosity | +/-0.1% |
| Compressibility E10 [1/Pa] | +/-0.003 |
| Bulk Viscosity [cP] | +/-0.01 |
| Debye length [nm] | +/-0.1 |
| Measured Parameters | |
| Temperature [Deg C] | 0 to 100 , +/- 0.1 |
| pH | 0.5-13.5, +/-0.1 |
| Frequency Range [MHz] | 1-100 |
| Ultrasound Attenuation [dB/cm/MHz] | 0 to 20, +/- 0.01 |
| Sound Speed [m/sec] | 500-3000, +/-0.1 |
| Ellectroacoustic signal [mV(s/g)1/2] | +/-1% |
| Conductivity [S/m] | 10^(-11) to 1, +/- 1% |
| Measurement Time [min] | 0.5-10 |
| Sample Volume, Minimum [ml] | |
| Size only | 15 |
| Zeta only | 0.1 |
| Both, no sedimentation | 15+.01 |
| Both with mixing | 70 |
| Both with titration | 110 |
| Both with pumping | 150 |
| Sample Requirements | |
| Volume fraction, % (1) | 0.1-50 |
| Conductivity | N/A |
| pH | 0.5-13 |
| Temperature [Deg C] | <50 |
| Viscosity of media [cP] (2) | <20,000 |
| Viscosity of sample | <20,000 |
| Particle size [microns] | 0.005-1000 |
| Zeta potential [mV] | N/A |
| Physical Specifications | |
| Electronic unit weight [Kg] | 20 |
| Sensor unit weight [Kg] | 30 |
| Voltage [V] | 100-250 VAC, 50-60 Hz |
| Power [W] | <300 |
| Software | Embedded Windows HP, MS Office |
(1) Instrument can measure attenuation well above 50% vl, but verification of the theory for computing particle size and zeta potential is not possible above this limit.
(2) The “micro-viscosity” is important for theoretical calculation. It might be different than “macroscopic” viscosity for gels and other structured systems measured with conventional rheometers.

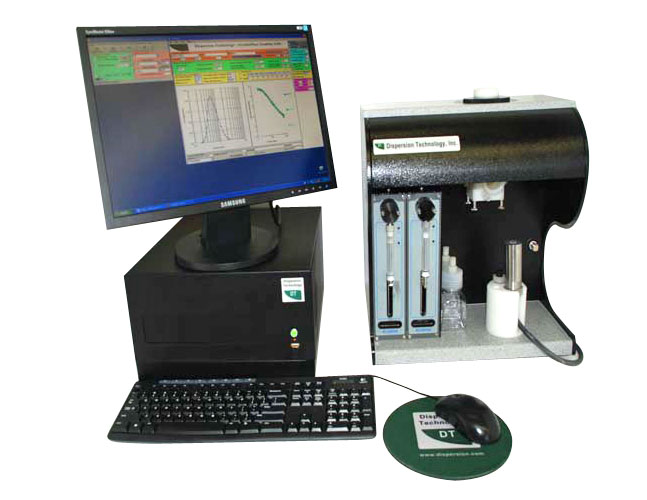

Acoustic and Electro-acoustic Spectrometer DT 1202
- Product Code: DT-1202
- Availability: In Stock
Tags: Acoustic, Spectrometer, Particle Analysis
