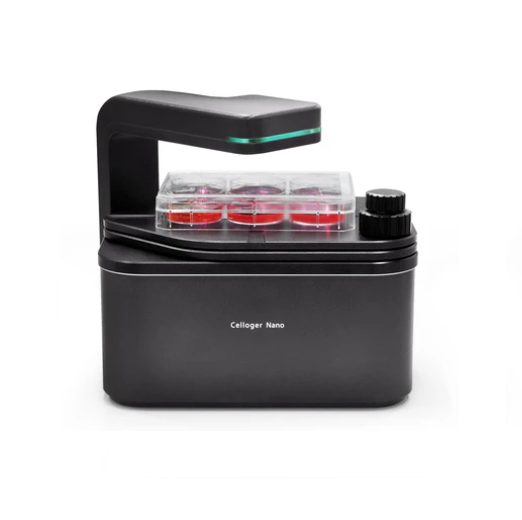

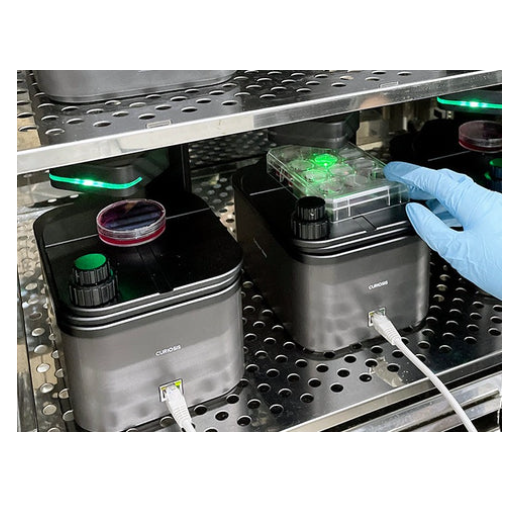

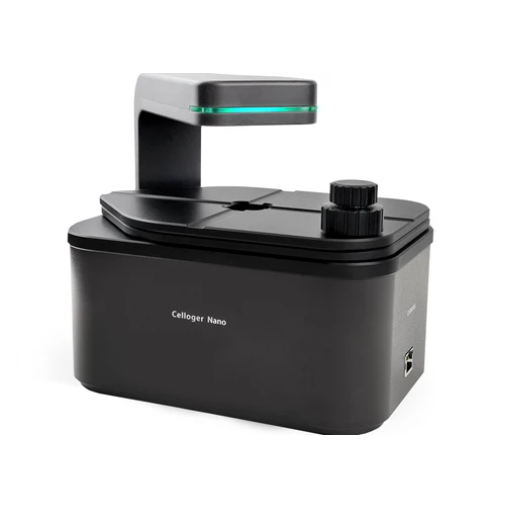

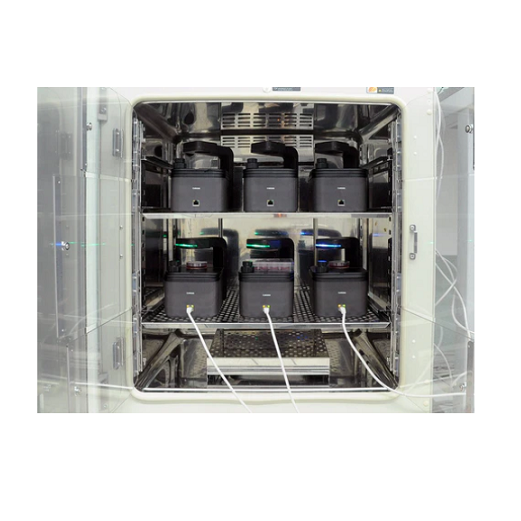

Celloger Nano is a cutting-edge live cell imaging system designed to monitor cellular changes with bright-field and fluorescence (green & red) microscopy. With a space-saving design smaller than an A4 sheet, it seamlessly integrates into CO₂ incubators, providing an optimal environment for long-term cell stability and observation.

This ultra-compact system ensures highly reliable results through an intuitive, fast, and easy-to-use software interface. Whether you're conducting advanced laboratory research or routine cell analysis, Celloger Nano streamlines workflows while maintaining precision and efficiency.

What is live cell imaging?

Live cell imaging is a method of examining living cells over a period of time using the images acquired by time-lapse microscopy. Dynamic cellular processes and events are being observed in real time to study and understand the biological changes of living cells. Live cell imaging has become an essential method in many fields of life science, especially in research areas such as cell biology, stem cells, developmental biology, pharmaceuticals, drug discovery, and more.

Key Features

Real time walk away monitoring
Multi-position imaging
Stable imaging performance
Compatible with various vessel types

Typical Applications

Cell monitoring: study morphological changes of the cell and find the best time for subculture or harvest.
Wound healing assay: check cell migration by scratching the cell and monitor wound healing.
Cell proliferation: quantify the increasing number of cells and provide the growth curve.
Cytotoxicity assay: stimulation of healthy cells to compare cell activity over drug effects.
Transfection efficiency assessment: inserting genes into eukaryotic cells to assess efficiency.

Model:

SKU # CRCLG-NB02: Celloger Mini Plus Bright Field 2X
SKU # CRCLG-NB04: Celloger Mini Plus Bright Field 4X
SKU # CRCLG-NB10: Celloger Mini Plus Bright Field 10X
SKU # CRCLG-NBG04: Celloger Mini Plus Bright Field Green Fluorescence 4X
SKU # CRCLG-NBG10: Celloger Mini Plus Bright Field Green Fluorescence 10X
SKU # CRCLG-NBR04: Celloger Mini Plus Bright Field Red Fluorescence 4X
SKU # CRCLG-NBR10: Celloger Mini Plus Bright Field Red Fluorescence 10X

Dimension (mm)	211 x 146 x 188
Weight (Kg/lbs)	3.2 / 7.0
Objective lens	4 x and 10 x
Field of view 4x (mm)	1.4 x 1.0
Field of view 10x (mm)	0.5 x 0.4
Travel range (mm)	75 x 117
Imaging modes	Bright field, fluorescence (green/red)
Fluorescence Green	Excitation (480/30x) / Emission (535/40m)
Fluorescence Red	Excitation (540/25x) / Emission (575lp)
Light Source	LED
Camera	1.25MP / 5MP CMOS
Stage	Manual XY, Motorized Z
Imaging positions	1
File export format	TIFF, AVI (JPEG, PNG)
Culture vessels	Flask, dish, well plate, slide
Operating environment	10~40, 20~95% humidity
Power requirements	100-240VAC, 50/60Hz
Output ports	Ethernet
O/S required	Window 10
Recommended processor	CPU 3G
Recommended storage	1TB
