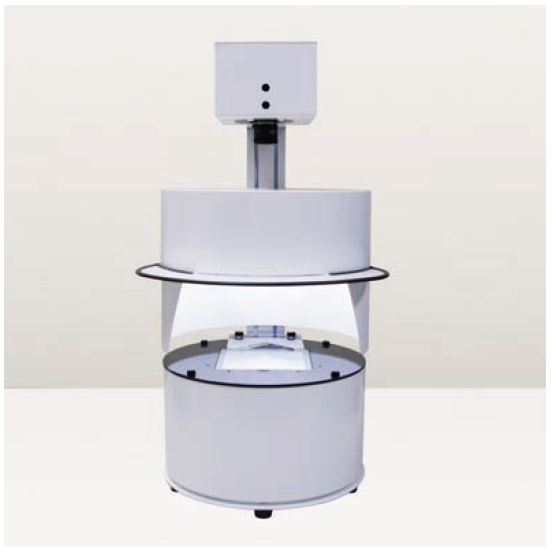

This automatic colony counter PSF-1000 enables to count the number of colonies in a designated area in a fast manner. This device equipped with color camera and enables accurate measurement even culture media with unclear colonies or uneven thickness. The uniform light source solves slight difference between culture medium and colonies. Moreover, accurate counting can be achieved even if there is residue or sedimentation. Standard software is used to manage a variety of specimen like circular, rectangular and spiral types.

Key Features

Overlap differentiation function
Spiral measurement
Adjustment function for uneven brightness
Selective counting function by size
Separate measurement by color extraction
Fast measurement time 3 seconds

Typical Applications

General viable bacteria
Lactic bacteria
Mutagen testing (Ames)
Food industry
Pharmaceutical industry
Water analysis

Functions	Common Features
Measurement Result Indicator	Bacteria colony
Binarization Methods Selection	Manual binarization, binarization by color extraction
Pre-processing for Binarization	Adjustment of uneven brightness
Offset	Offset of binarized colony
Selection by Size	Determination of the range of target colony
Overlap Differentiation	Automatically separate and measure overlapping colonies
Save Process	Save process for each colony specimen recipe
Manual Calibration	Manually designated area deletion of colonies
Image Saving	Original image, image with counting mark
Spiral Counting	Counts the number of colonies by the spiral method
Data Output/Saving	Output to Excel sheet/save in CSV format
Recalculation	Recalculation by retrieving saved images
Regular Inspection	Validation of the equipment

Thumb	File information
	Automatic Colony Coulter psf1000-2000 Specification Sheet.pdf File Size 2.83MB

Colony Counters
Dimensions	W 300x D350 X H620 mm
Weight (kg)	15
Power Supply	AC100-110V, 50/60 Hz
System Configuration	Main Unit (PC/Monitor are sold separately)
Operating Environment	10- 35 °C, 20-80% RH
Camera Resolution	3.0 MG CMOS
Specification of Camera	Color Camera
Measurement Object	Viable bacteria colonies
Size of Petri-Dish	90 mm Diameter or less
Measurement Size	0.1 mm per 90-mm viewing field
Measurement Time	~ 1-3 secs per Petri-dish
Max Number of Colonies	~ 8000 viable bacteria colonies
Lighting	Dark Field, bright field, top light
