Peristaltic Pump LFM1PP01M‑TS Touchscreen | High‑Accuracy Multi‑Mode Metering Pump |Aurora Pro Scientific

The LFM1PP01M‑TS is a high‑precision, multi‑mode peristaltic pump engineered for demanding fluid‑handling applications. Its wide flow‑rate range supports everything from ultra‑low microliter dosing to high‑volume transfers, making it suitable for laboratory, industrial, and process environments. A high‑torque motor enables the use of multi‑stacked pump heads for expanded channel capacity, while the 5‑inch touchscreen provides full parameter control, real‑time status display, and intuitive navigation.

Key Features

Wide Flow‑Rate & Volume Range: 0.1 µL to 99,999 L
High‑Torque Drive: Supports multi‑stacked pump heads for increased channel count
External Control Options: Start/stop, direction, and speed via 4–20 mA, 0–5 VAC, 0–10 VAC, or 0–10 kHz
Leak Detection: Visual indicator with optional audible alert
Online Adjustment: Real‑time flow‑rate and volume changes during operation
Communication: RS485 for system integration
Power Supply: 100–240 VAC, 50/60 Hz

Speed Range

Speed Range: 0.01-150 RPM, CW/CCW
0.1 RPM (0.1–99.9 RPM)
1 RPM (100–600 RPM)

User Interface

5‑inch touchscreen with full parameter setup and live operating display
Operating Modes: Multi‑flow modes for continuous, timed, and volume‑based dispensing

Advanced Calibration

Multi‑point calibration ensures precise and repeatable flow‑rate accuracy across all ranges
Prompt Function: Automatically displays flow‑rate range based on current settings

Compliance & Reliability

IP Rating: IP31
EMC Compliance: Certified
Warranty: 2 years
Operating Temperature: 0–40°C
Relative Humidity: 20–85%

Typical Applications:

Precise reagent dispensing
Cell culture media transfer
Buffer and solvent delivery
Chromatography system feeding
Sample preparation and dilution workflows
Bioreactor feeding and harvesting
Fermentation nutrient dosing
pH adjustment chemical dosing
Chemical metering and additive injection
Nutrient injection for fermentation
Diagnostic reagent delivery
Controlled micro‑volume dispensing for assay systems

Pump Speed	0.01 -150 RPM, CW/CCW
Speed Resolution	0.1 RPM (0,1 -99.9 RPM), 1 RPM (100-600 RPM)
User interface	Touchscreen to set and display all the parameters
Work modes	Multi-flow modes
Calibration	Multi-calibration for flow rates
Prompt function	Display flow range as per setting
Leak detection	Leak indicator alert or voice alert (optional)
External control	Start/stop, direction and speed control (4-20mA, 0-5VAC, 0-10VAC, 0-10kHz)
Status output	Start/stop, direction status
Online adjustment	Volume and flow rate can be adjusted during operation
Communication	RS485
Volume Range	0.1 uL to 99999 L
Timing range	0.1 s to 6554 secs
Power supply	100-240VAC, 50/60Hz
Operating condition	temperature 0-40C; humidity 20%-85%
IP rating	IP31
Dimension	246 x 170 x 164 mm
Pump drive weight	5.6 KG

Pump Head Option

Pump Head	Max. Channel Qty.	Tubing Size	Max. Flow Rate per Channel (mL/min)
1020PH01	4	#13, #14, #19, #16, #25, #17, #18	2200 mL/min
1020PH04	4	#15, #24	1600 mL/min

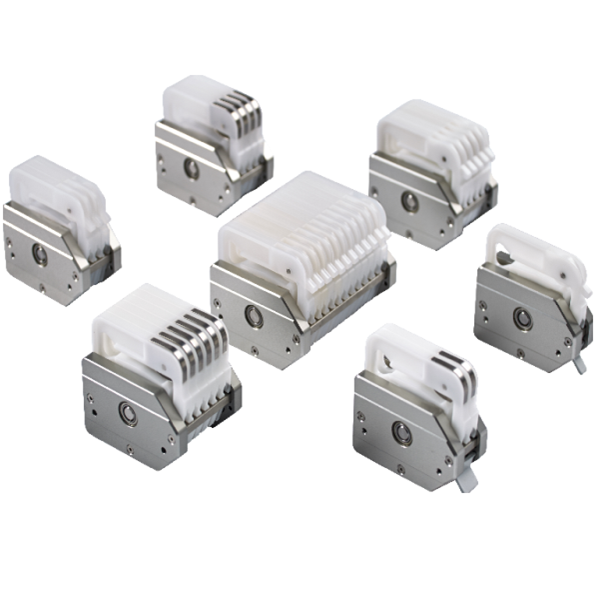

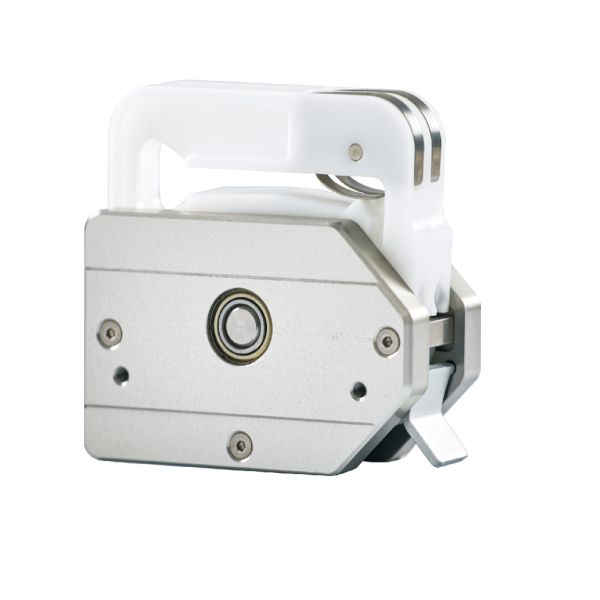

1000PH Series	24	ID<3.175mm, wall thickness: 0.65-1mm	70 mL/min
