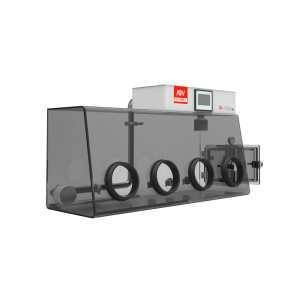

• Acrylic α-1500A Glove Box Auto Purging and Gas Purification
    Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification Acrylic α-1500A Glove Box Auto Purging and Gas Purification

The Acrylic Glovebox design is based on a modular platform that allows users to expand their existing industrial and lab gloveboxes to meet increasing workspace requirements. The Glovebox expansion may include additional antechambers for thru-flow work processes, cold storage freezers, process vacuum ovens and furnaces, and a full line of accessories. The Acrylic models include a series of glovebox chambers with lengths of 650 mm and 1500 mm. We also take custom-built orders according to your needs.  More details can be found in the downloadable brochure.

Key Features

  • All glovebox chambers made of Acrylic
  • All pipework made of stainless steel
  • Purifier regeneration frequency once per year
  • Automatic antechamber control
  • NVD-4 vacuum pump
  • Oxygen Analyzer and Moisture Analyzer
  • Auto purge function
  • User friendly and simple operation: Color LCD touch panel and PLC controller
  • Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
  • Automatic regenerable H2O/O2 purifier
  • Attainable purity O2<1 ppm , H2O<1 ppm (dew point also available for moisture reading)
  • Industry leading low leak rate of <0.05% Vol/hour at -10 mbar condition
  • Stainless steel encapsulated blower with frequency converter
  • Circulation capacity more than 84 m3/h (50 cfm) at ΔP = 60 mbar (60 Hz)
  • Compatible with world-wide voltage standards
  • Integrated high vacuum feedthrough
  • Conform to CE
  • One year limited warranty, and lifetime technical support

Typical Applications

Create oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling,  solar cell assembly, hemoglobin and metabolic research, catalyst handling, medicine synthesis, nuclear industry, membrane of organic EL preparation, etc.


Chamber Capacity
Approximately 19.8 cu. F.t or 0.56 m3
Overall Dimensions
68.9" L x 25.6" W x 32.7" H, 1750 mm L x 650 mm W x 830 mm H
Interior Chamber Dimensions
59.1” L x 23.6” W x 25.6” L, 1500 mm L x 600 mm W x 650 mm H
Glove Port Takform Dimensions
8.6” or 220 mm in diameter, O-ring sealed
Butyl Rubber Gloves
Standard 0.4 mm in thickness, and 0.8 mm upon request
HEPA Filters
Inlet and outlet filters eliminate particles with the size >0.3 μm
Leakage Rate
Typically <0.05% vol/hr at -10 mbar
Gas Purification System
Automated removal of H2O and O2 down to <1 ppm
Main Antechamber9.8” (Φ) x 9.8” (L), or 250 mm (Φ) x 250 mm (L), with pressure down to 1 x 10-2 mbar
O2-Analyzer Measurement Range
0 to 1000 ppm (V)
H2O-Analyzer Measurement Range
0 to 1000 ppm (V)
Compliance
UL, ISO9001, and CE
Warranty
One year limited warranty, and lifetime technical support

Downloadable Product Brochure: nichwell-Acrylic-1500 Brochure.pdf
