This series of Peristaltic Pump heads (KZ25) uses stainless steel rotors, transparent Polycarbonate (PC) housing and PPS compression block. Each head drives a single channel, but they can be stacked to drive multiple channels. The PPS compression block has self-lubrication function to reduce the tubing wear. And the tubing could be loaded and removed easily.

Key Features

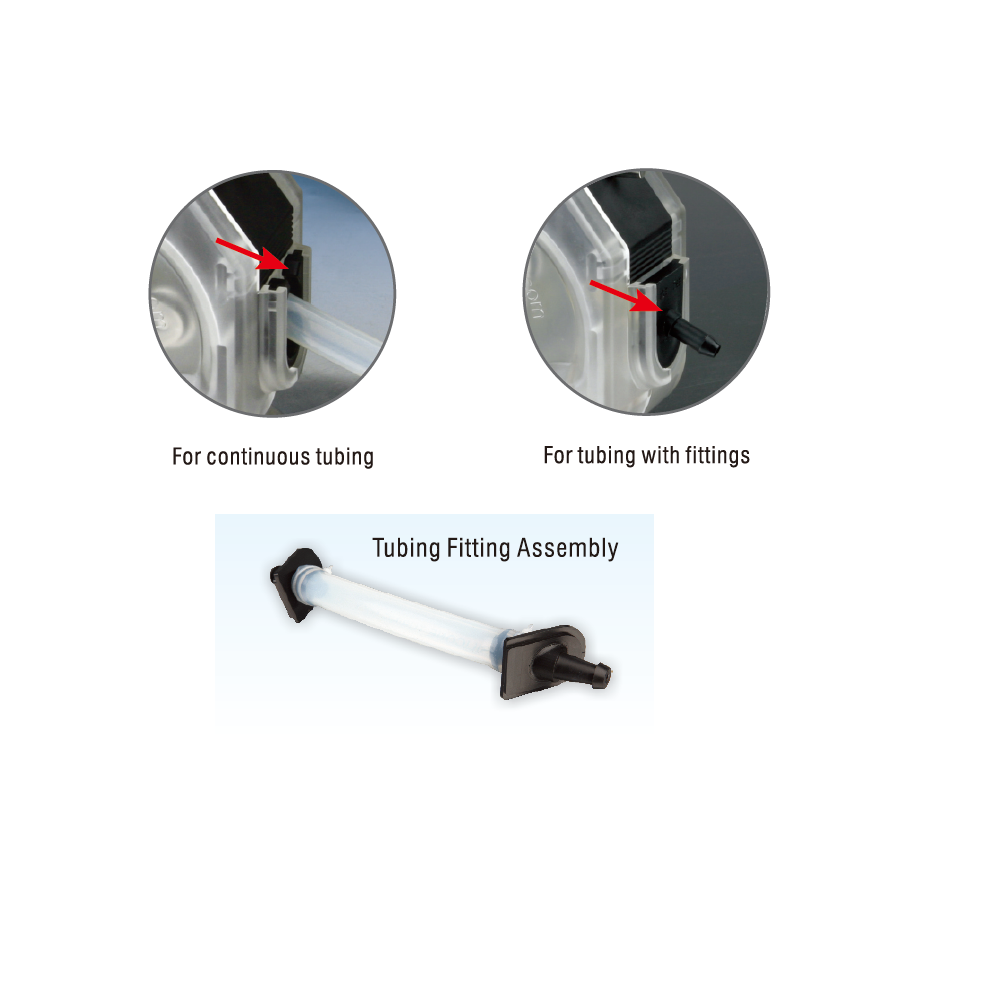

Cartridges and base can be disassembled to easily load the tubing
Pump heads are stackable
Visible pumping state through the transparent housing
Compact size and a wide flow range
Acceptable tubing: #15, #24, #35, #36
Self lubrication of compression blocks

Typical Applications

Precision liquid handling or delivery
suitable for all kinds of industry and lab applications

Model Number	KZ25-A	KZ25-B	KZ25-C	KZ25-D	KZ25-E	KZ25-F
Shaft	Long	Short	Long	Short	Long	Short
Tubing Retainer	Clamper	Clamper	Fitting	Fitting	Fitting	Fitting
Tubing	#15, 24, 35, 36	#15, 24, 35, 36	#15，#24	#35	#25, #24	#35

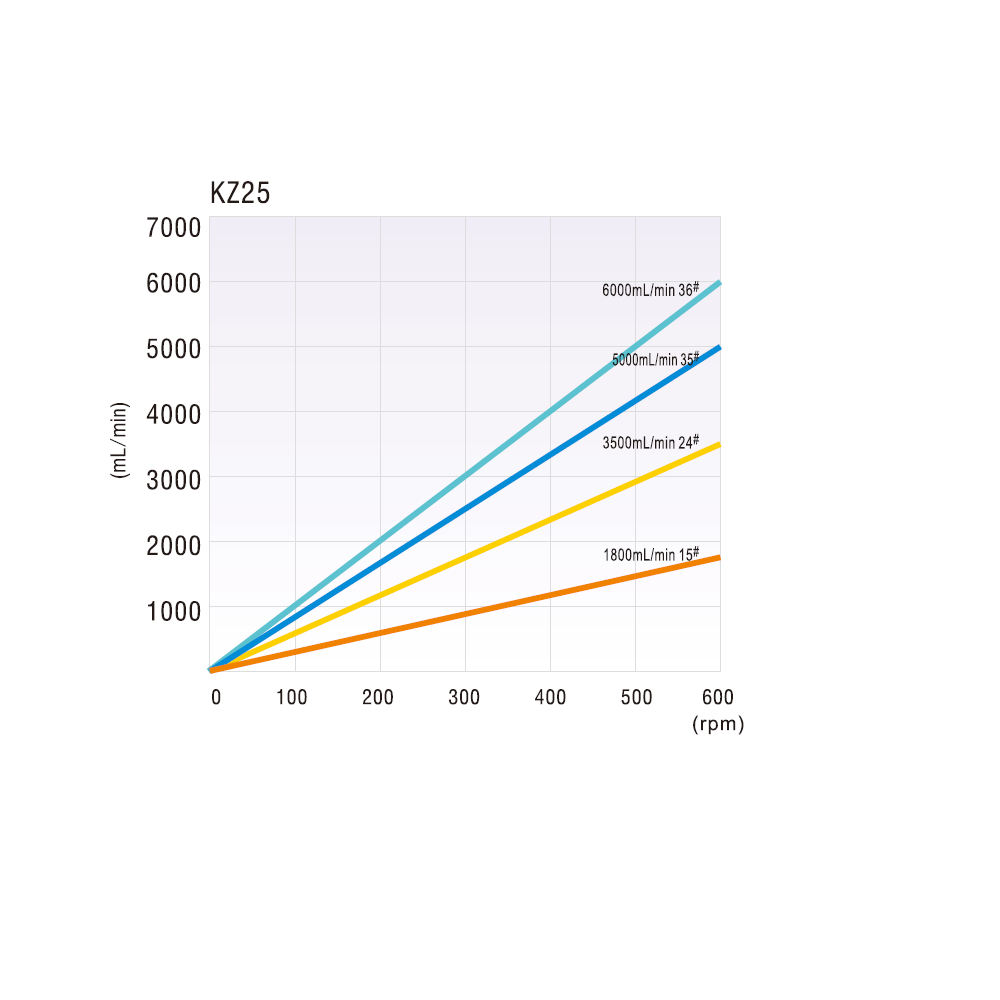

Max Flow Rate	6 (L/min)	6 (L/min)	3.5 (L/min)	5 (L/min)	3.5 (L/min)	5 (L/min)
Number of Rollers	3
Roller Material	Stainless steel
Comp. Block Material	PPS
Rotational Velocity	≤600 rpm
Weight	0.79 kg
