The Acrylic Glovebox design is based on a modular platform that allows users to expand their existing industrial and lab gloveboxes to meet increasing workspace requirements. The Glovebox expansion may include additional antechambers for thru-flow work processes, cold storage freezers, process vacuum ovens and furnaces, and a full line of accessories. The Acrylic models include a series of glovebox chambers with lengths of 650 mm and 1500 mm. We also take custom-built orders according to your needs. More details can be found in the downloadable brochure.
Key Features
- Automatic purging system
- All glovebox chambers made of Acrylic
- All pipework made of stainless steel
- Automatic antechamber control
- NVD-4 vacuum pump
- Oxygen Analyzer and Moisture Analyzer
- User friendly and simple operation: Color LCD touch panel and PLC controller
- Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
- Attainable purity O2<10 ppm , H2O<10 ppm (dew point also available for moisture reading)
- Industry leading low leak rate of <0.05% Vol/hour at -10 mbar condition
- Stainless steel encapsulated blower with frequency converter
- Compatible with world-wide voltage standards
- Integrated high vacuum feedthrough
- Conform to CE
- One year limited warranty, and lifetime technical support
Typical Applications
Create oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling, solar cell assembly, hemoglobin and metabolic research, catalyst handling, medicine synthesis, nuclear industry, membrane of organic EL preparation, etc.
| Chamber Capacity | Approximately 19.8 cu. F.t or 0.56 m3 |
| Overall Dimensions | 68.9" L x 25.6" W x 32.7" H, 1750 mm L x 650 mm W x 830 mm H |
| Interior Chamber Dimensions | 59.1” L x 23.6” W x 25.6” L, 1500 mm L x 600 mm W x 650 mm H |
| Glove Port Takform Dimensions | 8.6” or 220 mm in diameter, O-ring sealed |
| Butyl Rubber Gloves | Standard 0.4 mm in thickness, and 0.8 mm upon request |
| HEPA Filters | Inlet and outlet filters eliminate particles with the size >0.3 μm |
| Leakage Rate | Typically <0.05% vol/hr at -10 mbar |
| Main Antechamber | 9.8” (Φ) x 9.8” (L), or 250 mm (Φ) x 250 mm (L), with pressure down to 1 x 10-2 mbar |
| O2-Analyzer Measurement Range | 0 to 1000 ppm (V) |
| H2O-Analyzer Measurement Range | 0 to 1000 ppm (V) |
| Compliance | UL, ISO9001, and CE |
| Warranty | One year limited warranty, and lifetime technical support |
Downloadable Product Brochure: nichwell-Acrylic-1500 Brochure.pdf

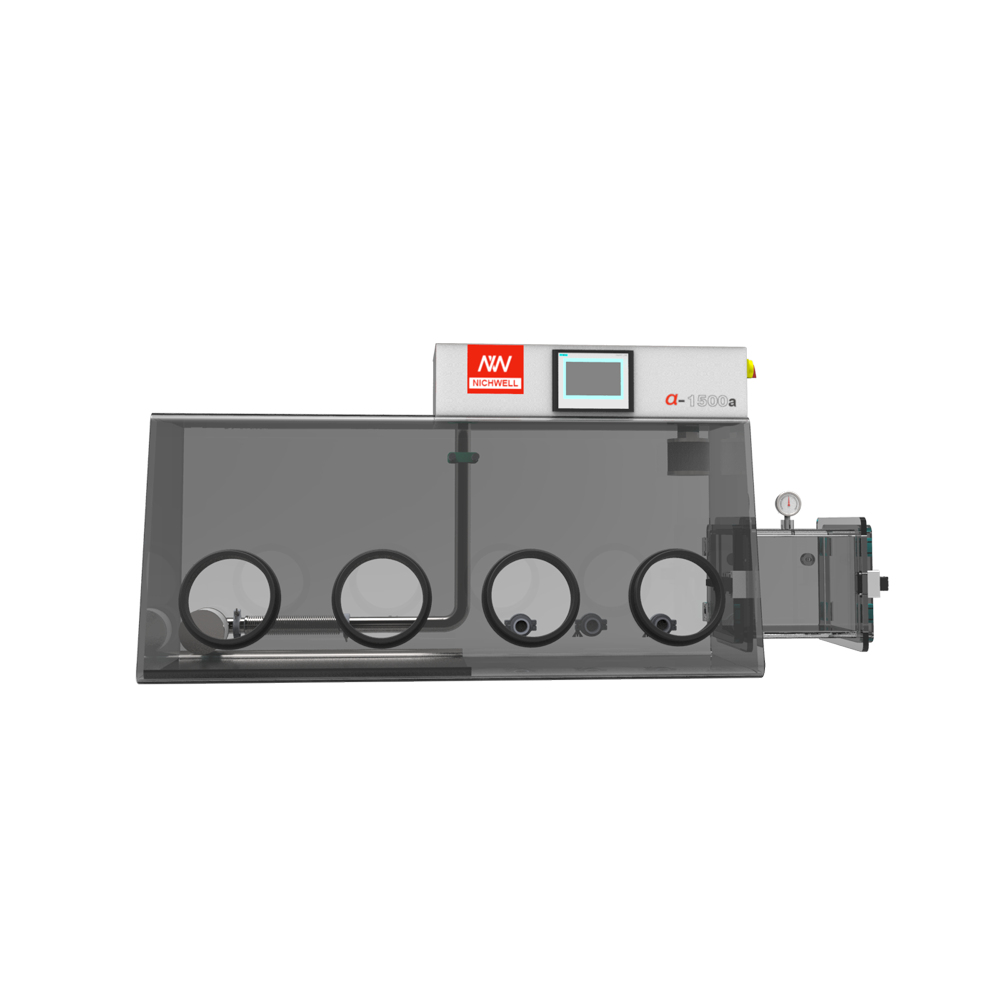

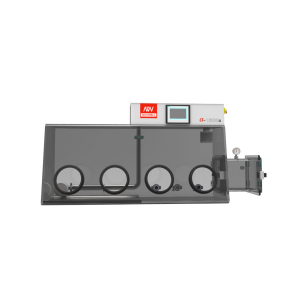

Acrylic α-1500A Glove box Auto Purging
- Brand: Nichwell
- Product Code: NW-Acrylic α-1500A
- Reward Points: 100
- Availability: In Stock
