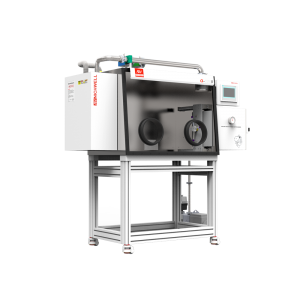

Mini models of gloveboxes are complete standalone systems integrated with entire functional components. They are able to create an inert environment with less than 1 ppm of H₂O and O₂. The systems are modulated with antechambers, removable windows, adjustable trays, lighting units, adjustable shelves, and gloves, which meet most of the operational needs in the glovebox. The systems are made of welded stainless steel and are equipped with highest-quality components. We also provide optional components to meet your special requirements. The mini models include a series of glovebox chamber lengths including 800, 1000, 1200, 1500, and 1800 mm. We also take custom-built orders according to your needs.

Key Features

Compact design to save space
Glovebox with all-welded stainless steel design
All stainless steel pipework
Removable front window as an entry for large equipment
Purifier regeneration frequency once per year
Automatic antechamber control
Main antechamber
Vacuum pump
Oxygen Analyzer and Moisture Analyzer
Auto purge function
User friendly and simple operation: Color LCD touch panel and PLC controller
Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
Automatic regenerable H₂O/O₂ purifier
Attainable purity O₂<1 ppm , H₂O<1 ppm (dew point also available for moisture reading)
Industry leading low leak rate of <0.05% Vol/hour at -10 mbar condition
Stainless steel encapsulated blower with frequency converter
Circulation capacity more than 80 m³/h (47 cfm) at ΔP = 60 mbar (60 Hz)
Compatible with world-wide voltage standards
Integrated high vacuum feedthrough
Conform to CE
One year limited warranty, and lifetime technical support

Typical applications

Create oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling, solar cell assembly, hemoglobin and metabolic research, catalyst handling, medicine synthesis, nuclear industry, membrane of organic EL preparation, etc.

Chamber Capacity	Approximately 16.6 cu. F.t or 0.47 m³
Overall Dimensions	66.9" L x 27.6" W x 64.2" H, or 1700 mm L x 700 mm W x 1630 mm H
Interior Chamber Dimensions	39.4” L x 25.6” W x 28.3 L, or 1000 mm L x 650 mm W x 720 mm H
Inclined Front Window Dimensions	37.6” L x 27” W, or 955 mm L x 685 mm W
Glove Port Takform Dimensions	8.6” or 220 mm in diameter, O-ring sealed
Butyl Rubber Gloves	Standard 0.4 mm in thickness, and 0.8 mm upon request
HEPA Filters	Inlet and outlet filters eliminate particles with the size >0.3 μm
Leakage Rate	Typically <0.05% vol/hr at -10 mbar
Gas Purification System	Automated removal of H₂O and O₂ down to <1 ppm
Rotary Vane Vacuum Pump	Rate at 7.0 CFM or 12 m³/h with pressure down to 2 x 10^-3 mbar
Circulation Flow Rate	47 CFM or 80 m³/h
Antechamber	15.7” L x 9.8” W x 9.8” H , or 400 mm L x 250 mm W x 250 mm H, down to 1 x 10^-2 mbar
O₂-Analyzer Measurement Range	0 to 1000 ppm (V)
H₂O-Analyzer Measurement Range	0 to 1000 ppm (V)
Compliance	UL, ISO9001, and CE
Warranty	One year limited warranty, and lifetime technical support
