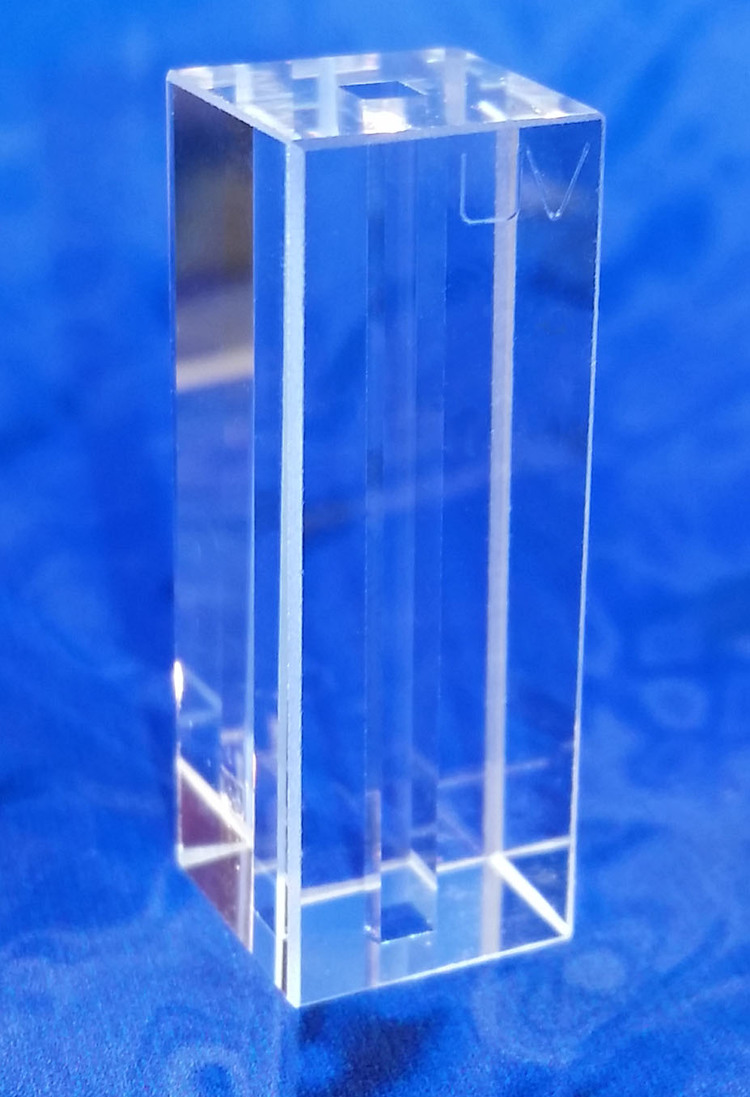

Standard 2mm flow through cell with different material options that can be used for flow cytometry, particle
analysis, liquid chromatography and many other applications. This design
can be modified for your specific needs.
Key Features
- Robust and durable
- Available in UV Quartz & IR Quartz with excellent transmission
- Standard 2mm lightpath
- Square flow through channel ( 2.0 mm x 2.0 mm)
- All surfaces polished
- Vigorous inspection process on each cell before leaving factory
Typical Applications
- Flow cytometry
- Particle sizing
- Cell counting
- Particle analysis
- Liquid chromatography
| Lightpath | 2 mm |
| Flow Cell Style | Flow through |
| Overall Length | 27.4 mm |
| Outer Dimension | 10.5 mm x 10.5 mm |
| Inner Dimension | 2.0 x 2.0mm |
| Volume Capacity | 0.11 ml |
Particle Analysis, Flow Cytometry, Flow Cell, Lightpath 2 mm, Type 77
- Brand: FireflySci
- Product Code: FC-001-77
- Availability: In Stock
-
$455.00
