Standard prismatic flow through cell with 45º angled chambers. All surfaces and inner chamber windows polished. This design can be modified for your specific needs.
Key Features
- Robust and durable
- Available in UV Quartz with excellent transmission
- Thermal fusion bonding
- Contain two equal volume chambers
- All surfaces and inner chamber windows are polished
- Vigorous inspection process on each cell before leaving factory
Typical Applications
- Flow cytometry
- Particle sizing
- Cell counting
- Refractometer
| Material | UV Quartz |
| Flow Cell Type | Flow through |
| Chamber Number | 2 |
| Outer Dimension | 8.0 mm x 10.0 mm x 15 mm |
| Inner Dimension | 2.0 mm x 2.5 mm, 2.0 mm x 1.6 mm, 2.0 x 7.0 mm |
| Volume Capacity | 2 x 10 µL |

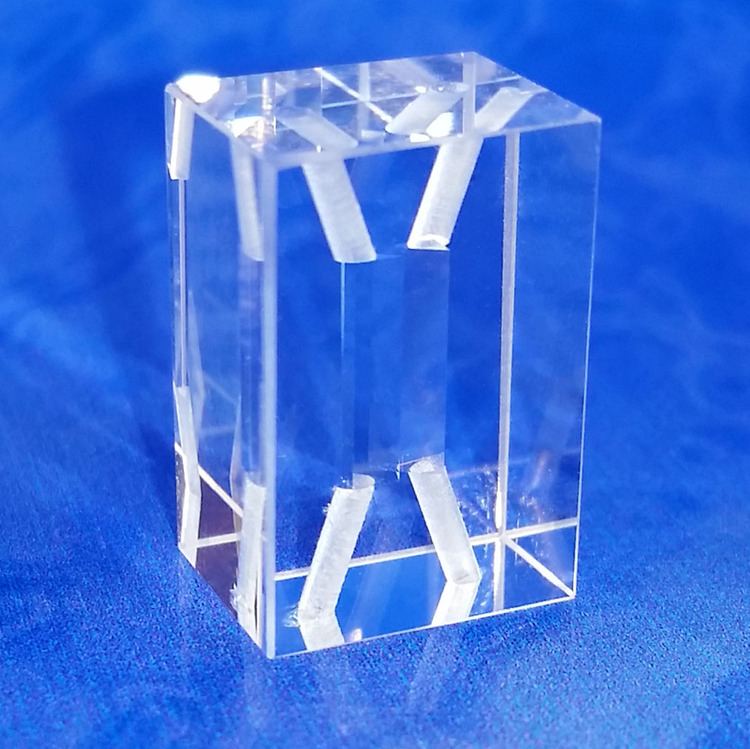

Refractometer Flow Cell, 45º Angle, Type 511
- Brand: FireflySci
- Product Code: FC-001-511
- Availability: In Stock
-
$784.50
