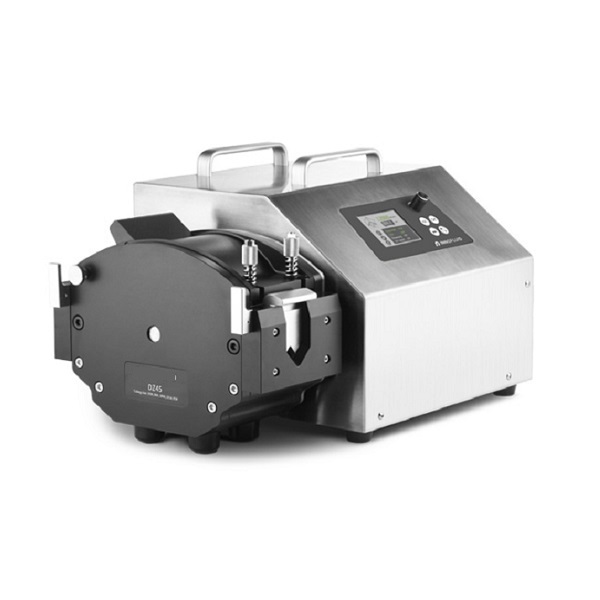

The industrial peristaltic pump N6-30L model features extremely high flow rate up to 30 Liters per min with robust closed-loop stepper motor and external stainless steel housing. A digital rotary knob is used to control pump speed from 0.1 to 300 RPM with a resolution 0.1 rpm. The bright 3.2" high definition LCD display gives users an easy overview of motor speed and flow direction. Mechanical keypad allows users to control Start/Stop, reverse flow direction, and switch to external control.
The package comes in with the peristaltic pump N-30L with one pump head, two pieces of sample silicone tubing (one meter each), 220VAC power cord and user manual. The external control modules are ordered separately if needed. If you have any question regarding your high flow rate applications, please feel free to speak to our product specialist.
Key Features:
- Power consumption: <300W
- Voltage: AC 220V±10% 50Hz/60Hz (standard)
- Flow rate range: 1.0 L/min to 30L/min
- Speed range: 0-300 rpm
- Motor Type: Closed-loop stepper motor
- Flow rate accuracy: <±0.5%
- Speed resolution: 0.1rpm
- DZ45 Pump Head:
- Aluminum alloy shell and 304 stainless steel roller assembly
- Four rollers design for low pulsation, and planetary gear roller and a driven rotor
- Fixed time dispensing Function: 0.1s~9999h
- External speed control signal: 0-5V,0-10V,4-20mA for option
- Back suction angle: 0-360°
- Control method: Mechanical keypad, Rotary digital knob
- Display: 3.2" high definition LCD screen
- Start/stop, direction signal:
- Passive switch signal, such as foot pedal switch ;
- Active switch signal: 5V, 12V and 24V.
- Output interface: Output motor working status (Open-Collector output)
- Power supply: 220VAC±10% 50Hz/60Hz
- Communication interface: RS232, RS485 support MODBUS protocol(RTU mode)
- Condition temperature: 0-40℃
- Relative humidity: <80%
- CE and SGS certification
Typical Applications
- Precision liquid handling or delivery
- Bio-lab applications
- Medicine, cosmetics industry
- Food and beverage dispensing
- Pharmaceutical and biotech industries
- Drug development and production
Pump Head Options:
- Pump Head: DZ45-I with stainless steel hose connectors
- Pump Head: DZ45-II without hose connectors
| Tubing Size | Tubing dimensions (mm) ID X WT | Flow Rate (mL/min) DI Water |
| #88 | 12.7 x 4.8 mm | 1,000 - 14,300 (37.5-350 RPM) |
| #92 | 25.4 x 4.8 mm | 3,680 - 30,000 (37.5-270 RPM) |
Key Features of Pump Head DZ45
- Long service life of tubing: The rollers of the planetary gears is powered by self-transmission, rolling friction with the tube. This extends the service life of the tube.
- High torque, shock resistant: Planetary gears have multiple contact surfaces. Gears therefore receive shock loads evenly across 360°. This makes the load on each gear smaller and it can therefore accept higher torque shock.
| Compact Lab Pump | |
| Flow Rate Range | 1.0 - 28.15L/min |
| Motor Speed | 0.1 - 300 rpm |
| Speed Resolution | 0.1 rpm |
| Control Method | Digital rotary knob/mechanical keypad |
| Pump Display | 3.2" LCD screen |
| Power and Voltage | 220VAC ±10% 50Hz/60Hz |
| Pump Weight | 13.5 Kg |
| External Control Mode | 0-5V, 4-20 mA (standard), 0-10V (optional) |
| Communication Interface | RS232, RS485 support MODBUS |
| Temperature and RH% | 0-40°C; <80% RH |
| Pump Dimensions (L x W x H) | 262.4×302×267.9 mm |
Industrial Peristaltic Metering Pump N6-30L, High Flow Rate 30 Liters/min, Motor Speed 0.1-300 RPM
- Product Code: ASP-N6-30L
- Availability: In Stock
-
$5,710.00
