Intelligent Peristaltic Pumps L100-1F , Flow Rate 0.15µL/min

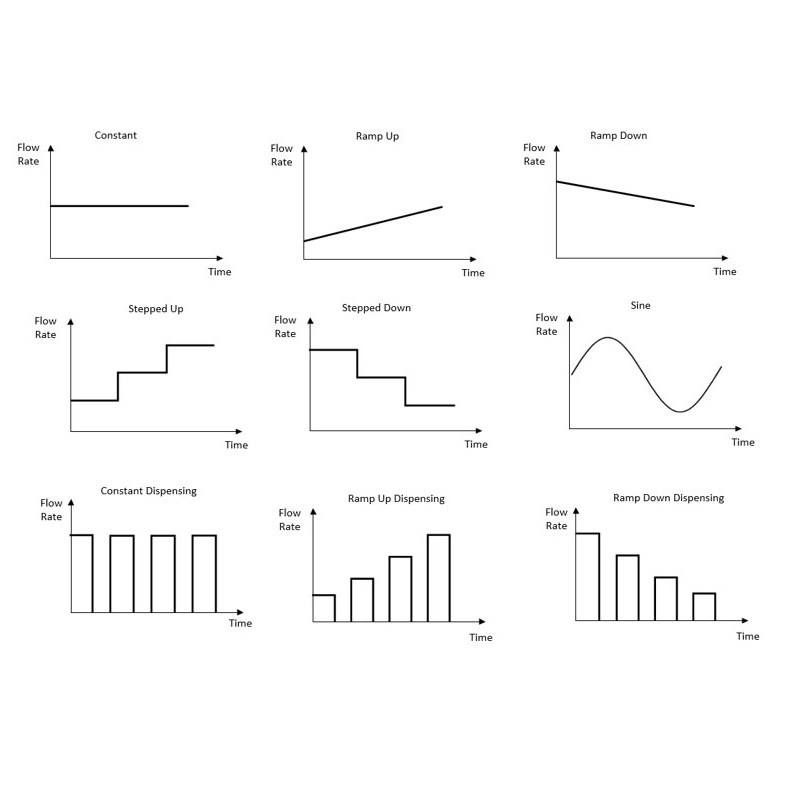

This intelligent peristaltic pump L100-1F can generate adjustable flow rates in the range of 0.15 uL/min to 500 mL/min and the high output torque can drive up to 8 channels. Multiple function modules and intelligent algorithms are designed for a wide variety of applications, including routine and multi-step complex processes. Nine running control modules are available: constant, ramp up, ramp down, stepped up, stepped down, sine, constant dispensing, ramp up dispensing and ramp down dispensing. Compared to L100-1FS, this model doesn't include the RFID module and cannot identify pump head models and tubing size.

Key Features

7 inch color display, full touch screen and intuitive graphic interface, provide easy-to-use operations
0.1-100 rpm speed control with 0.1 rpm resolution
Users can set parameters easily by programming. Pre-set parameter programs can be stored and recalled
Multiple function modules and intelligent algorithms are designed for a wide variety of applications
Pump can be controlled through touch screen, foot switch, analog signal and communication commands
Logic control module: direction, delay, event trigger, status output, pause, jump, loop, stop
Multiple communication interfaces available: RS 485, USB, RJ11, DB9 etc.
CE certified， RoHS compliant

Typical Applications

Precision liquid handling or delivery
Bio-lab applications
Suitable for laboratory and industrial application

Pump Model	L100-1F
Speed	0.1- 100 rpm CW/CCW
Speed Resolution	0.1 rpm resolution
Flow Rate	0.15 µL/min to 3000 mL/min
Dispensing Volume	0.1 mL to 9999 L (accuracy of ± 2% with calibration)
Calibration	Improve the flow rate and dispensing volume accuracy
Display	7 inch 1024 x 600 color LCD
Language	English or set as needed
Control Mode	Touch screen control, foot switch, external signal control or communication
Work Mode	Programming
Programming Function	Running control module, Logic control module and configure multi-step program
External Control	Start/stop control, direction control; voltage level signal or switch signal; Speed control: 0-5 VDC, 0-10VDC, 4-20 mA or 0-10 kHz with uniform interface;
Communication Control	USB or RS485 (RJ11) interface, Modbus protocol, multiple baud rate
Status Output	Output voltage level signals to indicate pump running status, direction status
Parameter Program	7 parameters programs can be stored and easily recalled
Delayed Start	Pump can start running at desired time
Back Suction	Antidrip through setting back suction angle and delay time for high dispensing accuracy
Dispensing Volume Setting Range	0.001 µL- 9999 L
Interval Time Setting Range	0.5s - 9000s
Dispensing Cycle Setting Range	1 -99999 ( 0 for unlimited)
Dispensing Time Setting Range	0.5s-9000s
Delay Time Setting Range	0.5s-9000s
Prime	Fast filling and emptying at full speed
EMC	Comply with EMC directive 2014/30/EU
Dimension (L X W H)	180 mm x 294 mm x 235 mm
Power Supply	AC 220V ± 20%, 50/60 Hz; AC 110V ± 20%, 50/60Hz
Environment Condition	Temperature: 0 - 40 deg C, Relative humidity: <80%
IP Rating	IP31
Weight	5.0 Kg

Pump Head and Tubing Selection

Pump Head	Tubing	Max Flow Rate Reference (mL/min)	Weight (Kg)
YZ1515x, YZII15	13#, 14#, 19#, 16#, 25#, 17#, 18#	380	5.4
YZ2515X	15#, 24#	266	5.4
YZII25	#15, #24, #35, #36	500	5.4
FG15-13	13#, 14#, 19#, 16#, 25#, 17#, 18#	430	5.3
FG25-13	15#, 24#	270	5.3
DMD15-13-A	2 x 13#, 2 x 14#, 2 x 19#, 2 x 16#, 2 x 25#	375	5.4
BZ15-13-A	14#	122	5.3
BZ15-13-B	16#	80	5.3
BZ15-13-C	25#	150	5.3
BZ15-13-D	17#	270	5.3
BZ25-13-B	24#	250	5.3
DG15-24	16#, 25#, 17#	300 (single channel)	5.8
DG15-28	13#, 14#, ID< 3.17 mm, Wall Thickness 0.8-1 mm	75 (single channel)	5.7
DG-(1,2,6,8) 6 Rollers	ID< 3.17 mm, Wall Thickness 0.8-1 mm	48 (single channel)	5.2-5.6
DG-(1,2,4) 10 Rollers	ID< 3.17 mm, Wall Thickness 0.8-1 mm	32 (single channel)	5.2-5.4
