This miniature diaphragm pump is based on a motor that drives a connecting rod to oscillate an elastic membrane, resulting in pumping action. During the downward stroke, the diaphragm draws the medium in via the inlet valve while pushing the medium out via the outlet valve. The diaphragm hermetically seals the compressible chamber during the pumping process.   Brushless or brushed DC motor and stepper motor options are available.

Key Features

• Low vibration

• Long service life (5,000 hours for Brushless DC motor and Stepper motor)

• Low noise and pulsation (< 50db)
• Chemical resistant materials available (EPDM)
• 100% Oil-free. No contamination
• Maximum flow rate of  150 mL/min
• Maximum pressure: 0.29 MPa
• Maximum vacuum:  5.8 in Hg
• Tubing connection: 5 mm
• RoHS and REACH available


Typical Applications

• Air sampling
• Liquid dispensing
• Gas analysis
• Blood pressure monitoring
• Ozone generators and analyzers
• Liquid level sensing
• Emission measurement
• Medical therapy robotics

Pump Model	ASP-LP100	ASP-LP100BL	ASP-LP100ST
Pump Diaphragm	EPDM	EPDM	EPDM
Wet Material	EPDM	EPDM	EPDM
Pump Body	PPS	PPS	PPS
Pump Voltage	12 /24VDC	12/24VDC	12/24VDC
Voltage Control	Fixed Voltage	Analog or PWM	Stepper motor driver
Flow Rate	0.24 L/min (Air) ≥100 ml/min (DI Water)	0.24L/min (Air) ≥150 ml/min (DI Water)	0.24L/min (Air) 10- 50 mL/min (DI Water)
Maximum Pressure	42.6 PSI (0.29MPa)	42.6 PSI (0.29MPa)	42.6 PSI (0.29MPa)
Maximum Vacuum	5.8 In Hg	5.8 In Hg	5.8 In Hg
Power	5W	5W	12/24W
Pump Motor	Brushed DC	Brushless DC	Stepper Motor
Medium	Air or Liquid	Air or Liquid	Air or Liquid
Fluid Temperature	0-40 Deg C	0-40 Deg C	0-40 Deg C
Relative Humidity	<80%RH	<80%RH	<80%RH

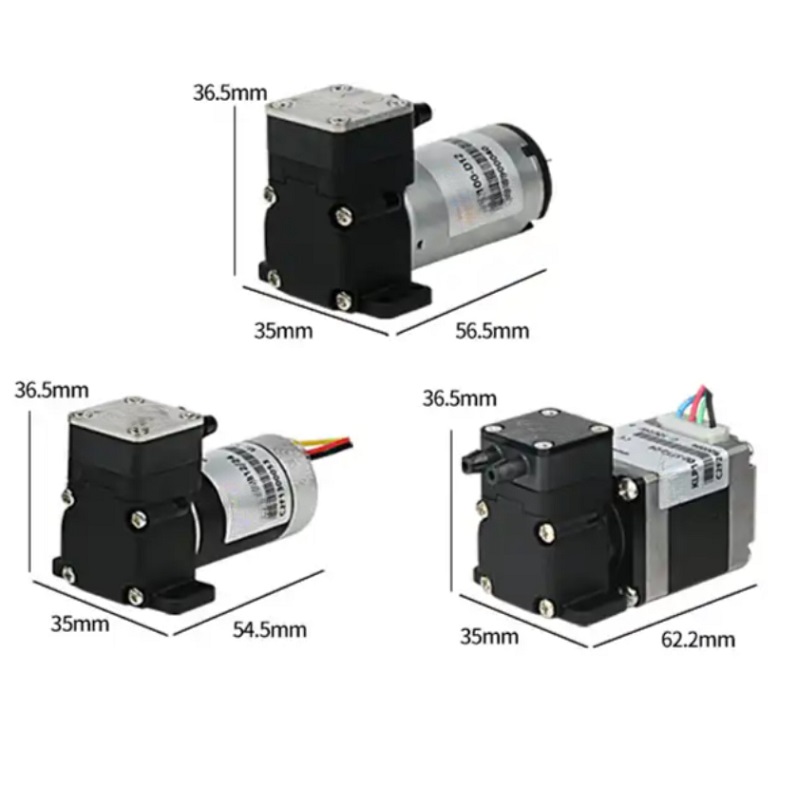

Pump Dimension	35 x 55 x 36 (mm)	35 x 56 x 36 (mm)	35 x 62 x 36 (mm)
Noise	≤65dB	≤62dB	≤50dB
Lifetime	≥500h	≥5000h	≥5000h
Weight	75 grams	80 grams	150 grams

The flow rate is tested with DI water under standard atmospheric pressure and room temperature without discharge pressure applied.

Thumb	File information
	Product Datasheet ASP-LP100.pdf File Size 157.69KB
