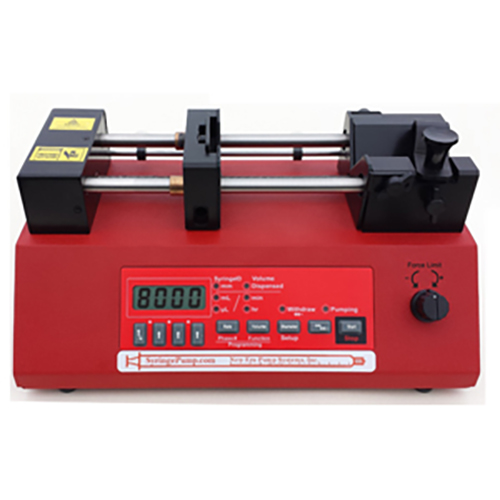

The NE-8000 and NE-8060 High-Pressure Programmable Single Syringe Pumps offer exceptional precision and performance for laboratory applications. These models are designed to handle a variety of infusion rates and provide reliable, high-pressure pumping solutions. These pumps are capable of holding a single syringe up to 140 mL (200 mL partially filled). The NE-8000 model offers infusion rates from 1.733 µL/hr (using a 1 mL syringe) to 340.6 mL/min (using a 140 mL syringe), while the NE-8060 model provides infusion rates from 6.803 µL/hr (using a 1 mL syringe) to 1021 mL/min (using a 140 mL syringe).

With an easy-to-use keypad interface and the ability to upload programs with a single click from the "Pumping Program Generator" spreadsheet, these pumps are user-friendly and highly efficient. The space-saving chassis has a footprint size of only 11 1/4" x 6 1/8". The NE-8000 and NE-8060 also include all the advanced functions and programming features of the NE-1000 series. The NE-8000/NE-8060 pumps are capable of producing about 200 lbs of linear force at slow speeds and 100 lbs at top speed, with pressure output relative to the syringe size.

Key Features:

Adjustable and Programmable Limit Switches: For infusion and withdrawal operations.
Adjustable Force Limit: Reduces maximum force as needed.
Fully Programmable: Designed for automation and can operate stand-alone or from a computer (cables sold separately).
Infusion and Withdrawal: Capable of both infusion and withdrawal functions.
Customizable Programs: Set a single pumping rate and/or dispensing volume, and program up to 41 pumping phases, including rate changes, volume settings, pauses, external signal controls, and buzzer alerts.
Network Capability: Control and monitor up to 100 pumps with one computer.
Global Compatibility: Worldwide power supplies available.
Dispensing Accuracy: +/-1% accuracy.
Technical Support and Warranty: Unlimited lifetime technical support and a two-year warranty.

Special Applications:

Continuous Infusion (Push-Pull) and Dual Syringe Pump: Using two NE-8000/NE-8060 pumps connected with a cable, one pump can infuse while the other refills, or both can infuse simultaneously for continuous operation.

Typical Applications

Precision liquid handling or delivery
Liquid handling with high accuracy at a small flow rate

Reference Flow Rates NE-8000

Syringe Size	Max. Flow Rate	Min. Flow Rate
1 mL	311.3 mL/hr	1.726 µL/hr
3 mL	1317 mL/hr	7.306 µL/hr
5 mL	2193 mL/hr	12.17 µL/h
10 mL	3577 mL/hr	19.84 µL/h
20 mL	5689 mL/hr	31.54 µL/hr
30 mL	7421 mL/h	41.15 µL/h
50 mL	201.1 mL/m	66.9 µL/hr
140 mL	340.6 mL/min	113.3 µL/h

Reference Flow Rates NE-8060

Syringe Size	Max. Flow Rate	Min. Flow Rate
1 mL	15.62 mL/min	6.777 µL/hr
3 mL	65.89 mL/min	28.7 µL/hr
5 mL	109.6 mL/min	47.76 µL/hr
10 mL	178.8 mL/min	77.89 µL/hr
20 mL	284.4 mL/min	123.9 µL/hr
30 mL	371.0 mL/min	161.6 µL/hr
50 mL	603.3 mL/min	262.7 µL/hr
140 mL	1021 mL/min	444.9 µL/hr
