The accessories are for Chem-FEED C-600P diaphragm metering pump. Models and parameters can be selected from the option section.
Typical Applications
- Low pressure and open atmosphere metering
- Plating chemicals
- Water and wastewater treatment
- Soap, detergent injection
- Fertilizer and nutrient injection
- Cooling tower& boiler treatment
| Diaphragm Metering Pump | |
| Max. Working Pressure | 125 psig (8.6 bar) |
| Max. Fluid Temperature | 130˚F (54˚C) |
| Ambient Temp Range | 14 to 110 ˚F (-10 to 43˚C) |
| Max. Viscosity | 1000 Centipoise |
| Max. Suction Lift | 10 ft. Water |
| Output Accuracy | +/-10% of max. (water 0 psi, 5' suction lift) |
| Turndown Ratio | 27:1 standard models |
| Amperage Draw | 115V/60Hz, starting 0.74/running 0.45; 24V/60Hz, starting 3.4/running 2.0; 12VDC, max 3.0 amp |

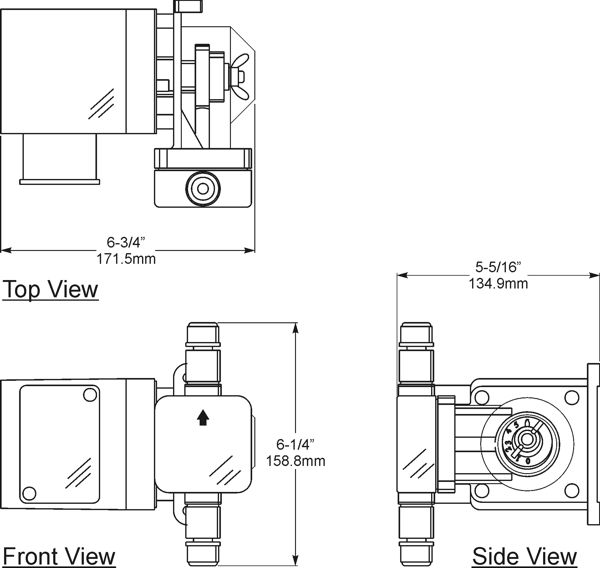

| Pump Dimensions | N/A |
| Shipping Weight (KG) | N/A |

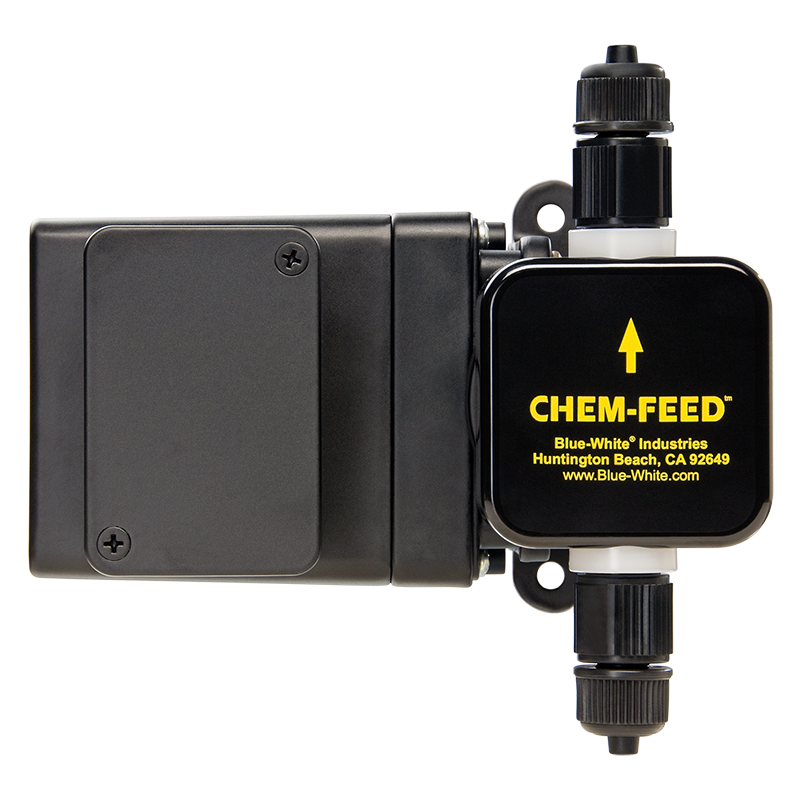

Bluewhite C-600P CHEM-FEED Diaphragm Metering Pump Accessories
- Brand: Blue-White
- Product Code: BW-C-600P-A
- Availability: In Stock
Available Options
