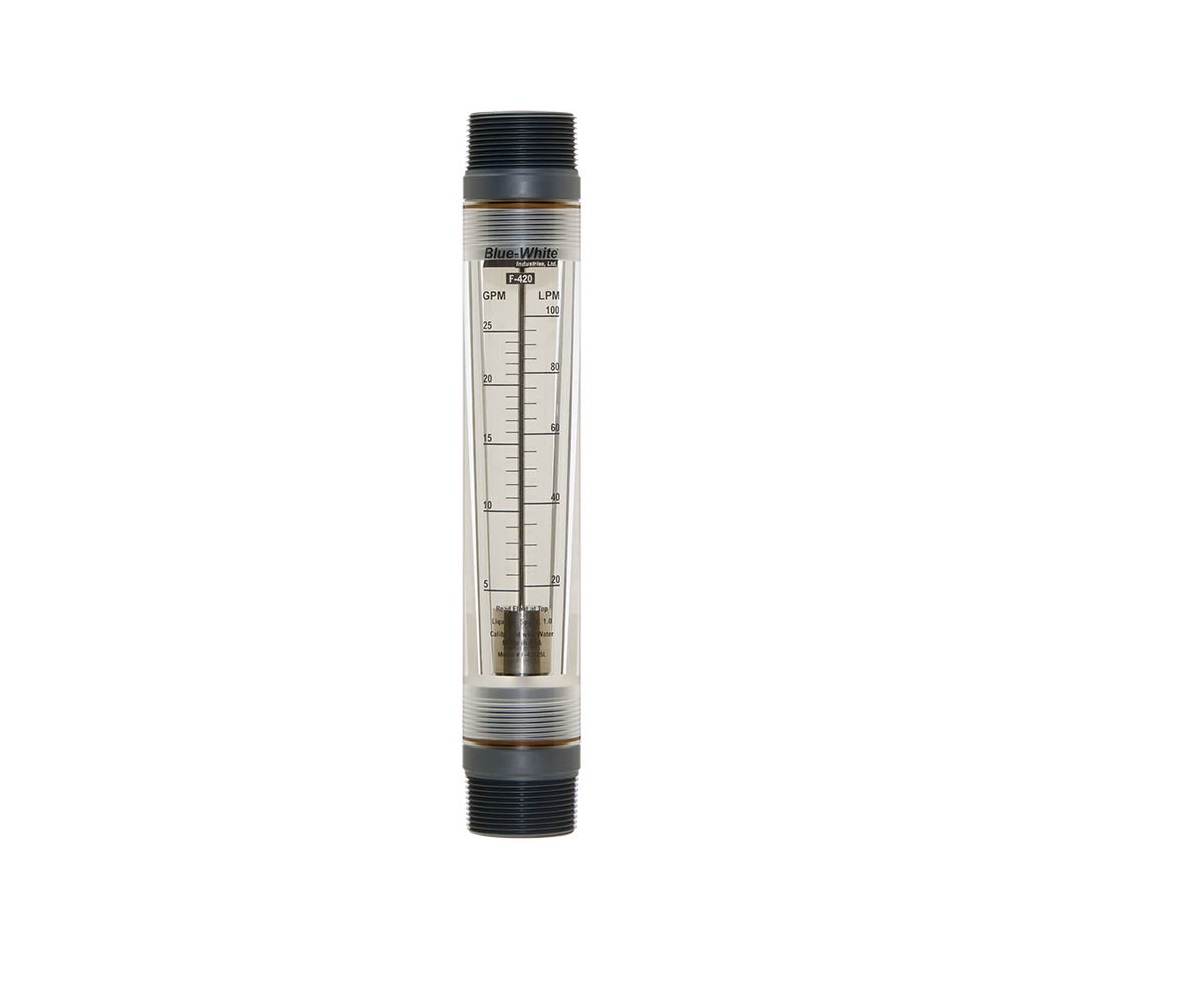

Bluewhite F-420 ACRYLIC Liquid FLOWMETER Standard Model

The variable area flow meter is used to measure the flow rate of liquids and gases and consists of vertically tapered tube through which the fluid to be measured is passed from smaller end of the taper and up to the larger end. The fluid flow raises an indicator f(float) in the tapered tube increasing the area for passage of the fluid. The indicator moves up or down is in proportional to the fluid flow rate. By varying the taper of the tube, the mass of the float, the length of the tube, different flow ranges can be calibrated. The standard turn-down ratio of this flow meter is about 10-to-1. It has simple structure and cost effective and is widely used in various industry applications.

Key Features

Durable, highly polished, one piece meter body
Annealed for added strength and chemical resistance
Acceptable for outdoor installations (acceptable in direct sunlight)
Direct reading permanent scale
White back reflector for easy reading
Standard 316 stainless floats and guide rods
Optional Hastelloy-C for more corrosive environments

Typical Applications

Ultra filtration equipment(reverse osmosis systems)
Manufacturing and management of de-ionized water
Commercial swimming pool industry
Solar panel manufacturing and processing
Water treatment systems
Coolant circulation

Model ID	Short Description
F-42025LN	Blue White F-42025LN Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.5'' M/NPT
F-42025LN-16	Blue White F-42025LN-16 Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' F/NPT
F-42040LN	Blue White F-42040LN Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.5'' M/NPT
F-42040LN-16	Blue White F-42040LN-16 Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' F/NPT
F-42050LN	Blue White F-42050LN Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP),adapter 1.5'' M/NPT
F-42050LN-16	Blue White F-42050LN-16 Acrylic Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' F/NPT

Thumb	File information
	F420 Flow-Meter-Technical Data-sheet.pdf File Size 90.52KB
	F420 Flow-Meter-User-manual.pdf File Size 2.48MB

Variable-Area-Flowmeter
Series	F-420
Pipe Size (in)	1.0'' and 1.5''
Flow Range (LPM)	20 to 100 lpm; 30 to 150 lpm; 40 to 200 lpm
Float Material	SS 316
Meter Body	Cast Acrylic Rod
Adapter Material	PVC
O-Ring Seals	Viton (optional EP)
Guide Rod	SS 316
Max Working Pressure	130 PSI (8.9bar) at 21°C
Max Fluid Tempreature (° C) @ 0PSIG	54 °C
Calibration Fluid	Water, Specific gravity of 1.0
Scale Length	4in (100mm)
Environment	Acceptable for direct sunlight exposure
Max Pressure Drop	2 psig
Full Scale Accuracy	± 5%
