The variable area flow meter is used to measure the flow rate of liquids and gases and consists of vertically tapered tube through which the fluid to be measured is passed from smaller end of the taper and up to the larger end. The fluid flow raises an indicator f(float) in the tapered tube increasing the area for passage of the fluid. The indicator moves up or down is in proportional to the fluid flow rate. By varying the taper of the tube, the mass of the float, the length of the tube, different flow ranges can be calibrated. The standard turn-down ratio of this flow meter is about 10-to-1. It has simple structure and cost effective and is widely used in various industry applications. These items are accessories for F-452N series flowmeter.
Key Features
- Polysulfone meter body resists high temperatures and pressures.
- 316 SS or Hastelloy rod guided float.
- Direct reading permanent scale.
- Adapters and unions re-engineered for increased
- protection from misalignment and vibration.
- Not recommended for direct sunlight.
- Available OEM options:
- Private labeling, custom calibrations
- and custom materials.
- Available with Polycarbonate Shield (see datasheet for details)
| Thumb | File information |
 |
Flowmeter F-452N Tech Datasheet.pdf File Size 257.13KB |
|
Flowmeter F-452N Instruction Manual.pdf File Size 2.51MB |
| Variable-Area-Flowmeter | |
| Series | F-452N |
| Pipe Size (in) | 2" F/NPT 2" socket fusion |
| Flow Range (LPM) | 8 to 78 lpm; 30 to 230 lpm; 40 to 300 lpm; 20 to 380 lpm; 80 to 500 lpm;; 100 to 675 lpm |
| Float Material | 316 SS, PTFE, Hastelloy (optional) |
| Meter Body | Polysulfone (PPSU) |
| Adapter Material | Polysulfone (PPSU); Socket Fusion PVDF; Socket fusion PP |
| O-Ring Seals | FKM (optional EP) |
| Guide Rod | 316 SS |
| Max Working Pressure | 150 PSI (17.2bar) at 21°C |
| Max Fluid Tempreature (° C) @ 0PSIG | 93 °C @ 0 psig |
| Calibration Fluid | Water, Specific gravity of 1.0 |
| Environment | Not Recommended for direct sunlight exposure |
| Max Pressure Drop | 2 psi |
| Full Scale Accuracy | ± 2% |

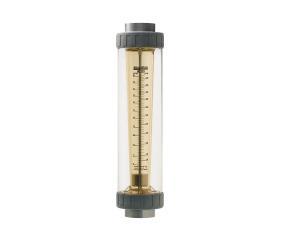

Bluewhite F-452N Polysulfone Moulded FLOWMETER Accessories
- Brand: Blue-White
- Product Code: F-452N-A
- Availability: In Stock
Available Options
