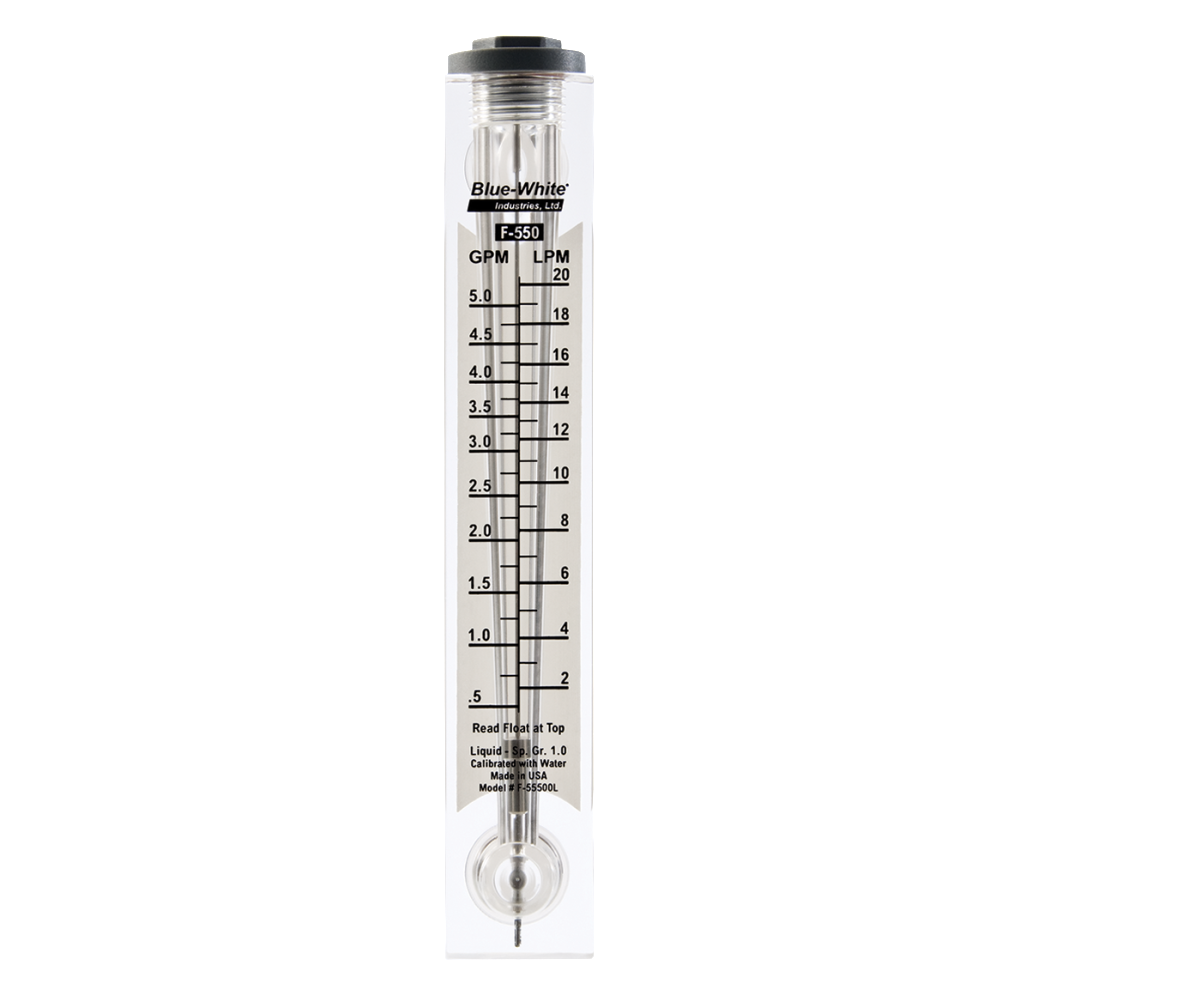

Bluewhite F-550 ACRYLIC Liquid FLOWMETER Standard

The variable area flow meter is used to measure the flow rate of liquids and gases and consists of vertically tapered tube through which the fluid to be measured is passed from smaller end of the taper and up to the larger end. The fluid flow raises an indicator f(float) in the tapered tube increasing the area for passage of the fluid. The indicator moves up or down is in proportional to the fluid flow rate. By varying the taper of the tube, the mass of the float, the length of the tube, different flow ranges can be calibrated. The standard turn-down ratio of this flow meter is about 10-to-1. It has simple structure and cost effective and is widely used in various industry applications.

Key Features

Durable, highly polished, one piece meter body.
Annealed for added strength and chemical resistance.
Acceptable for outdoor installations (acceptable in direct sunlight)

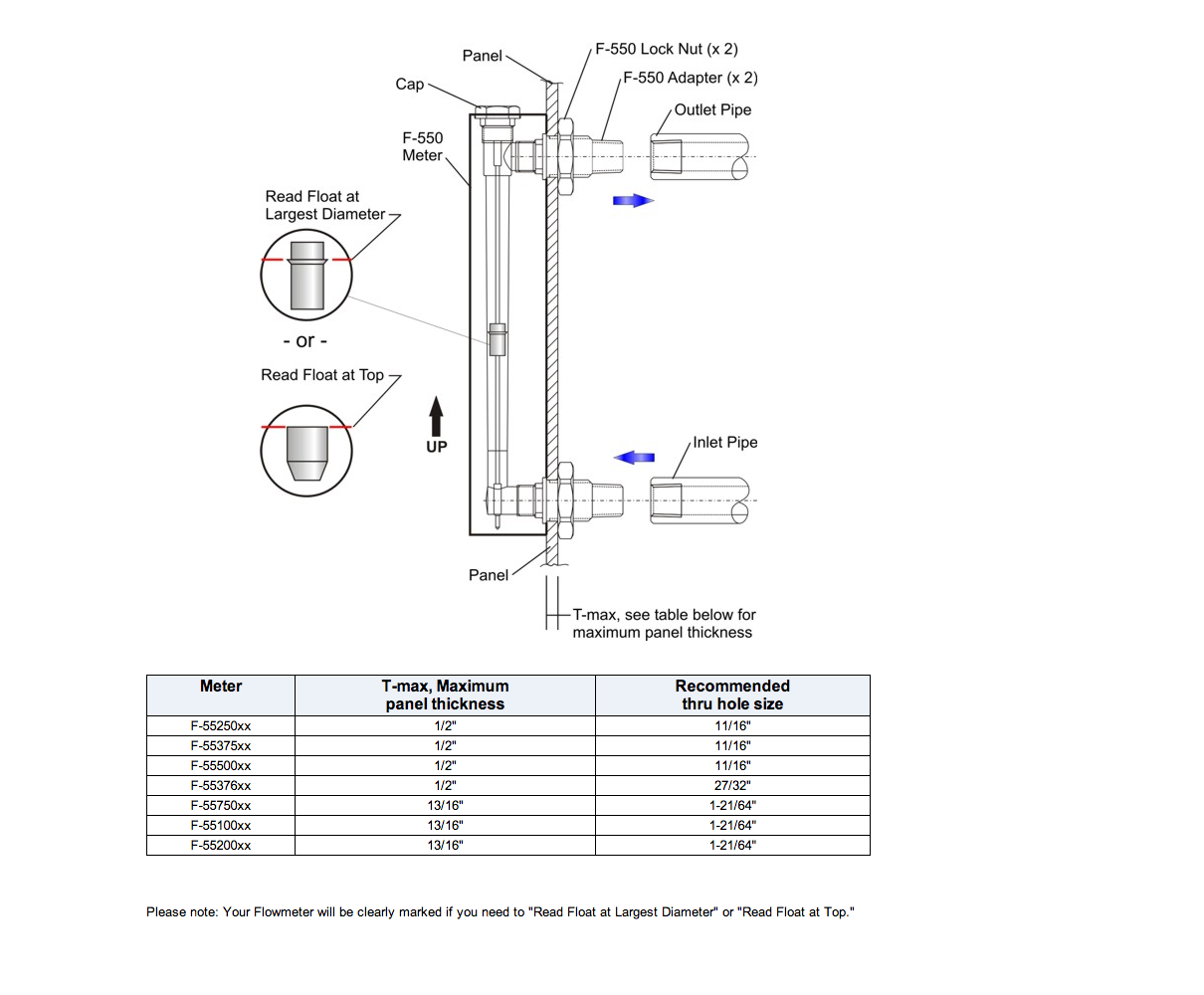

Bulkhead nuts attach directly to inside panel.
Optional adjustable flow control: needle-type adjustment valve.
Direct reading permanent scale.
White back reflector for easy reading.
316 stainless, PTFE or Hastelloy floats and float guides.
Optional Hastelloy-C for more corrosive environments

Typical Applications

Ultra filtration equipment(reverse osmosis systems)
Manufacturing and management of de-ionized water
Commercial swimming pool industry
Solar panel manufacturing and processing
Water treatment systems
Coolant circulation

Model ID	Short Description
F-55250L	Blue White F-55250L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1/4''M/NPT
F-55375L	Blue White F-55375L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 3/8''M/NPT
F-55375L-BRB	Blue White F-43060LNS Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1/2'' Barb
F-55376L	Blue White F-55376L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 3/8'' M/NPT
F-55376L-BRB	Blue White F-55376L_BRB Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1/2'' barb
F-55500L	Blue White F-55500L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 0.5''M/NPT
F55500L-BRB	Blue White F-55500L-BRB Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 0.5'' Barb
F-55750L	Blue White F-55750L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 3/4'' M/NPT
F-55005L	Blue White F-55005L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material PTFE, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' M/NPT
F-55010L	Blue White F-55010L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0' M/NPT
F-55015L	Blue White F-55015L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' M/NPT
F-55200L	Blue White F-55200L Acrylic Liquid F-550 Series Variable Area Flowmeter. Float Material 316 SS, Meter Body Cast Acrylic Rod, O-ring Seals FKM (optional EP), adapter 1.0'' M/NPT

Thumb	File information
	F550 flowmeter TECH Data Sheet.pdf File Size 65.15KB
	F550 flowmeter Instruction Manual.pdf File Size 130.48KB

Variable-Area-Flowmeter
Series	F-550
Pipe Size (in)	1/4'', 3/8'', 1/2'', 3/4'', 1''
Flow Range (LPM)	0.1 to 1.0 lpm; 7.5 to 75 lpm
Float Material	316 SS, PTFE, Hastelloy (optional)
Meter Body	Cast Acrylic Rod
Adapter Material	Polypropylene
O-Ring Seals	FKM (optional EP)
Guide Rod	316 SS
Max Working Pressure	250 PSI (17.2bar) at 21°C
Max Fluid Tempreature (° C) @ 0PSIG	93 °C @ 0 psig
Calibration Fluid	Water, Specific gravity of 1.0
Scale Length	4 in (100 mm)
Environment	Acceptable for direct sunlight exposure
Max Pressure Drop	N/A
Full Scale Accuracy	± 5%
