This product is consists of infra-red light sensor, PVDF chemical resistant lens and NEMA 4X weather resistant enclosure. The model has 1/8'' F/NPT connections and clear PVC lens and is suitable for vertical or horizontal installation. The key features are as follows:
Key Features
- Electronics:
- 9-28 VDC input power required (AC/DC transformers available)
- Factory calibrated – Nothing to program
- Non-Volatile programming and accumulated flow memory
- Total Reset function can be disabled
- Display:
- Displays both rate of flow, and total accumulated flow
- Easy to read 6 digit LCD, up to 4 decimal positions
- LCD not recommended for direct sunlight exposure
- User Selectable or custom programmable scale factors:
- Flow Units: Gallons, Liters, Ounces, Milliliters
- Time Units: Minutes, Hours, Days
- Communication:
- Open collector alarm set point
- Output signal: digital pulse output (2 wire)

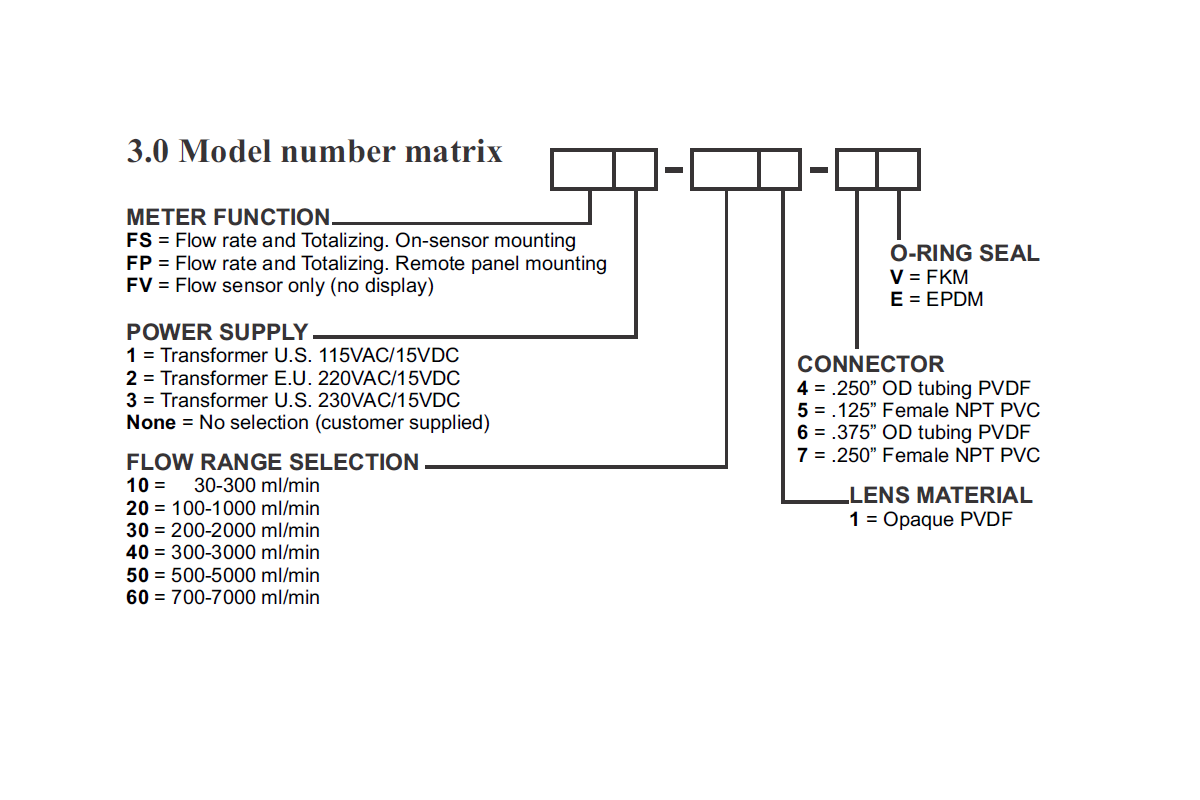

- Model Variations:
- FA = Analog Output. Rate & Total. Sensor Mounted Display
- FS = Rate & Total. Sensor Mounted Display
- FP = Rate & Total. Panel Mounted Display
- FV = No Display, Sensor Only. 5 VDC current sinking output (includes 6ft. cable)
- FX = No electronic sensor. Visual indicator only
Typical Applications
- Ultra filtration equipment(reverse osmosis systems)
- Manufacturing and management of de-ionized water
- Commercial swimming pool industry
- Solar panel manufacturing and processing
- Water treatment systems
- Coolant circulation
| Thumb | File information |
 |
81000-311 MicroFlo wiring instruction.pdf File Size 32.43KB |
|
80000-406 MicroFlo instruction manual.pdf File Size 5.39MB |
|
85000-061 MicroFlo TECH DATASHEET.pdf File Size 619.33KB |
| Bluewhite Micro-Flow | |
| Max. Working Pressure | PVC lens: 130 psig (9 bar) @ 70˚ F (21˚ C) PVDF lens: 150 psig (10 bar) @ 70˚ F (21˚ C) |
| Max. Fluid Temperature | PVC lens, F/NPT connectors: 130˚ F (54˚ C) @ 0 PSI PVDF lens, tubing connectors: ....200˚ F (93˚ C) @ 0 PSI |
| Full Scale Accuracy | FA model: +/-10%; FA, FP and FV models: +/-6% |
| Body, Paddle, Axle Material | PVDF |
| Connector Materials | F/NPT: connection- PVC; Tubing connectors: PVDF (3/8'') and PP (1/4'') |
| Viewing Lens Material | Clear see through-PVC; Opaque chemical resistant-PVDF |
| O-Ring Seals | FKM (Optional EP) |
| Compression Seal to Pump | PVC |
| Shipping Weight (KG) | 0.45 KG |
Bluewhite Micro-Flo Paddlewheel Flowmeter, 115V Models with 1/8'' F/NPT and Clear PVC Lens
- Brand: Blue-White
- Product Code: BW-FP1-125
- Availability: In Stock
-
$402.30
