This controller can be coupled with peristaltic or gear pumps to perform automatic dispensing function. Compatible pumps are included: Longer BT100-2J, BT300-2J, BT600-2J, WT600-2J, WT600-3J and YT600-1J.
Key Features
- Easy to couple with peristaltic pumps
- Easy to set up
- Re-power the pump: user can choose whether to continue in accordance with the state before the power-down
- Single or multiple work modes
Typical Applications
- Precision liquid handling or delivery
- Mainly designed for Laboratory and light industry applications
| Dispensing Time | 0 - 99.99 s |
| Pause Time | 0 - 99.99 s |
| Time Resolution | 0.01 s |
| Work Mode | Single or multiple |
| Internal Count Range | 0 - 999, count up or down |
| External Count Range | 0 - 999,999, 0 indicating unlimited cycles |
| External Star/Stop Signal Input | Open circuit |
| Power Supply | 110 or 220 VAC and 5 W |
Downloadable: User Manual

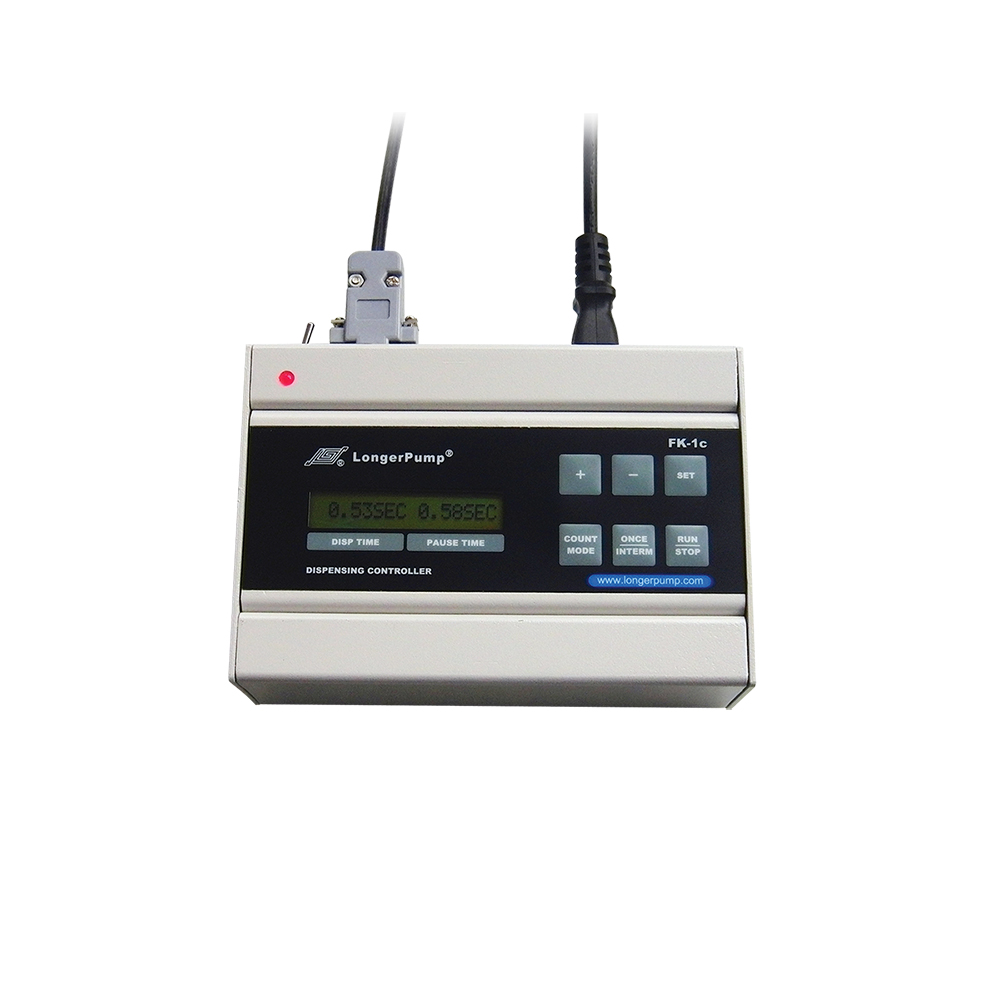

Peristaltic Pump Dispensing Controller -FK-1C
- Brand: Longer
- Product Code: FK-1C
- Availability: In Stock
-
$167.00
