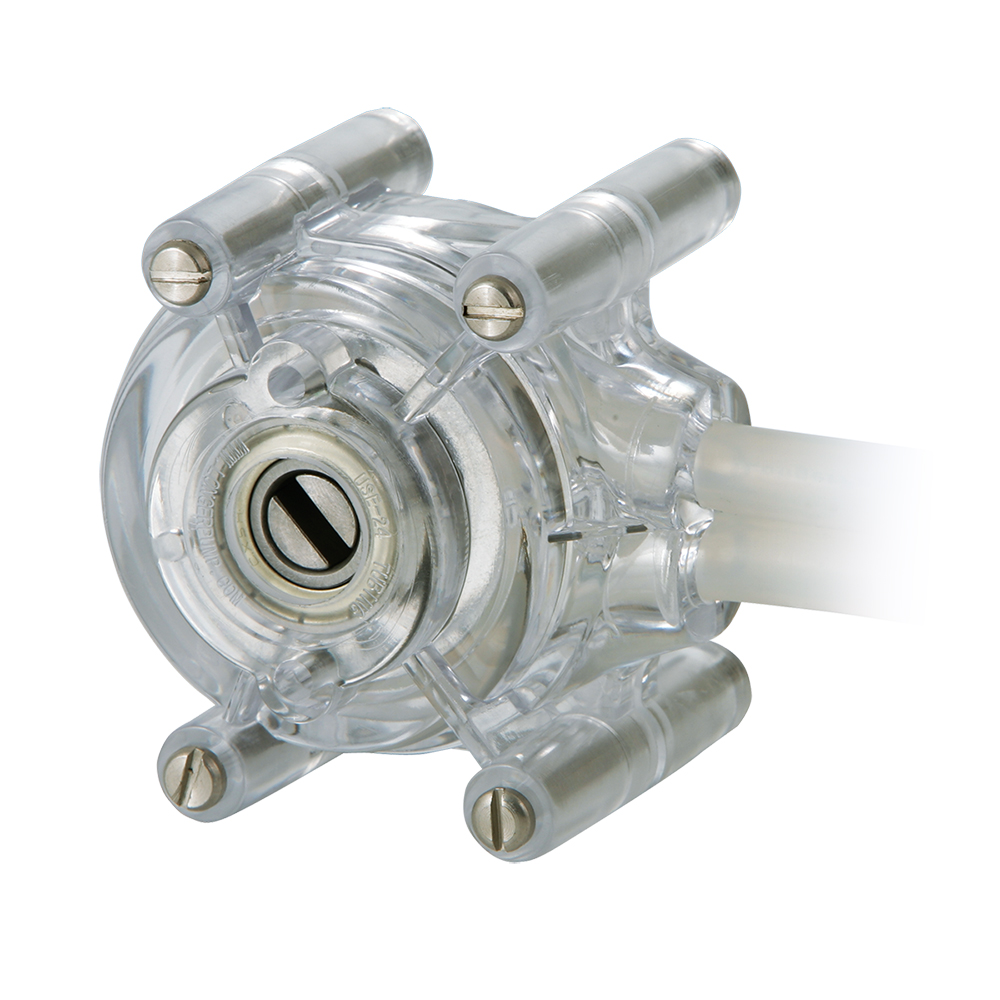

The Peristaltic Pump heads of BZ series (BZ15 and BZ25) can generate flow rates up to 1600 mL/min. Each pump head can only accommodate one specific size of tubing. The rollers are made of high quality stainless steel with good wear characteristics and the housing material is Polycarbonate (PC) with excellent chemical resistance.
Key Features
- Change tubing easily
- Acceptable tubing sizes: 14#, 16#, 25#, 17#, 24#
- Each pump head only for one specific size of tubing
- 3 rollers made of high quality stainless steel with good wear characteristics
- Housing made of PC and perfectly structured
- Multiple pump heads can be stacked for multiple channel application
- Autocalable and resistance to temperature up to 115 °C
Typical Applications
- Precision liquid handling or delivery
- Mainly designed for Laboratory and light industry applications
| Model Number | BZ15-13-A | BZ15-13-B | BZ15-13-C | BZ15-13-D | BZ25-13 |
| Number of Rollers | 3 | 3 | 3 | 3 | 3 |
| Roller Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Housing Material | PC | PC | PC | PC | PC |
| Rotational Rate | ≤600 rpm | ≤600 rpm | ≤600 rpm | ≤600 rpm | ≤600 rpm |
| Tubing (mm) | 14#, 1.6 ID, 4.8 OD | 16#, 3.2 ID, 6.4 OD | 25#, 4.8 ID, 8 OD | 17#, 6.4 ID, 9.6 OD | 24#, 6.4 ID, 11.2 OD |

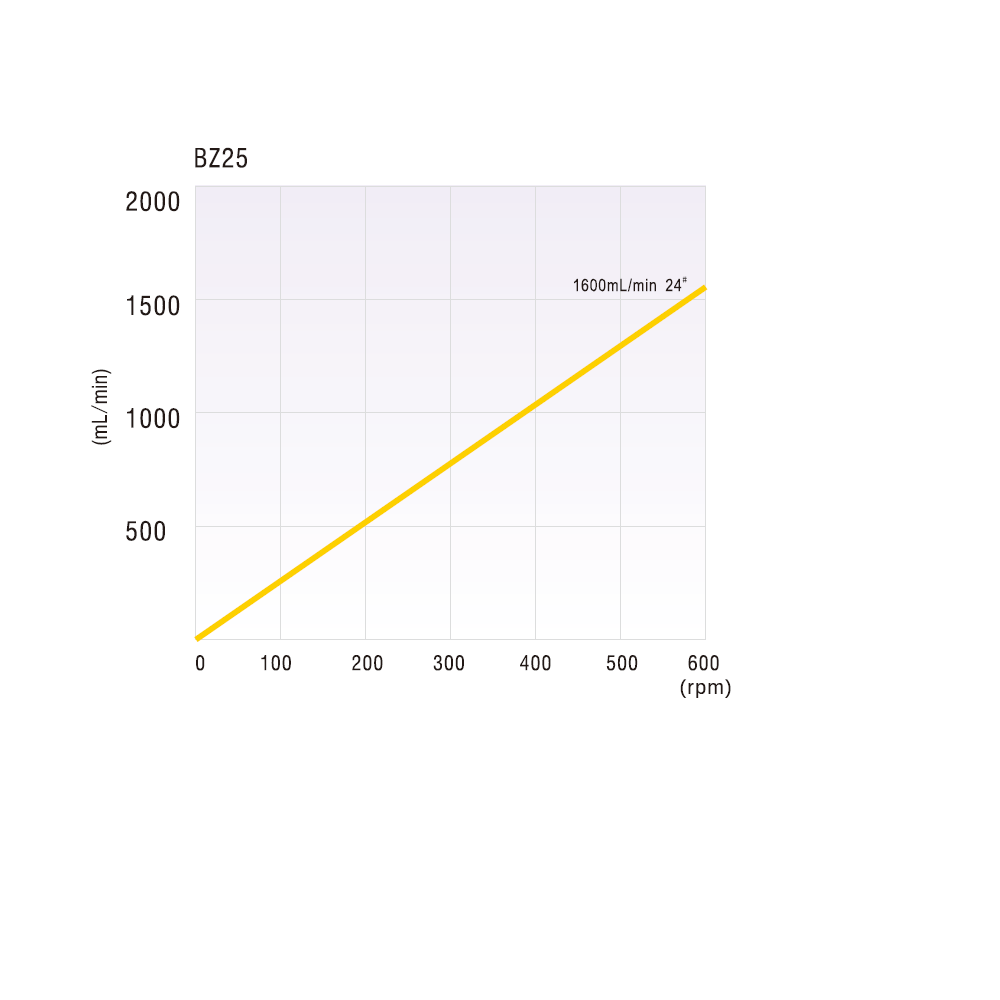

| Max Flow Rate | 150 mL/min | 460 mL/min | 960 mL/min | 1600 mL/min | 1600 mL/min |
| Weight | 0.31 kg | 0.31 kg | 0.31 kg | 0.31 kg | 0.31 kg |
- Downloadable Tubing Selection Guide
Peristaltic Pump Head, Flow Rate ≤1600 mL/min, Housing PC -BZ Series
- Brand: Longer
- Product Code: BZ15-13
- Availability: In Stock
-
$208.15
