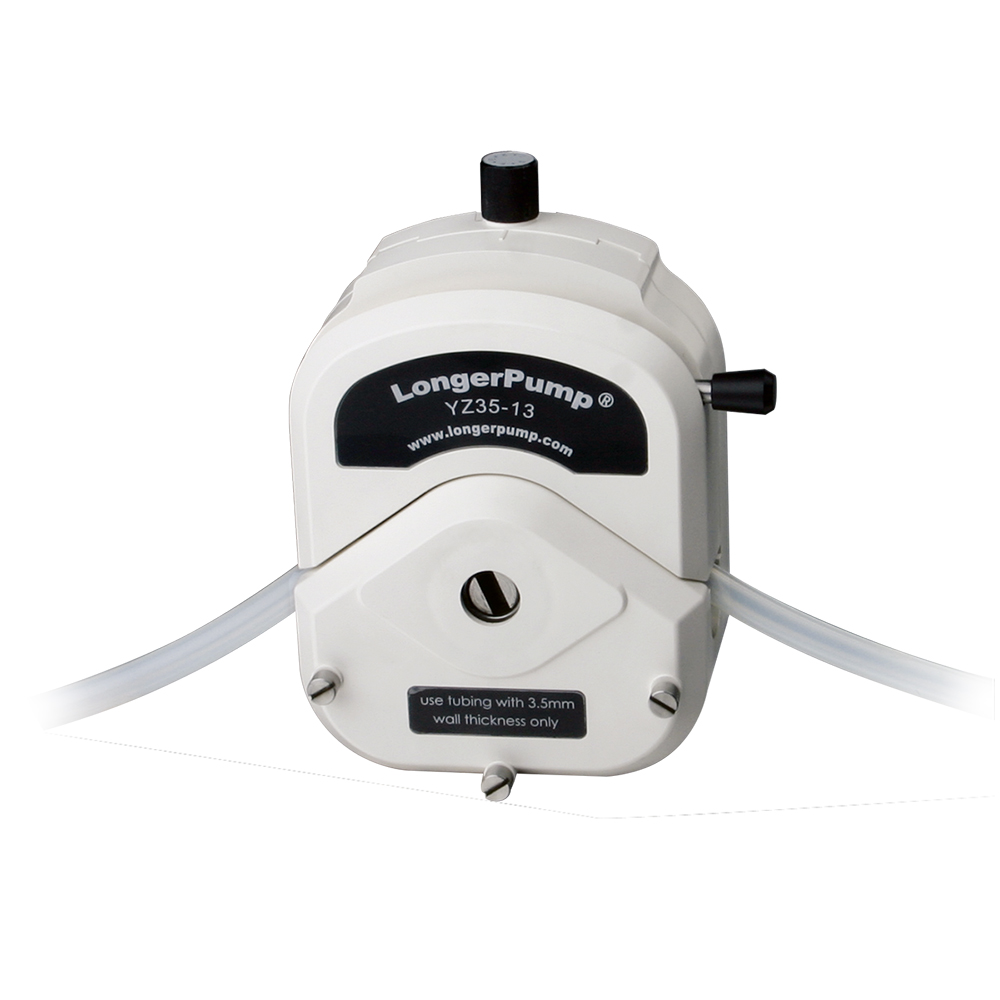

This  Peristaltic Pump head  (YZ35-13) can drive one or two channels with flow rates between 0.6 - 11 L/min, typically for industrial applications that require high flow rates.  The pump head has 3 rollers that are made of high quality stainless steel with good wearing properties.  The housing of the pump head is made of PSU with excellent chemical and temperature resistance.   These pump heads have a special tubing retention linkage which makes it even easier to load or change the tubing.

Key Features

• Change tubing easily and rapidly
• Acceptable tubing sizes: 73#, 82#
• Occlusion adjustment know available

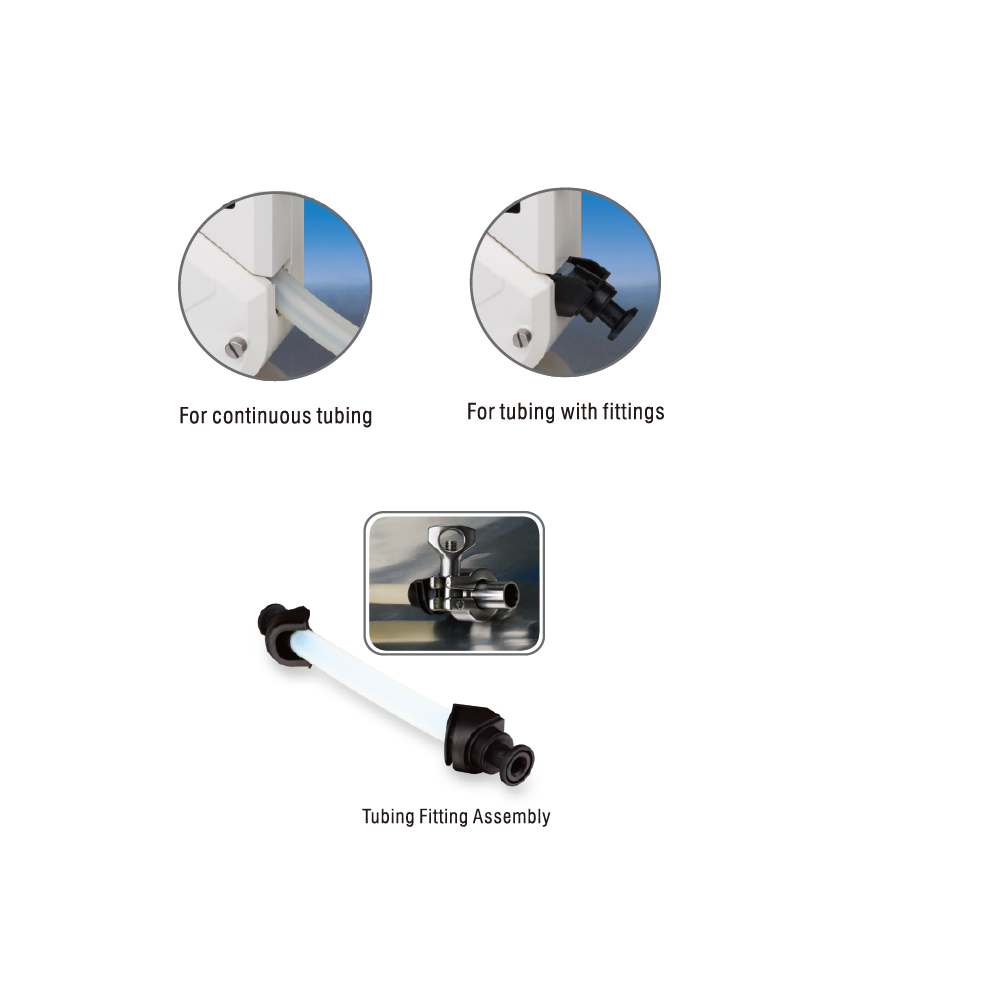

• Automatic tubing retention: continuous tubing or tubing with fitting
• The rollers are made of high quality materials with great wearing properties

• The housing of the pump head is perfectly structured and is made of PSU
• Autoclavable and resistance to high temperature (up to 150 °C)

Typical Applications

• Precision liquid handling or delivery
• Mainly designed for Laboratory and light industry applications
