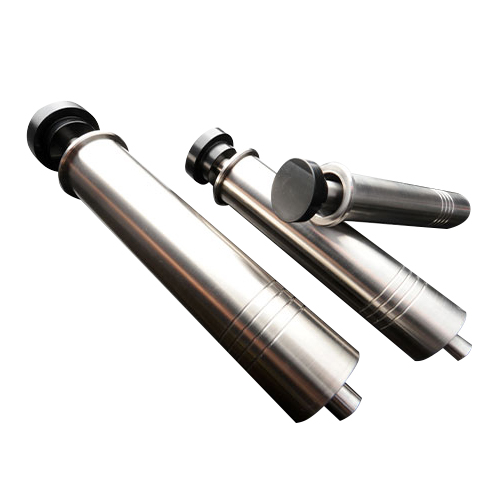

Designed for high-pressure applications, these syringes offer excellent resistance to aggressive liquids. Both the barrels and plungers are manufactured with 316 stainless steel for durability and reliability. Each syringe includes three Viton® O-rings: two on the plunger and one on the tip. They are fully autoclavable for sterilization.
Key Features:
- Constructed with #316 stainless steel barrels and plungers
- Equipped with Viton™ O-rings
- Fully autoclavable
- Maximum working pressure: 750 psi (8 mL syringes: 1500 psi)
- O-ring temperature range: -35°F to 400°F
Important Notes:
- Syringes are non-cancelable and non-returnable.
- Please verify availability and lead times before placing orders.
Typical Applications
- Precision liquid handling or delivery
- Liquid handling with high accuracy at a small flow rate
- For viscous, high pressure, high precision fluid dosing
- The stainless steel syringe is suitable for corrosive fluid
Pump Modes: NE-1010, NE-510, NE-511, NE-510L, NE-511L
| Syringe Volume (mL) | ID (mm) | Max. Flow Rate (mL/hr) | Min. Flow Rate (µL/hr) | Max. Flow Rate (mL/min) |
| 1 | 9.538 | 787.5 | 6.009 | 13.12 |
| 3 | 9.538 | 787.5 | 6.009 | 13.12 |
| 5 | 12.7 | 1396 | 10.66 | 23.26 |
| 8 | 9.538 | 787.5 | 6.009 | 13.12 |
| 20 | 19.13 | 3167 | 24.17 | 52.79 |
| 50 | 28.6 | 7080 | 54.03 | 118.0 |
Pump Modes: NE-8000
| Syringe Volume (mL) | ID (mm) | Max. Flow Rate (mL/hr) | Min. Flow Rate (µL/hr) | Max. Flow Rate (mL/min) |
| 1 | 9.538 | 1287 | 7.138 | 21.45 |
| 3 | 9.538 | 1287 | 7.138 | 21.45 |
| 5 | 12.7 | 2282 | 12.66 | 38.04 |
| 8 | 9.538 | 1287 | 7.138 | 21.45 |
| 20 | 19.13 | 5179 | 28.71 | 86.32 |
| 50 | 28.6 | 9999 | 64.18 | 192.9 |
| 100 | 34.93 | 9999 | 95.72 | 287.7 |
| 200 | 44.75 | 9999 | 157.2 | 423.3 |
| Thumb | File information |
 |
Stainless Steel Syringes Brochure.pdf File Size 3.48MB |
Syringe Pump Accessories, Stainless Steel Syringe 1mL to 200mL
- Brand: New Era Pump Systems
- Product Code: SYR-SS1
- Availability: In Stock
-
$500.50
