This programmable syringe pump (ASP500) is an intelligent syringe pump with touchscreen and features a wide range of pumping flow rates at 0.5 µL/min - 60 mL/min. It has withdrawal and infusion working modes and can control and synchronize the pumps to allow uninterrupted liquid transferring.   The programmable function allows users to customize special infusion/withdrawal procedures thus meeting complex applications requirements, such as trigger dispense, periodic dispense and multiple-step infusion etc.  It is compatible with glass syringes with a volume range of 50µL to 25mL.  The syringe pump can be installed vertically or horizontally thus meeting versatility requirement when integrated with various analytical systems such as  micro-manipulators and stereotaxic instruments for biological  research applications.

Key Features

• Detachable controller and separate pump units
• Programmable: complex infusion/withdrawal process
• Work modes: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion and continuous.
• Uninterrupted liquid transfer (two pumps work alternatively to dispense flow)

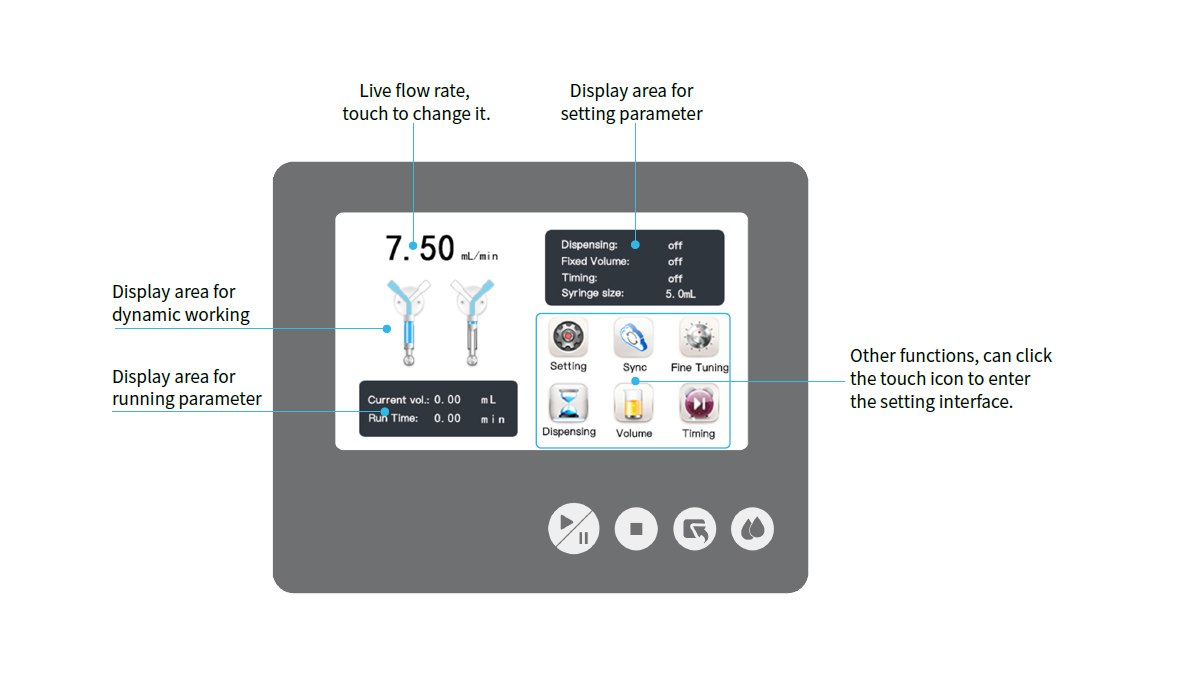

• 4.3-inch intuitive color LCD screen display
• Touchscreen and keypad control
• Friendly operation interface and multiple external control interfaces
• Memory function: Select resume operation or remain stopped when power returns after an interruption.

• Signal output: Start/stop output, cw/ccw output (open collector).
• Calibration: Intelligent calibration
• Fast forward & fast reverse: Infusion or withdrawal at the max. speed.

Typical Applications

• Nano- or micro-liter volume liquid handling or delivery
• In vivo sampling with micro-dialysis solution

• Integration with analytical instruments for sample preparation
• Auto sampling for in vitro diagnostics (IVD)
• Other precision metering applications
