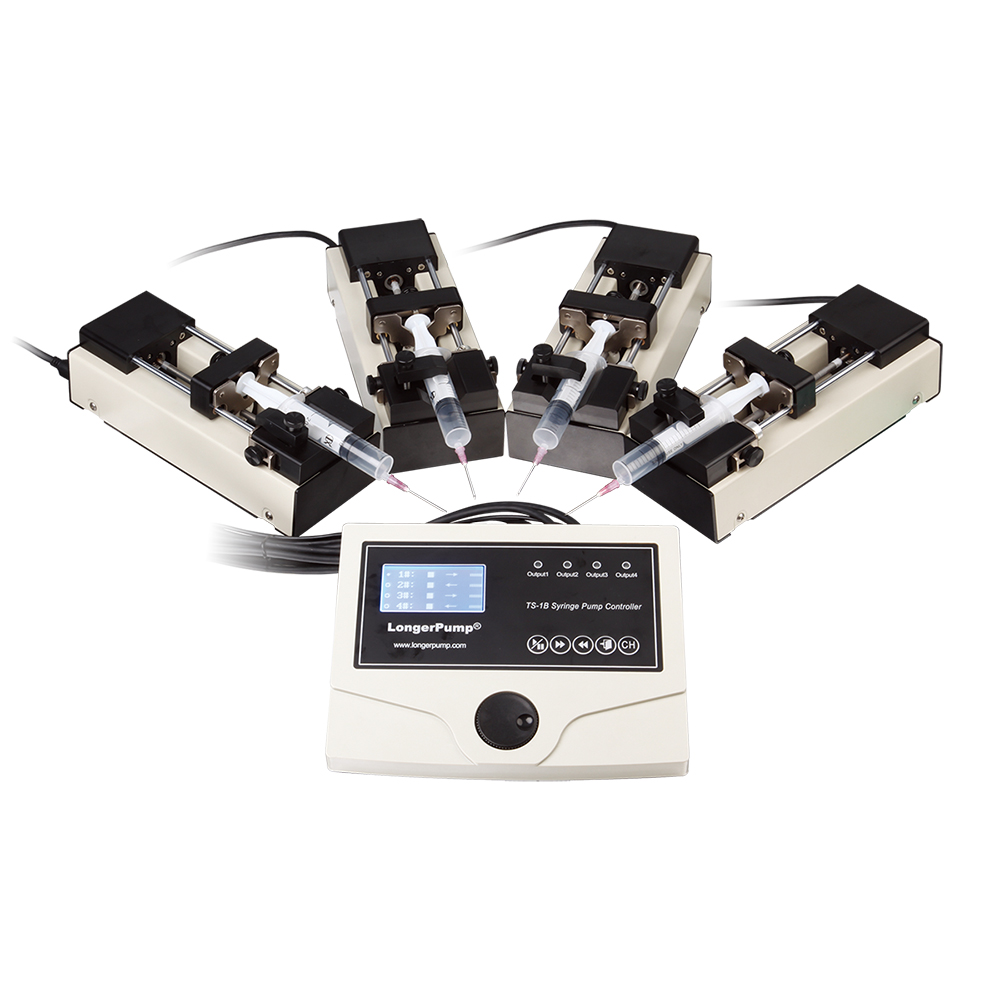

This four-channel micro syringe pump system (Model TS-1B/W0109-1B) features a wide range of pumping flow rates at 0.764 nL/min - 1.325 mL/min. The pump combines high precision, compact size and multiple functions with ease of operation. It is compatible with glass syringes with a volume range of 5 µL to 60 mL. This micro syringe system drives four-channel syringes independently, and each drive unit is capable of generating an accurate linear plunger velocity in the range of 7.9 µm/min - 79.4 mm/min. The syringe pump can be installed vertically or horizontally thus meeting versatility requirements when integrated with various analytical systems such as micro-manipulators and stereotaxic instruments for biological applications.

Key Features

Syringe selection: Built-in syringe branches, sizes and IDs for selection
User-defined syringes: Save 4 IDs of user-defined syringes
Work mode: Infusion, withdrawal, infusion/withdrawal, withdrawal/infusion, continuous
Parameters setting: Set dispensing volume, infusion time, withdrawal time, pause time and copy number
Display setting: Display volume, flow rates or linear speed
Fast forward & fast backward: Infusion and withdraw liquid at full speed
Calibration: Acquire accurate volume through calibration
External control: Accept pulse signal to control the start/stop of the pump
Communication: Computer control available through RS-485 interface

Typical Applications

Nano- or micro-liter volume liquid handling or delivery
In vivo sampling with microdialysis
Integration with analytical instruments for sample preparation
Auto sampling for in vitro diagnostics (IVD)
Other precision metering applications

Accuracy	±0.5% RSD at >30% of the maximum infusion distance
Compatible Glass Syringes	5 µL - 60 mL
Linear Plunger Velocity	7.94 µm/min - 79.4 mm/min
Maximum Infusion Distance	90 mm
Adjustable Velocity Resolution	7.9 µm/min
Distance Resolution	0.165 µm
Linear Force	>90 N
Setting Mode	Membrane keypad and rotary coded switch
Display	128 x 64 graphic LCD
External Control	Start/Stop control, fast forward control, fast reverse control
Communication Interface	RS-485
Power Supply	100 - 240 VAC or 12 VDC
Operating Condition	Temperature 0 - 40 °C, Relative humidity < 80%
Power Consumption	<40 W
Control Unit Dimensions (L x W x H)	235 x 178 x 74 (mm)
Control Unit Weight	0.9 kg
Drive Unit Dimensions (L x W x H)	245 x 100 x 95 (mm)
Drive Unit Weight	1.3 kg

Syringe Selection and Flow Rate

Syringe (mL)	Syringe ID (mm)	Flow Rate (μL/min - mL/min)
1	4.72	0.139 - 1.39
2	9.00	0.505 - 5.05
5	13.10	1.07 - 10.7
10	16.60	1.718 - 17.18
20	19.00	2.251 - 22.51
30	23.00	3.298 - 32.98
60	29.14	5.295 - 52.95

Thumb	File information
	TJ-3A TS-1B Syringe Pump Datasheet.pdf File Size 1.55MB

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

Captcha

Please complete the captcha validation below

Syringe Pump System, Flow Rate 0.138 µL/min - 52.95 mL/min, Infusion/Withdrawal, Max 4 Channels, TS-1B/W0109-1B

Product Code: TS-1B/W0109-1B
Availability: In Stock

$4,140.00

Available Options

TS-1B Model

TS-1B and 1 unit of W0109-1B drive

TS-1B and 2 units of W0109-1B drive (+$2,038.00)

TS-1B and 3 units of W0109-1B drive (+$4,076.00)

TS-1B and 4 units of W0109-1B drive (+$6,118.00)
