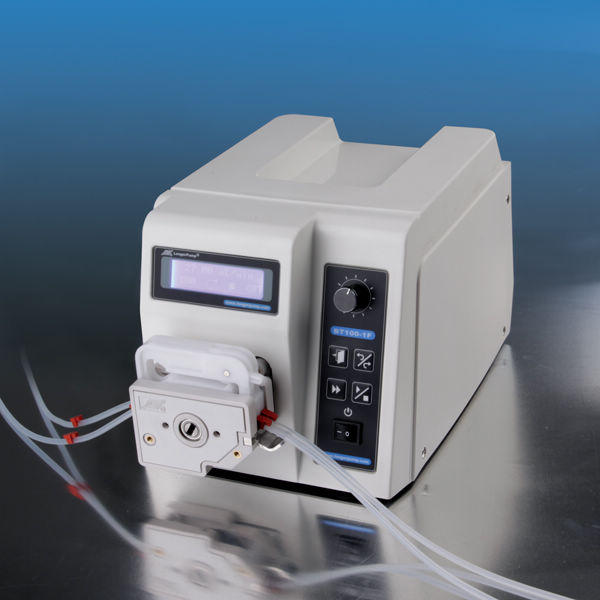

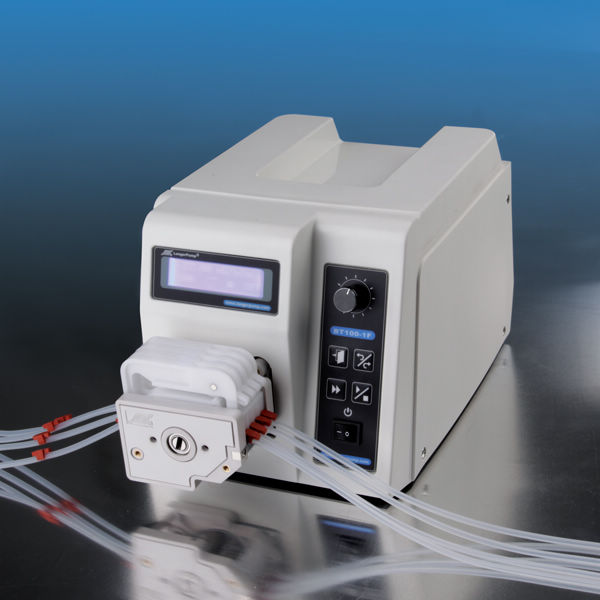

Peristaltic Pump, Dispensing Volume 0.01 mL - 9.99 L, Maximum Flow Rate 500 mL/min, Maximum 4 Channels -BT100-1F

This dispensing peristaltic pump (BT100-1F) can generate 0.01 mL - 9990 mL dispensing volumes at adjustable flow rates in the range of 200 nL/min - 500 mL/min. The pump can continuously perform the dispensing function at pre-set dispensing volumes, in dispensing time and batch cycles. The flow rate calibration and dispensing calibration ensure the high accuracy and precision. The pump speed can be controlled through the control panel (128 x 32 LCD), an external control interface or a RS485 interface, and the running parameters are saved automatically. The BT100-1F peristaltic dispensing pump is mainly design for laboratory use.

Key Features

Compatible pump heads: YZ1515X, YZII15, YZ2515X, YZII25, DMD15-13, DG15-24, DG15-28, DG-1/DG-2/DG-4
Micro flow rates transferring: The smallest flow rate can reach 0.2 μL/min
Dispensing function: dispense liquid at desired volumes, dispensing time and batch cycles
Back suction function: 0- 99.9 min, resolution is 0.1 s
Operating mode: Membrane keypad and rotary encoded switch
Rate control: The speed can be adjusted manually or automatically through external control interface
Prime key: For fast filling and dispensing at full speed
Power-off memory: Return to previous state when power on
Calibration function: The flow rates and the dispensing volume scan be calibrated to ensure the accuracy
Communication function: the pump can be controlled by computer through RS485 communication interface

Typical Applications

Precision liquid handling or delivery
Bio-lab applications
Suitable for laboratory and industrial application

Dispensing Demo

Driver Model Number	BT100-1F
Rotational Rate	0.1 - 100 rpm, reversible
Rotational Rate Precision	0.1 rpm
Control Mode	Control panel, external signal control and communication control are available
Display	LCD
Dispensing Volume	0.01 mL to 9.99 L
Copy Number	0 to 9999; 0 indicates unlimited cycles
Pause Time	0.1 s - 99.9 min; 0.1 s resolution
External Control	Start/stop, direction and speed control (4-20mA, 0-5V, 0-10V or 0-10kHz corresponding to 0.1-100 rpm)
Communication Interface	RS485
Power Supply	90 - 260 VAC, 50/60 Hz
Power Consumption	<40 W
Operation Temperature	Temperature 0 - 40 °C
Humidity	<80%
Dimensions (L × W × H)	285 × 207× 180 (mm)
Pump Weight	3.8 kg
IP rating	IP 31

Pump Head Selection

Pump Head	Tubing (#)	Flow Rate (per channel)	Weight (Kg)
YZ1515x, YZII15	13#, 14# , 19#, 16#, 25#, 17#, 18#	7μL/min-380mL/min	4.2
YZ2515x	15# , 24#	0.17-267 mL/min	4.2
YZII25	15#, 24#, 35#, 36#	0.17-500 mL/min	4.2
DG-(1,2,4), 6 rollers	WT: 0.8-1.0 mm, ID: ≤3.17 mm	0.25 μL/min -48 mL/min	4.3
DG-(1,2,4), 10 rollers	WT: 0.8-1.0 mm, ID: ≤3.17 mm	0.2μL/min -32 mL/min	4.3
DMD15-13-B	13#, 14#, 19#, 16#, 25#	350 mL/min	4.2
DG15-24 (2 channels)	16#, 25#, 17#	300 mL/min	4.6
DG15-28 (2channels)	13#, 14#, WT: 0.8-1.0 mm, ID: ≤3.17 mm	75 mL/min	4.5
