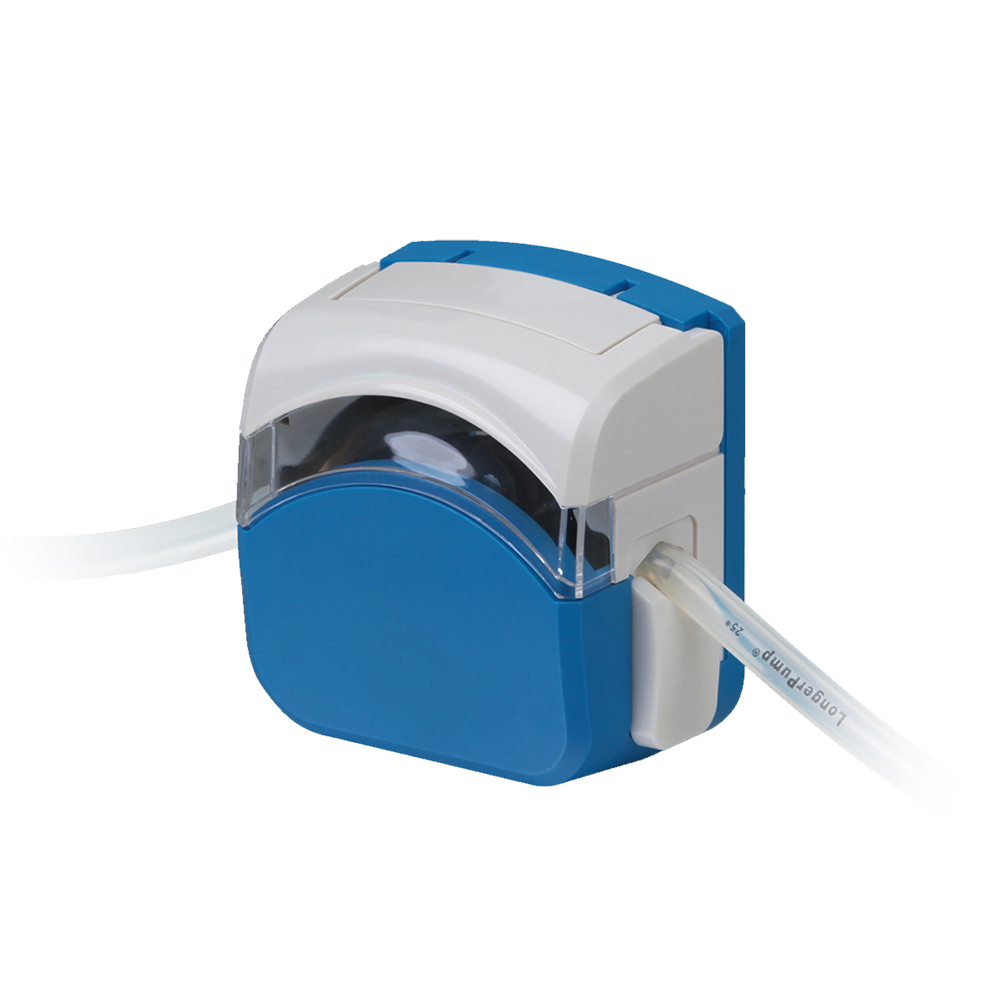

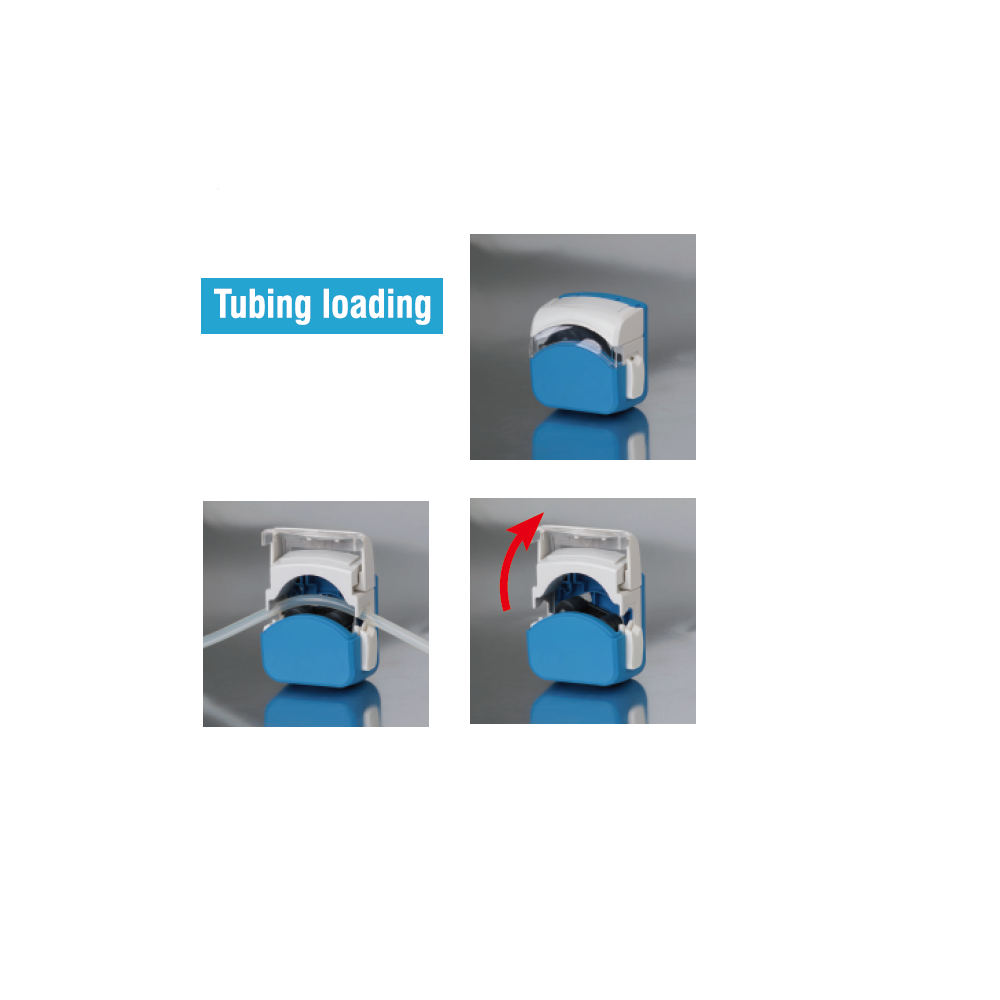

The flip top pump heads LP-FG15-13 and LP-FG25-13 have a distinctive design and a unique installation method for single channel liquid delivery. The pump heads are to be mounted on a mounting plate, that is fixed to the tube pump. Once the mounting plate is attached to the tube pump, the pump head is easily taken on and off by pressing the flap and turning it a bit - no tools required. Users install the tubing by opening the flip, inserting the tubing and closing the flip again. The LP-FG15-13 and LP-FG25-13 pump heads can be used for the same peristaltic pumps that use the YZ1515x and YZ2515x, as they have similar performance.

Key Features

Easy to replace tubing and load on drivers
Acceptable tubing sizes: #13, 14, 16, 17, 18, 19, 25
Automatic tubing retention
Roller numbers: 3 (PA6 Nylon)
Maximum flow rate: 2150 mL/min

Typical Applications

Precision liquid handling or delivery
suitable for all kinds of industry and lab applications

Model Number	FG15-13-A	FG15-13-B	FG25-13-A	FG25-13-B
Shaft	Short	Long	short	Long
Number of Rollers	3	3	3	3
Roller Material	PA6	PA6	PA6	PA6
Housing Material	IXEF	IXEF	IXEF	IXEF
Rotational Rate	≤600 rmp	≤600 rmp	≤600 rmp	≤600 rmp
Tubing	#13, 14, 16, 17, 18, 19, 25	#13, 14, 16, 17, 18, 19, 25	#13, 14, 16, 17, 18, 19, 25	15# 24#

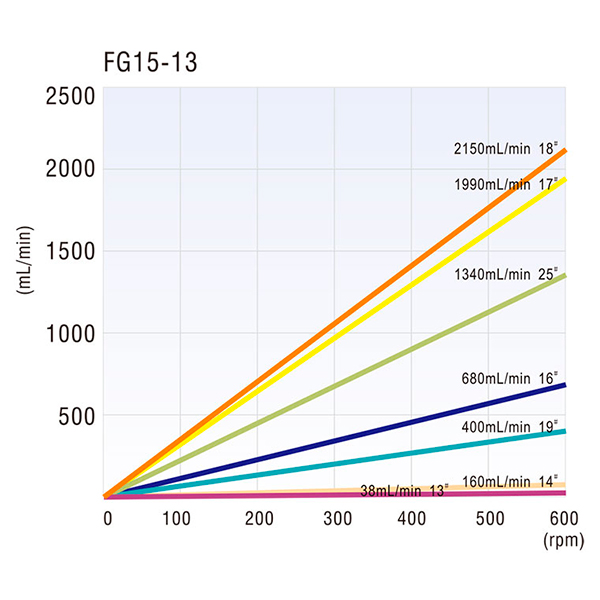

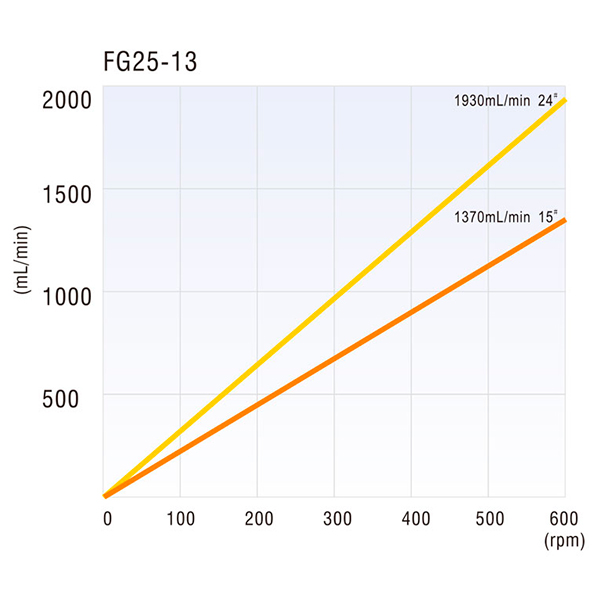

Max Flow Rate	2150 mL/min	2150 mL/min	2150 mL/min	1930 mL/min
Weight	0.28 kg	0.28 kg	0.28 kg	0.28 kg
