• Piezoelectric Micro Pump Testing Kit, For Liquid or Gas, Maximum Flow Rate 25 mL/min @ 60 Hz or 120 Hz
    Piezoelectric Micro Pump Testing Kit, For Liquid or Gas, Maximum Flow Rate 25 mL/min @ 60 Hz or 120 Hz Piezoelectric Micro Pump Testing Kit, For Liquid or Gas, Maximum Flow Rate 25 mL/min @ 60 Hz or 120 Hz

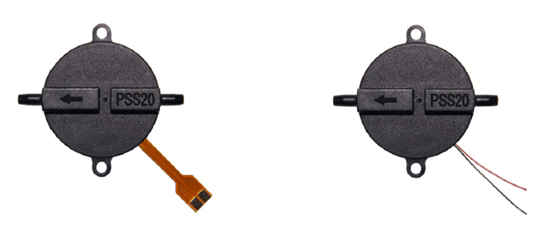

The piezoelectric micro pump is a miniaturized mechanical displacement pumping device that consists of a piezoelectric actuator and passive check valves.  When voltage is applied (inverse piezoelectric effect), the piezoelectric actuator expands or contracts which results in pumping action from the pump chamber. The check valves on both sides of the pump chamber define the flow direction for each pumping stroke.   The driving frequency and pumping stroke of the pump determine the average flow rate.  This small and lightweight piezoelectric micropump is suitable for both liquid or gas flow control.  The testing kit includes micro pump and its controller.

Key Features

  • Disposable and lightweight: 20 g
  • Low noise and low power consumption: < 80 mW
  • Pump body made of polyethylene terephthalate (PET): compatible with most chemicals
  • Self-priming: Suction pressure >3.0 kPa @ 60 Hz and 260 Vpp
  • Adjustable flow rates: by varying voltages and/or driving frequencies
  • Long lifetime: 5000 hrs
  • Wide operating temperature range: -10 °C to 75 °C.
  • Maintenance free

Typical Applications

As an essential part of precision control systems,  the piezoelectric pumps are perfect for portable, battery-operated medical devices in various applications, such as medical drug delivery,  point-of-care testing (POCT), in vitro diagnostics (IVD), cell culture, and tissue engineering.   Also, excellent gas pumping capability renders the pump with opportunities in the environmental and industrial hygiene applications.  More details can be found in the application notes (all for research use only).


 ParametersA. Large-Flow
B. High Self-Priming
C. High Back-Pressure
Max. Flow Rate [Water]20 mL/min @ 60 Hz12 mL/min @ 120 Hz9 mL/min @ 60 Hz
Max. Back-Pressure [Water]15 kPa @ 60 Hz15 kPa @ 60 Hz25 kPa @ 60 Hz
Max. Self-Priming [Water]3.5 kPa @ 60Hz7.0 kPa @ 60 Hz3.5 kPa @ 60 Hz
Max. Flow Rate [Gas]
25 mL/min @ 120 Hz16 mL/min @ 120 Hz12 mL/min @ 120 Hz
Max. Back-Pressure [Gas]
3.0 kPa @ 120 Hz3.0 kPa @ 120 Hz5.0 kPa @ 120 Hz
Max. Self-Priming [Gas]
3.5 kPa @ 60 Hz7.0 kPa @ 60 Hz3.5 kPa @ 60 Hz

Other OEM options

Please contact us to discuss possible solutions to your specific applications. The flow rates of other OEM products range from 0 to 5000 mL/min and the maximum backpressure is up to 50 kPa.

Micro Pump TypesMaximum Flow Rate (mL/min)Maximum Back-Pressure (kPa)
PSD-200-40>40
PSD-2740-200>45
PSF-27200-500>50
PDX500-5000>45



Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Piezoelectric Micro Pump Testing Kit, For Liquid or Gas, Maximum Flow Rate 25 mL/min @ 60 Hz or 120 Hz

  • $64.28
