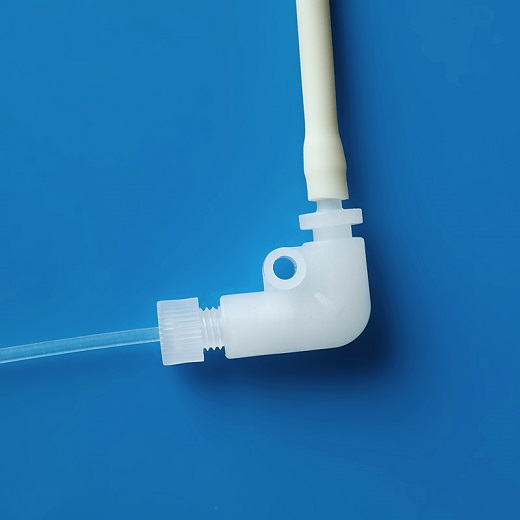

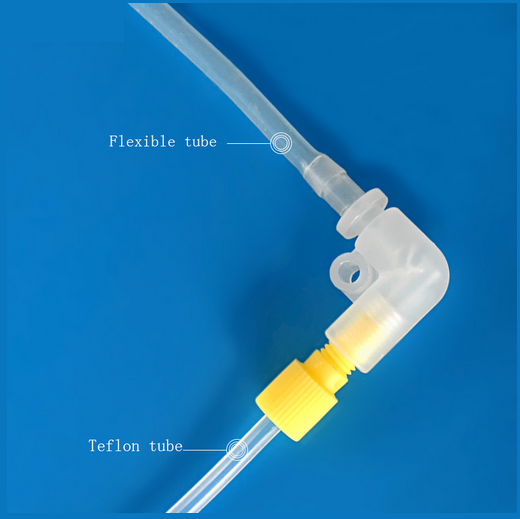

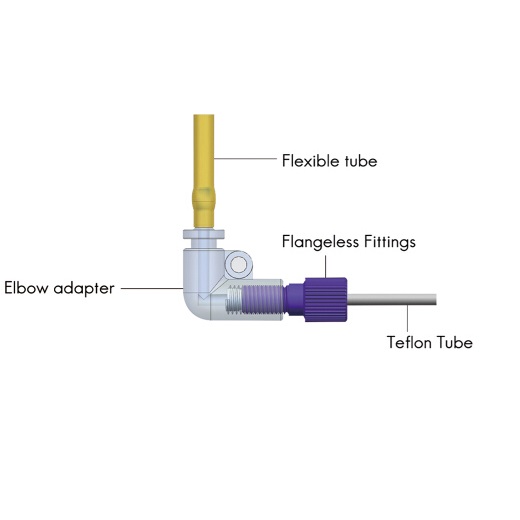

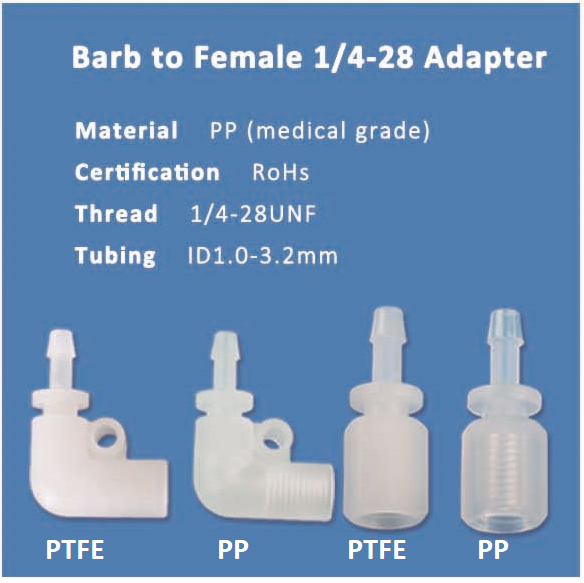

Medical grade tubing barb to Female 1/4''- 28 Elbow threaded plastic joint for low pressure applications (up to 0.8 MPa). This product has one 1/4''-28 internal threads that accommodate flange joint with flanged tubing or coned nut with ferrule. The diameter of the internal bore is about 2.46 mm. The barbed end with a diameter of 3.5 mm can fit with tubing ID 2.5-3.5 mm. There are two materials available: PP or PTFE. This item includes 30 pieces of the adapter.
| Fitting and Connector | |
| Model No. | ASP-05-32-PP/PTFE |
| Material | PP/PTFE (Medical Grade) |
| Color | Natural PP/PTFE |
| Thread | 1/4''-28 UNF |
| Pressure Rating @ 20 ºC | 116 PSI/0.8MPa |
| Tubing OD | 3.2/3.175/3.0/2.5/2.0/1.6 mm |
| Qty. | 30 /Pk |
| Barbed End | Tubing ID 2.5-3.5 mm |
Adapters & Connectors: Barb to Female 1/4''-28 Elbow Plastic Joint, PP/PTFE Material, 30 Pieces/Pk
- Product Code: ASP-05-32-PP/PTFE
- Availability: In Stock
-
$65.00
