• Pressure Regulator Flow Controller Multi-Functional 8-Channels For Microfluidics
    Pressure Regulator Flow Controller Multi-Functional 8-Channels For Microfluidics Pressure Regulator Flow Controller Multi-Functional 8-Channels For Microfluidics Pressure Regulator Flow Controller Multi-Functional 8-Channels For Microfluidics

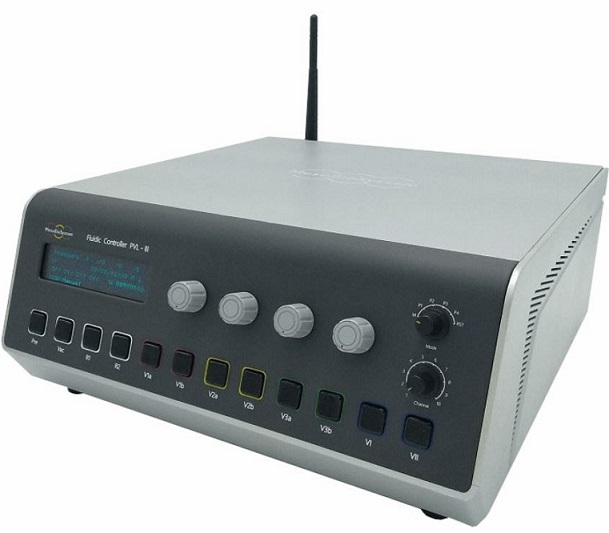

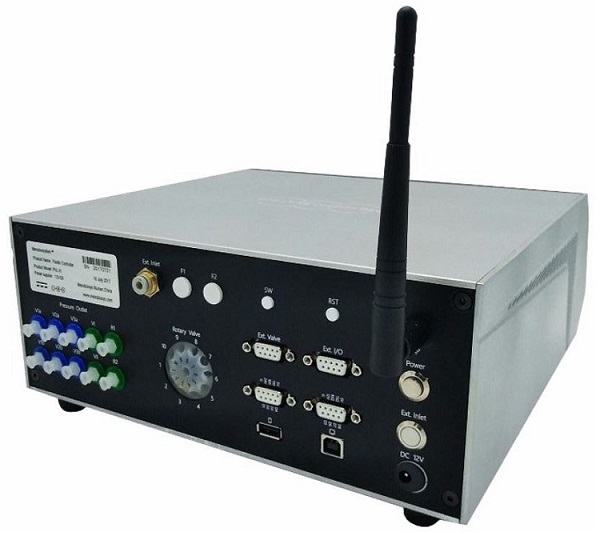

The pressure regulator generates an accurate pressure or vacuum that can be used to drive a liquid flow at a stable flow rate. The 8-channel, highly integrated pressure controller has built-in pressure/vacuum pumps, solenoid valves, pressure regulators, a rotary valve, and pressure sensors. The system is able to simultaneously generate up to 4 independent channels to supply either positive pressure or vacuum (1 independent channel supplies 2 identical pressure outputs). This system can work as a standalone machine controlled by the front buttons and knobs, and it can also be controlled by the included computer program communicated through a TTL serial communication interface.

Key Features

  • Easy to use and quick to set up
  • Built‐in pressure and vacuum generators
  • External pressure source connector available
  • Multi-channel liquid distributors
  • Multi-channel control of external valves
  • Analogical and digital input/output
  • Real-time pressure/switch monitors
  • Two ports available to communicate with flow rate sensors
  • Panel control of integrated elements
  • Programmable off‐line operation
  • Online control with graphic interface
  • TTL Serial Output
  • Bluetooth and wireless module
  • 4KB EPPROM (for numerical sequence storage)
  • 1G SD card memory (for data storage)
  • User graphical interface (GUI)
  • Network operation: The remote control is feasible with Bluetooth, wireless or Ethernet using smartphones, tablets and other terminals
  • Easily communicate with other instruments and commonly used devices such as NI-­DAQ modules, CCD cameras, spectrometers, electrochemical station, etc. for monitoring or feedback control.

Typical Applications

  • Micro-liter volume liquid handling or delivery
  • In vivo sampling with microdialysis solution
  • Integration with analytical instruments for sample preparation
  • Auto sampling for in vitro diagnostics (IVD)
  • Other precision metering applications
  • Droplet generation application


Pressure Pump4.0 mbar - 0.9 bar
Vacuum Pump-0.5 bar - 4.0 mbar
Pressure Regulators4, with accuracy +/-1 mbar
Solenoid Valves8, with response time 0.2s
Release Valves2, with response time 0.2s
Rotary Valve10 channels, with response time 1 s
Voltage Outputs8, up to 12 V
Analog Inputs/Outputs3/3
RS232 Connectors
2, with 5, 12, and 24 VDC power supply
Gas Flow Rate0 - 1.1 L/min
Liquid Flow Rate0 - 10 mL/min (depends on resistance)
Working Power12 VDC and 4 A
Working Temperature10 - 50 ℃
Working Humidity20-80% RH
Minimum PC ConfigurationINtel Core i5-4xxx, 4G RAM, Win7, USB2.0
Support SoftwareC++, Matlab, Android, Arduino
Overall Dimension
275 mm x 285 mm x  110 mm
Weight
6 Kg





Write a review

Note: HTML is not translated!
    Bad           Good

Pressure Regulator Flow Controller Multi-Functional 8-Channels For Microfluidics

  • Product Code: APS-FC-PVL3
  • Availability: 2-3 Days
  • $9,856.80
