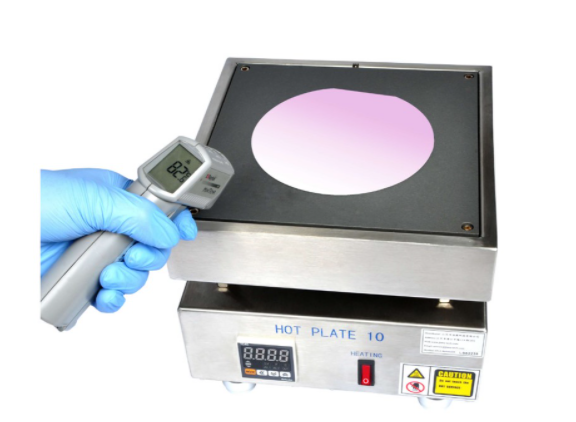

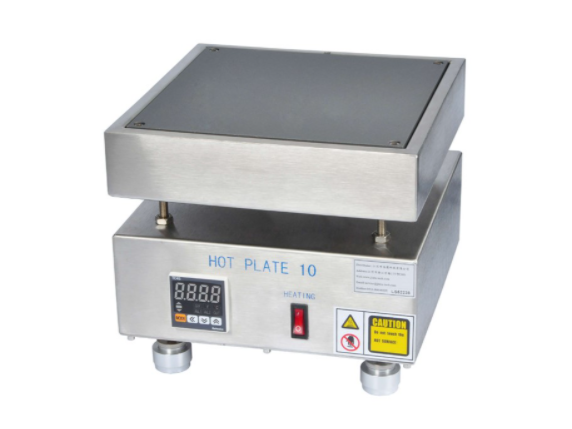

ASP-HP10 is a compact and easy-to-use hot plate designed for general lab uses, especially for photolithography process. It features high temperature control accuracy and uniformity. It can be placed into a glovebox for semiconductor industry users.
Key Features

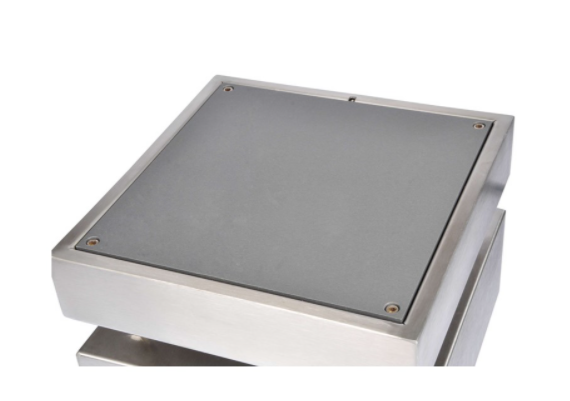

- Heating surface is made of oxidized Aluminum (excellent corrosion resistance)
- Stainless steel chassis
- High uniformity of control temperature
- High-precision digital display temperature control table control, ±1°C
- Independent heating circuit control for heating output
- Separated heating element and control components, ensuring safety;
- Temperature can reach 300 °C
- Heating plate size can be customized
- 2-year limited warranty
Typical Applications
- Semiconductor process
- Patterning,
- Coating process
- Photolithography
- Glovebox
| Product Model | ASP-HP10 |
| Plate Working Area | 220 mm x 220 mm |
| Temperature Range | Room Temp -300 °C |
| Temperature Resolution | 0.1°C |
| Temperature Precision | ± 1 °C |
| Temperature Uniformity | <±2% |
| Power /Current | 110-220VAC, 50/60Hz, 5A |
| Heating Power | 1000 W |
| Equipment Dimension | 256 mm x 230 mm x 230mm |
Laboratory Compact Hot Plate ASP-HP10 for Photolithography
- Brand: Aurora Pro Scientific
- Product Code: ASP-HP10
- Availability: In Stock
-
$2,018.00
