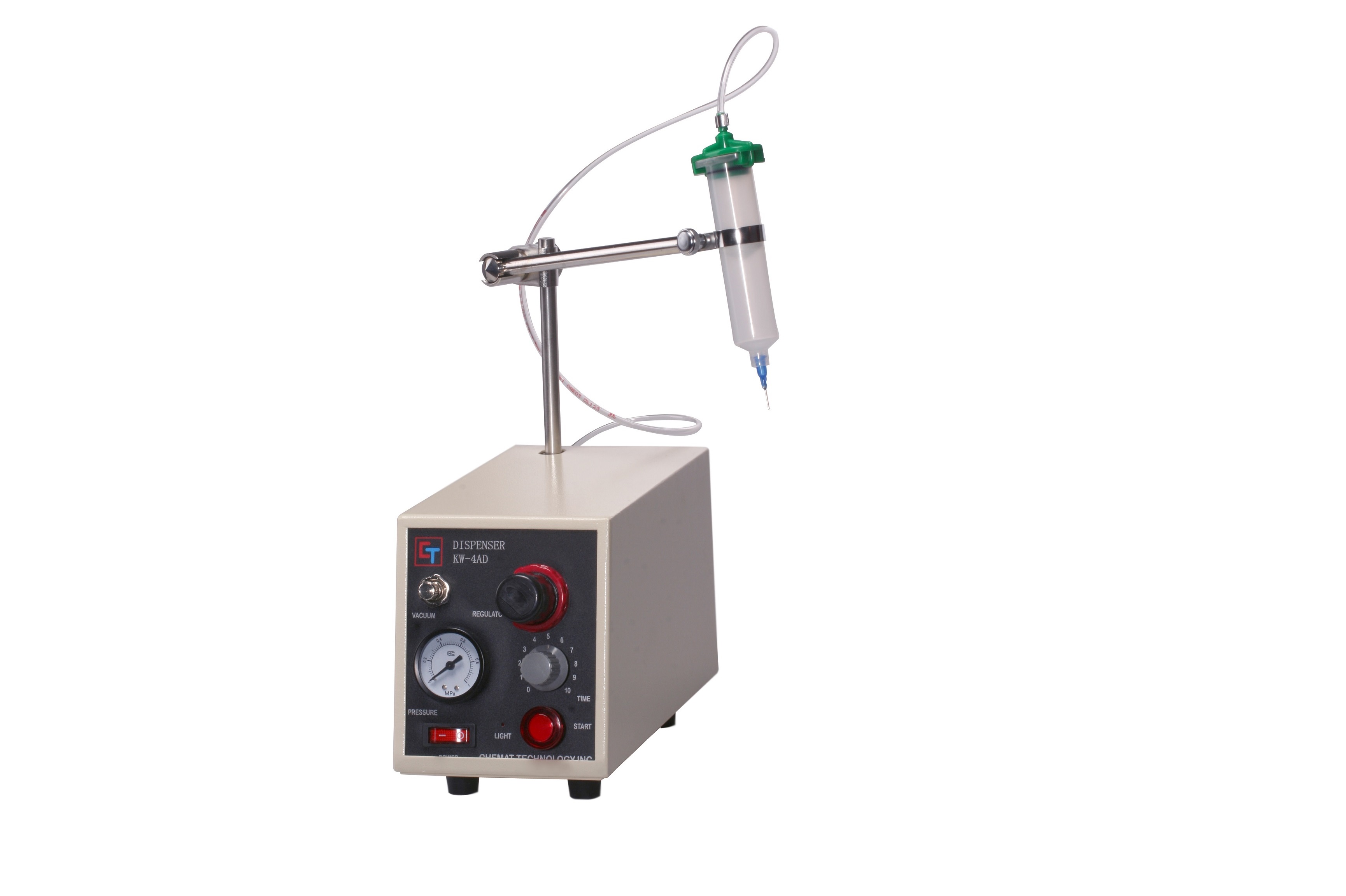

This product is a compact and easy to use digital fluid dispenser for precisely dispensing spin -on liquid onto the substrate to obtain uniform deposition of tin films and coatings. It uses disposable syringes and allows easy change of the dispensing liquids without any tedious cleaning, eliminates potential contamination from other carryover solutions. The KW-4AD dispenser package includes KW-4D dispenser, power cord, barrel stand, barrel adapter assembly, barrel with piston and dispensing tip and operating manual.
Key Features
- Compact size
- Simple and user friendly design
- Input air pressure: 80 to 100 PSIG
- Adjustable output air pressure: 0 to 80 PSIG
- Dispensing time: 0.005-30 seconds
- Manual vacuum control
- Multiple voltage options (115-220VAC)
- Dimensions: 4.5'' x 11'' x 69''
- Pneumatic port: 1/4'' OD tubing
- The viscosity of fluids can be used: 0.600 cP (Benzene) to 10,000 cp (Honey) at 25°C
- One-year limited warranty
Typical Applications
- Semiconductor process
- Patterning,
- Coating process
| Thumb | File information |
 |
KW-4AD Fluid Dispenser Manual.pdf File Size 826.65KB |
CHEMAT Benchtop Digital Fluid Dispenser KW-4AD
- Brand: CHEMAT Scientific
- Product Code: ASP-KW-4AD
- Availability: In Stock
-
$2,500.00
