• S6A Chemical Feed Flow Meter, ProSeries® Ultrasonic
    S6A Chemical Feed Flow Meter, ProSeries® Ultrasonic S6A Chemical Feed Flow Meter, ProSeries® Ultrasonic

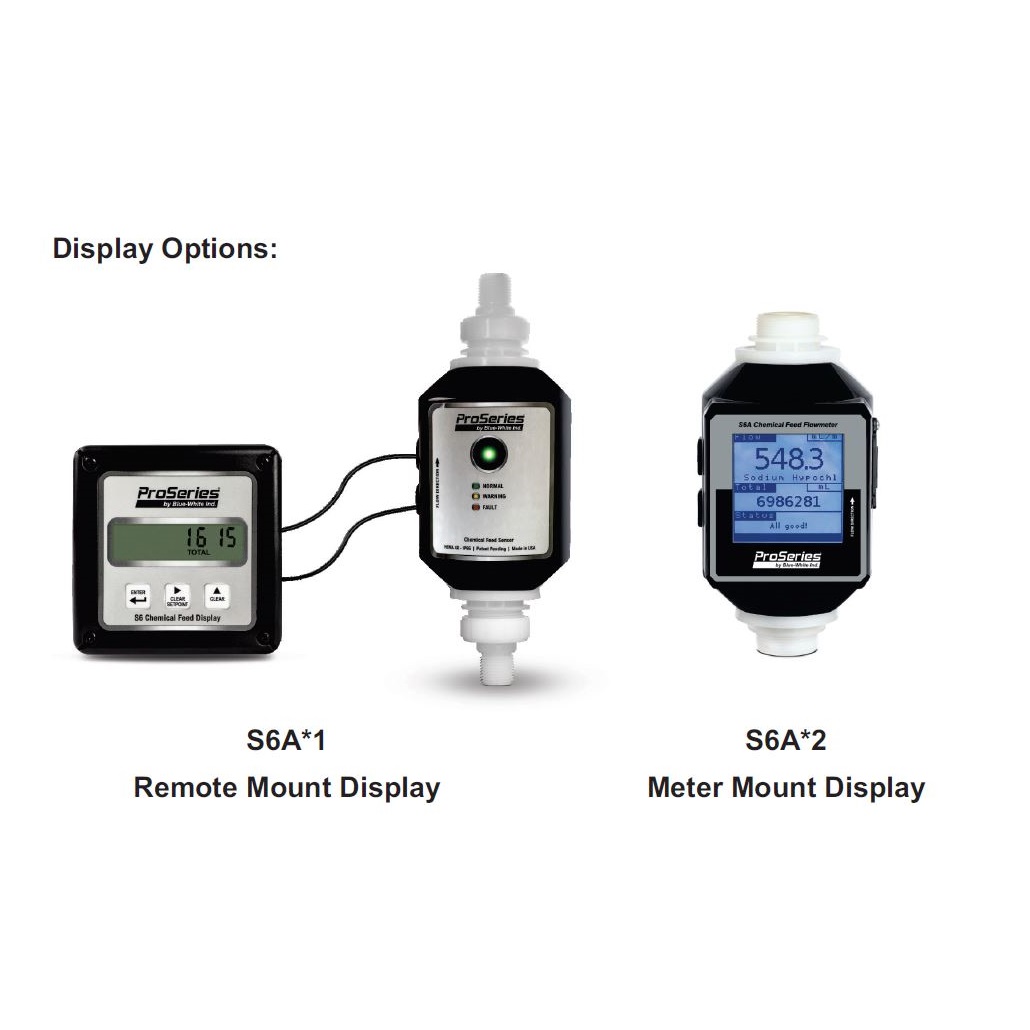

Ultrasonic flow meters utilize sound waves to measure the velocity of a fluid from which the volumetric flow rate can be calculated. This product does not include any moving parts and thus are more reliable, accurate and provide maintenance free operation. The pressure drop across the flow meter is less than 1 PSI and it has process control features. There are eight pre-calibrated chemical profiles are available in this flow meter. Also, the product has two mount display options: meter mount display and remote mount display.

Key Features

  • Flow Range: 10 – 5,000 mL/min (0.158 – 79.2 GPH)
  • Flow Range: 100 – 10,000 mL/min (1.58 – 158.5 GPH)
  • Inline pipe fittings for easy installation
  • Configurable via Blue-Central® desktop software (Free download)
  • Isolated 4-20 mA output – fully configurable
  • 0-10000Hz Pulse output – fully configurable
  • User configurable flow rate and total set-point triggers
  • Flow-rate readings as low as 10 mL/min
  • Included wetted end fittings allow for more than 14 inlet and outlet configurations
  • True unions for ease of maintenance
  • Wetted components constructed out of PVDF and PEEK
  • Quick visual inspection with built in status LED light
  • Process control via configurable solid state relay, which can be configured to close
  • or open trigger at a flow-rate or to flow total for batching operation
  • NEMA 4X (IP66) washdown
  • 2 year limited warranty

Typical Applications

  • Flow verification
  • Chemical metering
  • Fluid metering
  • Leak detection
  • Ultra-pure water
  • Polymer feed




Write a review

Note: HTML is not translated!
    Bad           Good

S6A Chemical Feed Flow Meter, ProSeries® Ultrasonic

  • Brand: Blue-White
  • Product Code: BW-S6A
  • Availability: In Stock

Available Options
