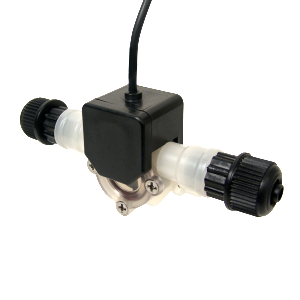

This product is designed specifically to monitor pump output. It can verify that chemical injection has actually occurred and can detect empty chemical tank, clogged injection fitting, lost prime and other problems preventing a metering pump from actually injecting chemical. There are seven different fluid connection available. Please refer to the technical specification datasheet. The flow verification sensor can directly installed to Blue-White peristaltic pump and peristaltic pump model series: FLEXFLO A-100N, CHEM-FEED C-1100, Chem-Pro C2 &C3, Flex-Pro A2, A3 and A4.

Key Features

6 flow range available for selection:

10 = 30- 300 mL/min
20 = 100 -1000 mL/min
30 = 200 - 2000 mL/min
40 = 300 - 3000 mL/min
50 = 500 -5000 mL/min
60 = 700 -7000 mL/min

Five model variations

FS= Sensor mounted display
FP= Panel mounted display (includes 25' cable)
FV= No display, sensor only
FX= No electronic sensor
FA=Analog output. Sensor mounted display

Flow sensor wetted materials

Body, Paddle and axle material: PVDF
O-Ring: Viton or EPDM
Connector material: PVC or PVDF
Viewing lens material: Opaque PVDF
Quick visual inspection with built in status LED light

Process control via configurable solid state relay, which can be configured
6 digital LCD, up to 4 decimal positions
Display both flow rate and total accumulated flow volume
User selectable or custom programmable scale factors
Volumetric field calibration programming system
Weather resistant Valox PBT enclosure

Typical Applications

Flow veriﬁcation
Chemical metering
Fluid metering
Leak detection
Ultra-pure water
Polymer feed

Max Working Pressure	PVC lens 130 psig (9 bar) @ 70°F (21°C) PVDF lens 150 psig (10 bar) @ 70°F (21°C)
Max Fluid Temperature	PVC lens, F/NPT connectors 130°F (54°C) ; @ 0 psig PVDF lens, tubing connectors 200°F (93°C)@ 0 psig
Full Scale Accuracy	+/-6%
Sensor/Paddle/Axel Material	PVDF
Connector Material	F/NPT connection: PVC M/NPT connection: PVC Hose barb connections: PVC Tubing connectors PVDF (3/8'') and Polypro (1/4'')
Viewing Lens Material Options	Clear see through PVC
O-Ring Seals	FKM (Optional EP)
Approx. Shipping Weight	1 lb (0.45 kg)
